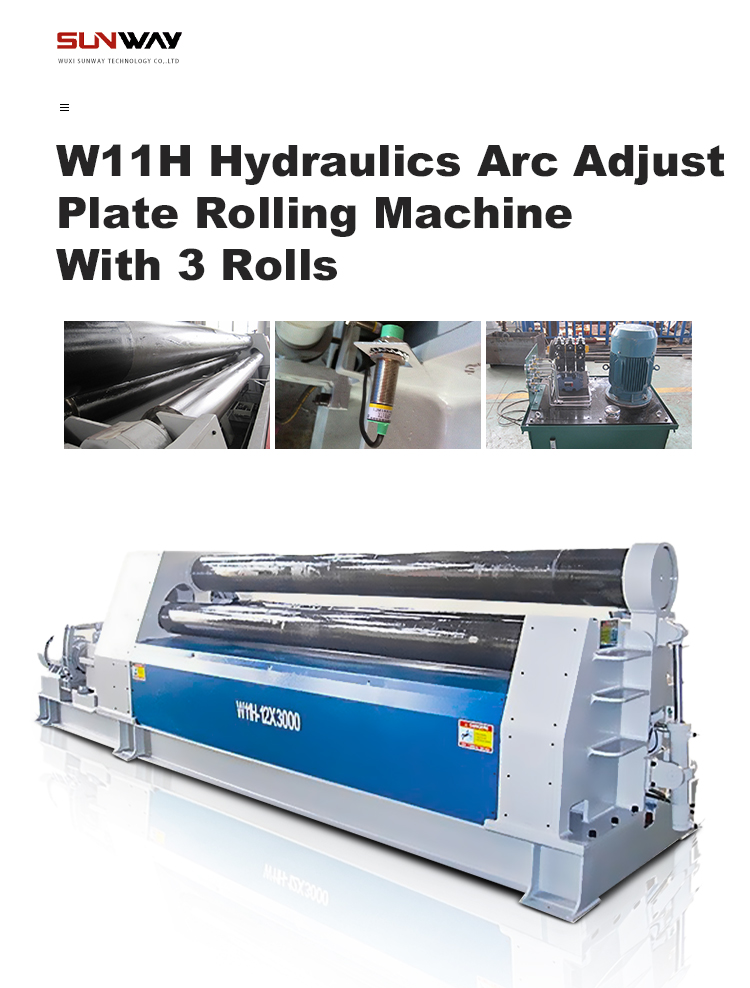

W11H Hydraulics Arc Adjust Plate Rolling Machine With 3 Rolls

Specification
Product Description
Feature
* Electric Motor Makes Top Roller Rise

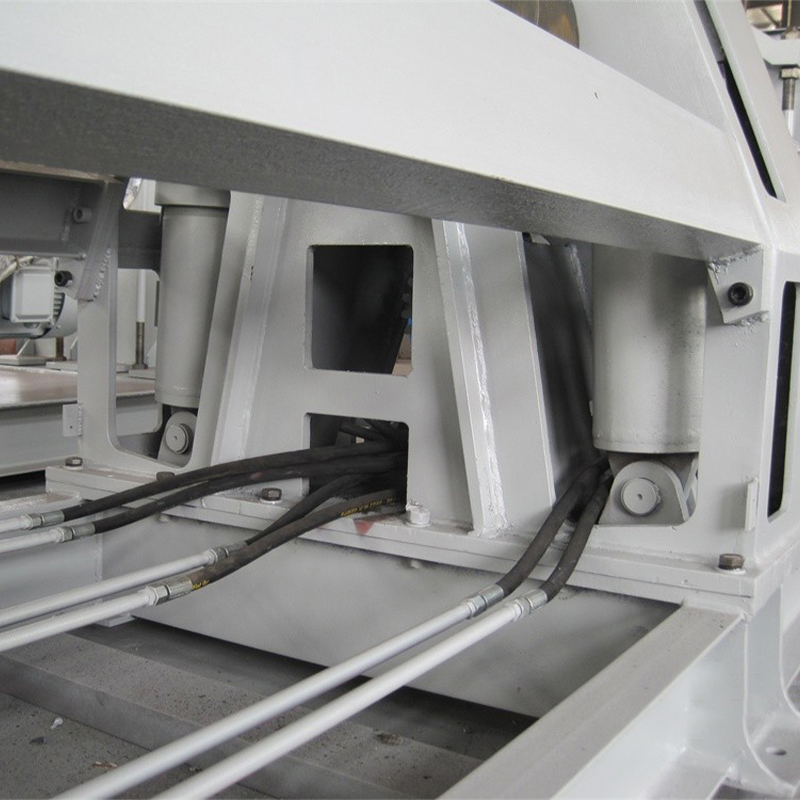

* Bottom Roller Always Moves In Orbital Way With Help Of Hydraulic Pistons
* Hydraulic Drop End Contributes To Remove Work-piece Easily
* High Quality Hardened Rolls

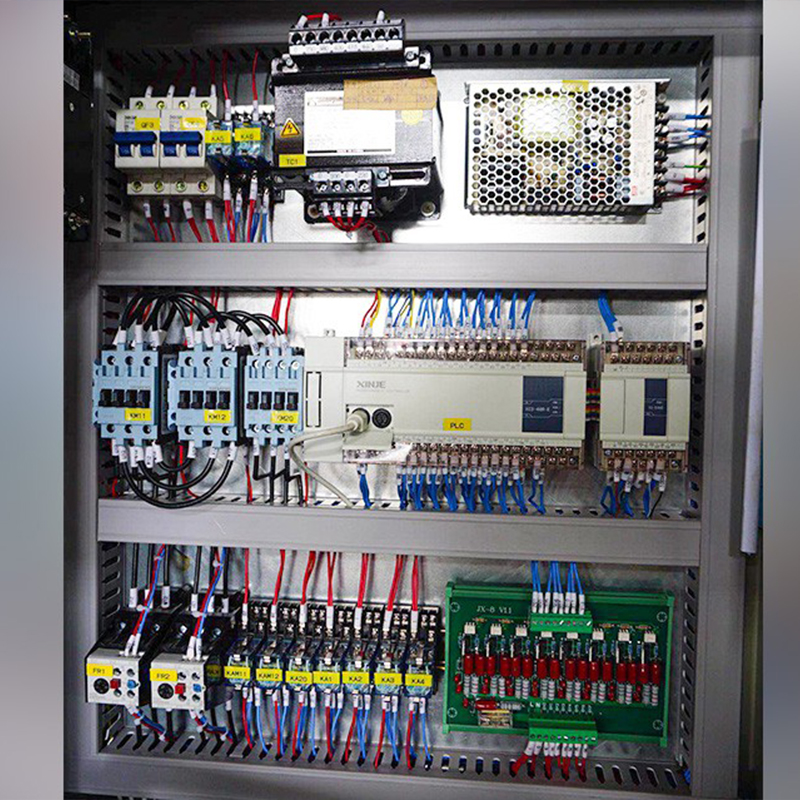

* Useful Movable Control Panel

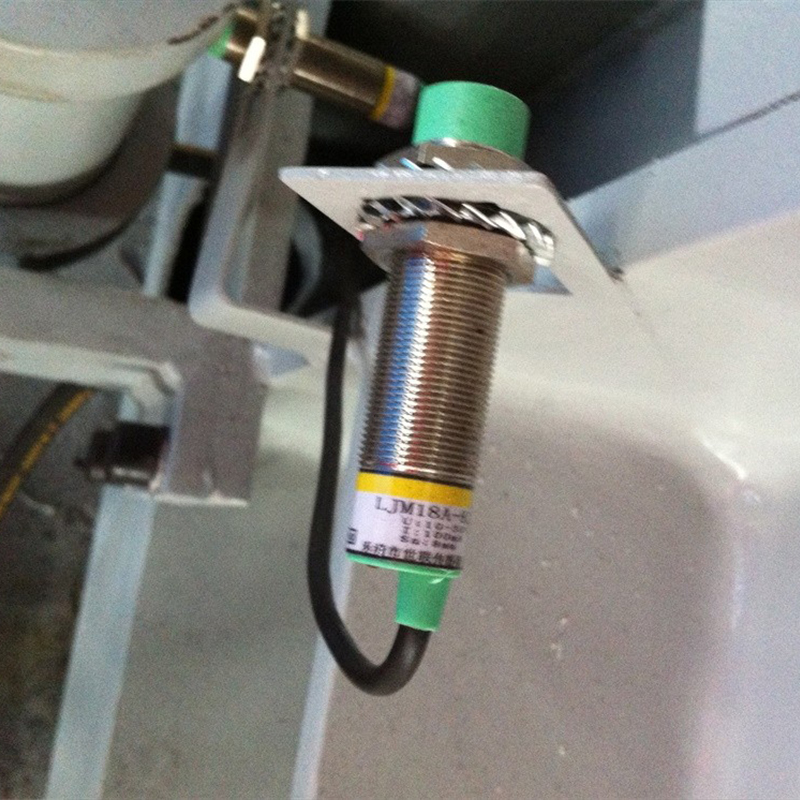

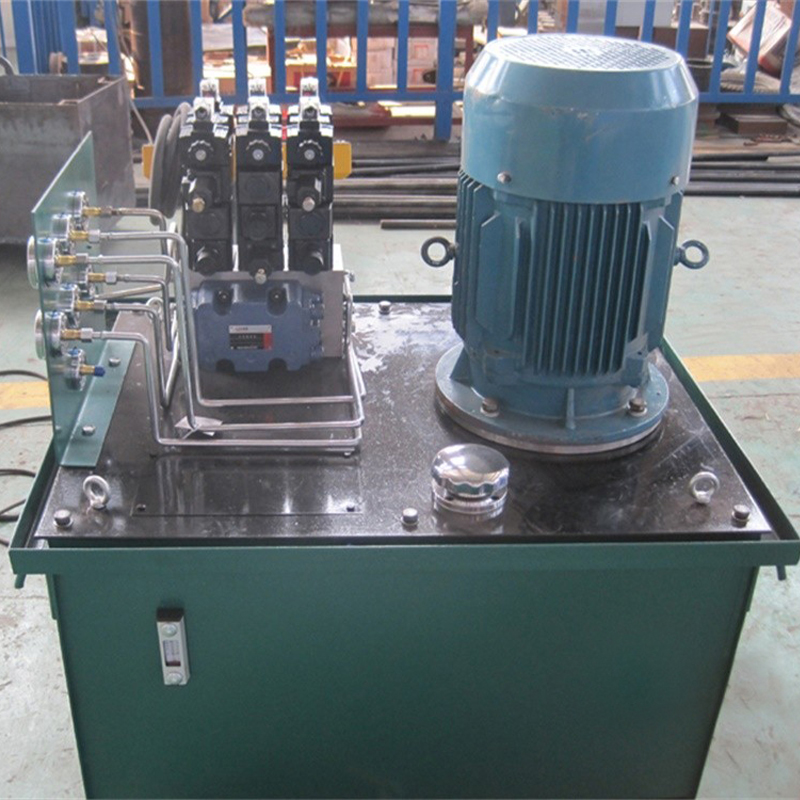

Details Images
Optional Equipment
* Lateral And Top Support Rack
* Ground And Polished Rolls For Special Material
* Safety Cable
* Extended Shafts For Section Bending Dies
Product Paramenters
Model
Max. Bending Thickness(mm)
Pre-bending Thickness(mm)
Max. Bending Width(mm)
Yield Limit(Mpa)
W11H-6x2000
6
5
2000
245
W11H-4x2500
4
3.5
2500
245
W11H-8x2000
8
6.5
2000
245
W11H-6x2500
6
5
2500
245
W11H-10x2000
10
8
2000
245
W11H-8x2500
8
6.5
2500
245
W11H-6x3000
6
5
3000
245
W11H-12x2000
12
10
2000
245
W11H-10x2500
10
8
2500
245
W11H-8x3000
8
6.5
3000
245
W11H-16x2000
16
13
2000
245
W11H-12x2500
12
10
2500
245
W11H-10x3000
10
8
3000
245
W11H-20x2000
20
16
2000
245
W11H-16x2500
16
13
2500
245
W11H-12x3000
12
10
3000
245
W11H-20x2500
20
16
2500
245
W11H-16x3000
16
13
3000
245
W11H-25x2500
25
20
2500
245
W11H-20x3000
20
16
3000
245
W11H-30x2500
30
25
2500
245
W11H-25x3000
25
20
3000
245
W11H-30x3000
30
25
3000
245
Model
Top Roller Diameter(mm)
Bottom Roller Diameter(mm)
Main Power(KW)
W11H-6x2000
160
160
4
W11H-4x2500
160
160
4
W11H-8x2000
190
190
5.5
W11H-6x2500
190
190
5.5
W11H-10x2000
210
210
7.5
W11H-8x2500
210
210
7.5
W11H-6x3000
210
210
7.5
W11H-12x2000
230
230
11
W11H-10x2500
230
230
11
W11H-8x3000
230
230
11
W11H-16x2000
270
270
11
W11H-12x2500
270
270
11
W11H-10x3000
270
270
11
W11H-20x2000
300
300
11
W11H-16x2500
300
300
11
W11H-12x3000
300
300
11
W11H-20x2500
330
330
15
W11H-16x3000
330
330
15
W11H-25x2500
360
360
18.5
W11H-20x3000
360
360
18.5
W11H-30x2500
390
390
22
W11H-25x3000
390
390
22
W11H-30x3000
420
420
30
