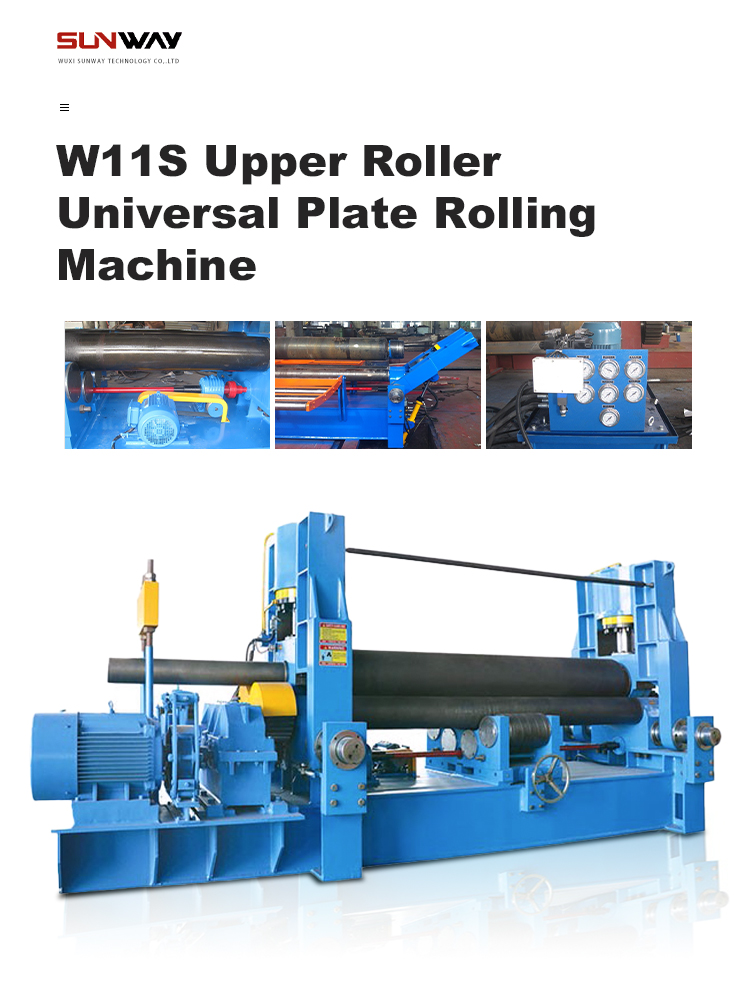

W11S Upper Roller Universal Plate Rolling Machine

Specification
Product Description

3 rolls hydraulic plate bending machine with double pre-bending. The useful length of this machine is from

1000mm to 10000mm. The range of thickness is from 2 to 200mm.

Feature
1.Cone bending device contributes to make conical bend easily. 2.Abundant shape bend like shape O,U,R etc.

3.Specific bending process includes special bending craft, high-accuracy prebending of the edge,simple

digital control.

4.It’s easy and convenient to move the workplace when equipped with simple ground foundation and whole

solid chassis.

5.Customers can choose economic digital display type or TNC digital control type which’s totally dependent

on their needs.

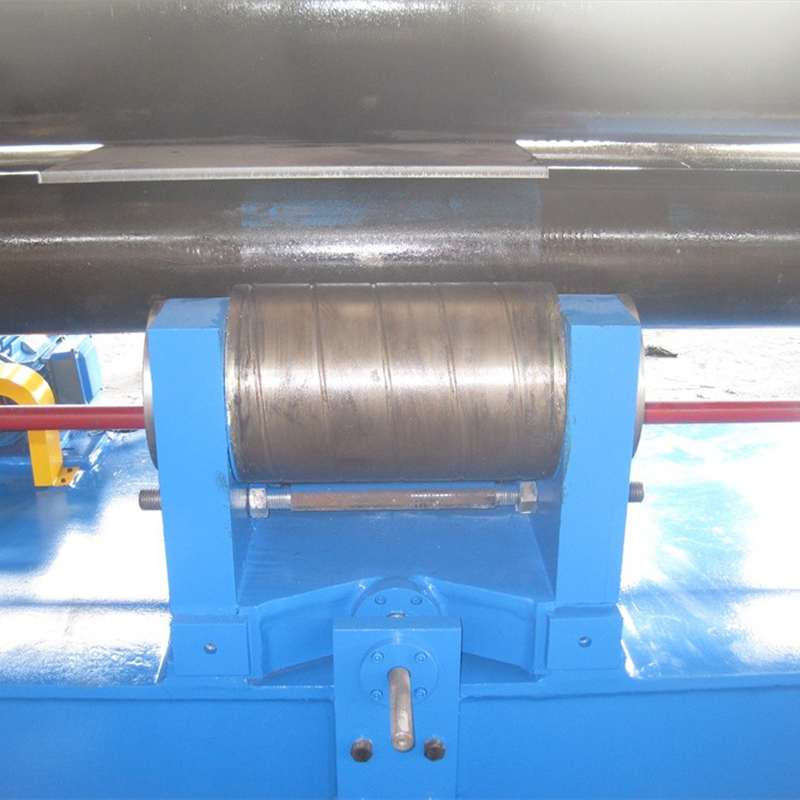

6.The top roller is designed as drum shape. In order to make a perfect cylinder from thin plate to thick plate,

support roller is always installed at the lower part of bottom roller.

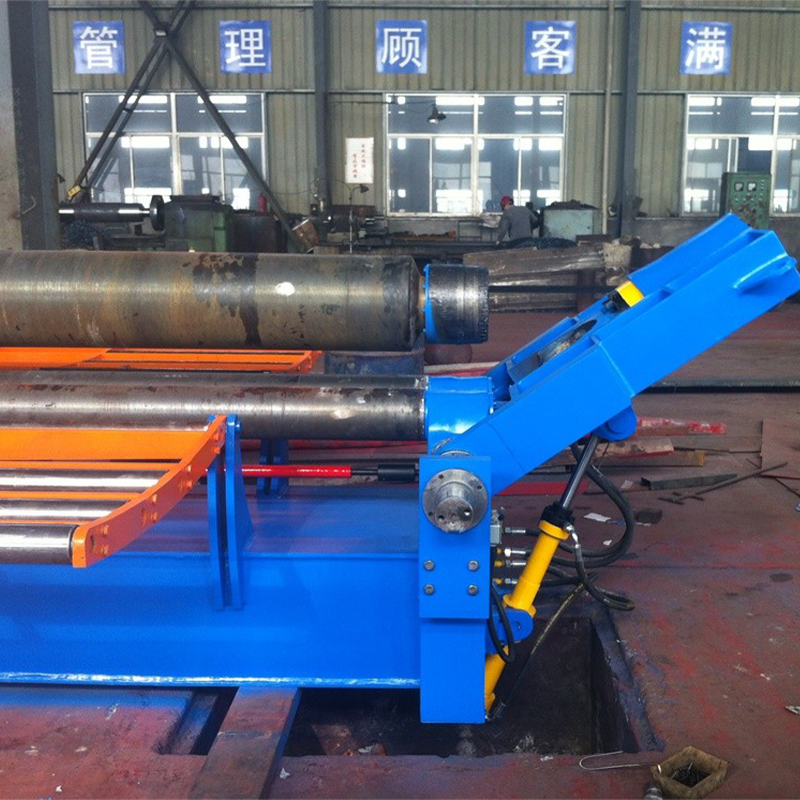

Details Images
Standard Components
* Solid rolls made by 42CrMo
* PLC control
* Siemens electric parts
* Movable control panel
* Remote control
Optional Equipment
* Machine cover
* Cone bending device
* Top support rack for big diameter
* Lateral support rack for big diameter
Product Paramenters
Model
Pressure Of Top Roller(T)
Max. Bending Thickness(mm)
Pre-bending Thickness(mm)
Max. Bending Width(mm)
W11S-4x2500
25
4
3.5
2500
W11S-6x2500
30
6
5
2500
W11S-8x2000
37
8
6.5
2000
W11S-8x2500
37
8
6.5
2500
W11S-10x2000
37
10
8
2000
W11S-10x2500
55
10
8
2500
W11S-12x2000
65
12
10
2000
W11S-12x2500
75
12
10
2500
W11S-12x3000
75
12
10
3000
W11S-16x2000
75
16
13
2000
W11S-16x2500
100
16
13
2500
W11S-16x3000
130
16
13
3000
W11S-20x2000
100
20
16
2000
W11S-20x2500
130
20
16
2500
W11S-20x3000
160
20
16
3000
W11S-20x4000
230
20
16
4000
W11S-25x2500
190
25
20
2500
W11S-25x3000
230
25
20
3000
W11S-25x4000
270
25
20
4000
W11S-30x2500
230
30
25
2500
W11S-30x3000
270
30
25
3000
W11S-30x4000
380
30
25
4000
W11S-35x2500
320
35
28
2500
W11S-35x3000
380
35
28
3000
W11S-40x2500
380
40
32
2500
W11S-40x3000
430
40
32
3000
W11S-40x4000
540
40
32
4000
W11S-45x3000
540
45
36
3000
4W11S-50x2500
430
50
40
2500
Model
Top Roller Diameter (mm)
Bottom Roller Diameter(mm)
Central Distance (mm)
Main motor(KW)
Drive
Hydraulic
Movement
W11S-4x2500
200
125
160
4
2.2
1.1
W11S-6x2500
210
125
160
4
2.2
1.1
W11S-8x2000
210
135
180
4
2.2
1.1
W11S-8x2500
235
135
180
5.5
2.2
1.1
W11S-10x2000
235
135
180
5.5
2.2
1.1
W11S-10x2500
250
145
200
7.5
4
1.1
W11S-12x2000
250
145
200
7.5
4
1.1
W11S-12x2500
265
145
200
7.5
4
1.5
W11S-12x3000
290
150
245
11
4
1.5
W11S-16x2000
265
150
245
7.5
4
1.5
W11S-16x2500
300
165
270
15
5.5
1.5
W11S-16x3000
330
180
300
15
5.5
2.2
W11S-20x2000
300
165
270
15
5.5
1.5
W11S-20x2500
330
180
300
15
5.5
2.2
W11S-20x3000
380
200
330
18.5
7.5
2.2
W11S-20x4000
440
235
380
30
11
4
W11S-25x2500
380
220
360
22
7.5
4
W11S-25x3000
410
235
380
30
11
4
W11S-25x4000
490
250
400
30
11
4
W11S-30x2500
410
235
380
30
11
4
W11S-30x3000
450
250
400
30
11
4
W11S-30x4000
550
275
460
45
22
5.5
W11S-35x2500
450
250
400
30
11
4
W11S-35x3000
510
275
460
45
22
5.5
W11S-40x2500
500
275
460
45
22
5.5
W11S-40x3000
540
290
500
55
22
7.5
W11S-40x4000
630
340
610
55
22
11
W11S-45x3000
590
340
610
55
22
11
W11S-50x2500
580
290
500
55
22
7.5
