W12 Hydraulics Plate Rolling Machine With 4 Rolls

Email: E-mail:sales@wuxisunway.com

Tel: +86-510-83209229

Whatsapp: +86-13616182007

Specification
Product Description
4 Rolls Hydraulic Plate Bending Machine With Double Pre-Bending
* The useful length of 4 rolls plate bending machine is from 1000mm to 6000mm.
* The range of thickness is from 2 to 100mm.

* As to plate,it can be bent on both sides without return with help of four rolls plate bending machine.It also

can be realized by PLC for full automatic control.Moreover,there is no extra processing steps for bending

the ends.The flat edge is about 1.5-2 times of the thickness.

Feature

1. Lateral rolls and pinch roll always move in orbital way with help of hydraulic pistons.

2. With hydraulic drop end,it’s convenient and easy to remove finished ferrule.

3. Hydro-motor provides power for top roll.

4. High quality welded steel frame.

5. Good rigidity induction hardened rolls(42CrMo).

6. Easily control hydraulic balance system.

7. Reliable and safety overload protection.
Details Images
Standard Components

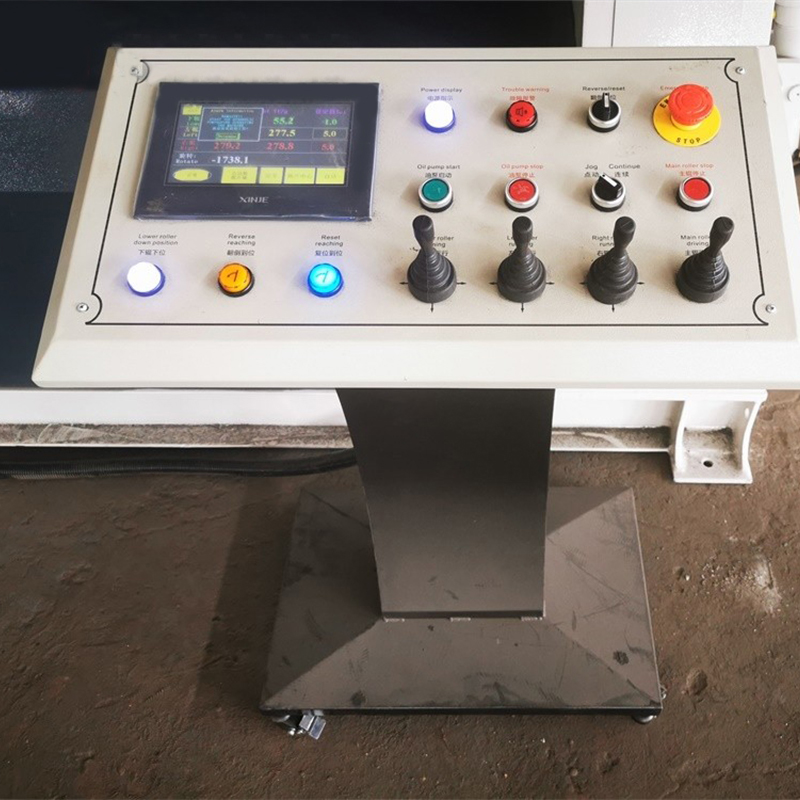

* Movable Control Panel
* Hardened Rolls
* Digital Read Out For Both Rolls

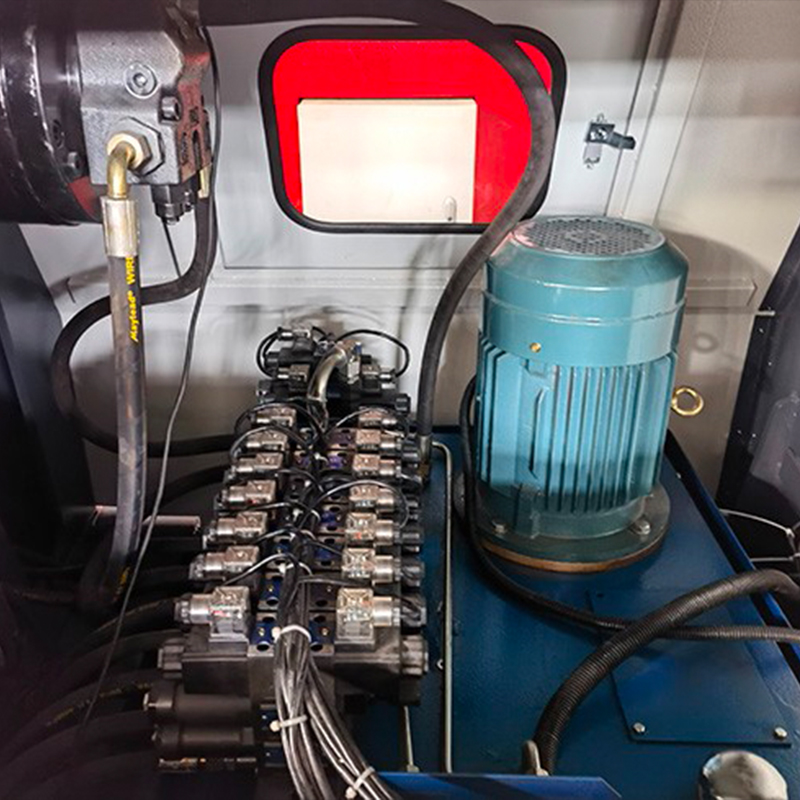

* Hydraulic Station

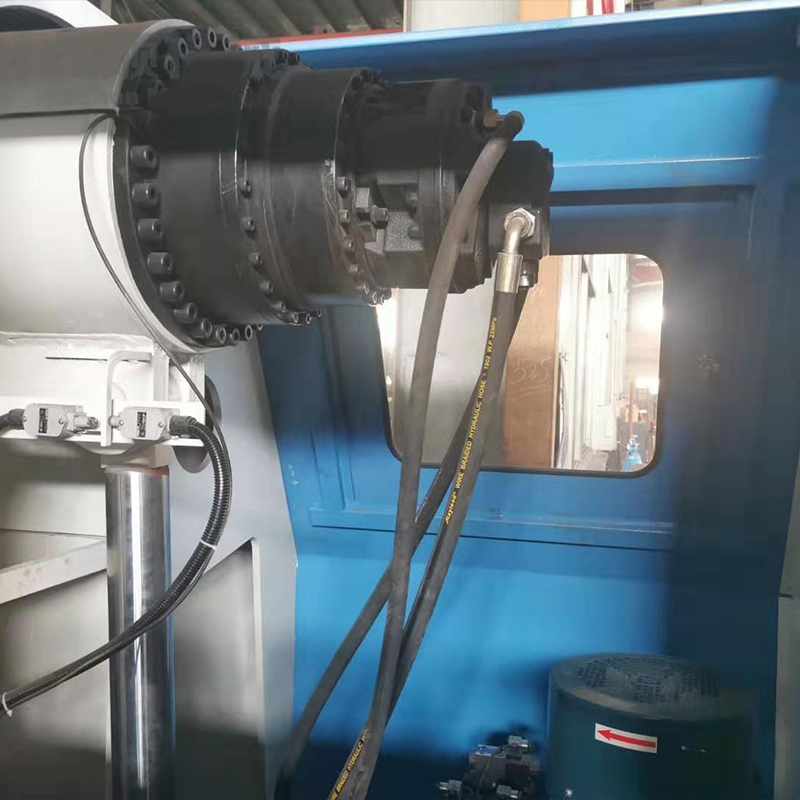

* Hydraulic Motor

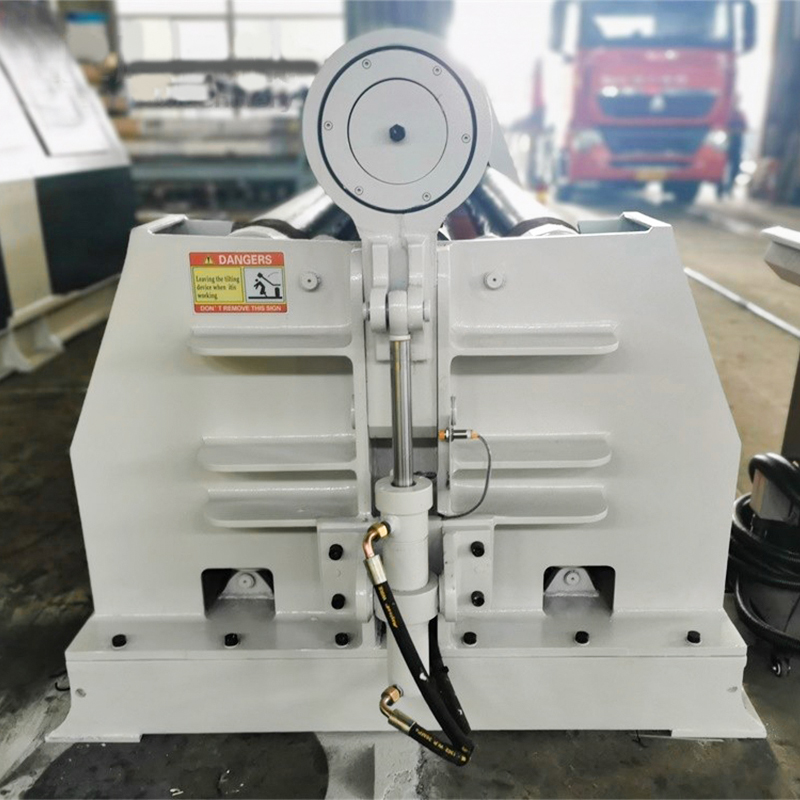

* Hydraulic Drop End
* Cone Bending Device
Optional Equipment
* Top And Lateral Support Rack For Big Diameter
* Ground And Polished Rolls For Special Job
* Safety Cable
* Fan Cooled Or Water Cooled
Product Paramenters
Model
Max. Bending Thickness(mm)
Pre-bending Thickness(mm)
Max. Working Length of Rolls(mm)
Yield Limit (Mpa)
W12-4x2000
4
3.5
2050
245
W12-6x2000
6
5
2050
245
W12-8x2000
8
6.5
2050
245
W12-10x2000
10
8
2050
245
W12-12x2000
12
10
2050
245
W12-16x2000
16
13
2050
245
W12-20x2000
20
16
2050
245
W12-25x2000
25
20
2050
245
W12-30x2000
30
25
2050
245
W12-35x2000
35
28
2050
245
W12-40x2000
40
32
2050
245
W12-45x2000
45
36
2050
245
W12-50x2000
50
40
2050
245
W12-4x2500
4
3.5
2550
245
W12-6x2500
6
5
2550
245
W12-8x2500
8
6.5
2550
245
W12-10x2500
10
8
2550
245
W12-12x2500
12
10
2550
245
W12-16x2500
16
13
2550
245
W12-20x2500
20
16
2550
245
W12-25x2500
25
20
2550
245
W12-30x2500
30
25
2550
245
W12-35x2500
35
28
2550
245
W12-40x2500
40
32
2550
245
W12-45x2500
45
36
2550
245
W12-4x3000
4
3.5
3100
245
W12-6x3000
6
5
3100
245
W12-8x3000
8
6.5
3100
245
W12-10x3000
10
8
3100
245
W12-12x3000
12
10
3100
245
W12-16x3000
16
13
3100
245
W12-20x3000
20
16
3100
245
W12-25x3000
25
20
3100
245
W12-30x3000
30
25
3100
245
W12-35x3000
35
28
3100
245
W12-40x3000
40
32
3100
245
W12-50x3000
50
40
3100
245
W12-60x3000
60
48
3100
245
Model
Top Roller Diameter(mm)
Lower Roller Diameter(mm)
Side Roller Diameter(mm)
Main Power(KW)
W12-4x2000
160
140
120
3
W12-6x2000
190
170
150
4
W12-8x2000
210
190
170
5.5
W12-10x2000
230
210
190
7.5
W12-12x2000
270
250
210
11
W12-16x2000
300
270
220
11
W12-20x2000
330
300
240
11
W12-25x2000
360
330
250
15
W12-30x2000
390
360
300
18.5
W12-35x2000
430
390
330
22
W12-40x2000
460
420
360
30
W12-45x2000
510
460
390
37
W12-50x2000
550
510
420
45
W12-4x2500
190
170
150
4
W12-6x2500
210
190
170
5.5
W12-8x2500
230
210
190
7.5
W12-10x2500
270
250
210
11
W12-12x2500
300
270
220
11
W12-16x2500
330
300
240
11
W12-20x2500
360
330
250
15
W12-25x2500
390
360
300
18.5
W12-30x2500
430
390
330
22
W12-35x2500
460
420
360
30
W12-40x2500
510
460
390
37
W12-45x2500
550
510
420
45
W12-4x3000
210
190
170
5.5
W12-6x3000
230
210
190
7.5
W12-8x3000
270
250
210
11
W12-10x3000
300
270
220
11
W12-12x3000
330
300
240
11
W12-16x3000
360
330
250
15
W12-20x3000
390
360
300
18.5
W12-25x3000
430
390
330
22
W12-30x3000
460
420
360
30
W12-35x3000
510
460
390
37
W12-40x3000
550
510
420
45
W12-50x3000
610
560
480
55
W12-60x3000
670
620
520
75
Company Profile

WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design,

development and production of cold roll forming machines. All products comply with international quality standards and are

greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and

Australia and so on. It has gained a global sales network.


Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good

quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is

specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for

roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications, slitting

machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are widely used

in Photovoltaic field.


SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In accordance with High

Quality Assurance and Valued Credibility, we provide customers high qualified and reliable products with complete after-sales

service. Our company is looking forward to establishing successful and long-term business relationships with all clients

around the world in the near future.

FAQ
Q: Are you a manufacturer or trading company?

A:We are factory with professional production team and service consciousness just for exporting various types of roll

forming machine.


Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.

Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.

Q: What can you do if the machine broken?

A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will

send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we

will sell them at cost.


Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.

Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
