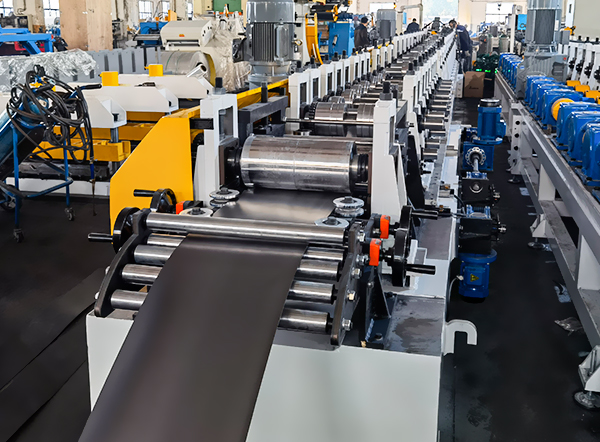

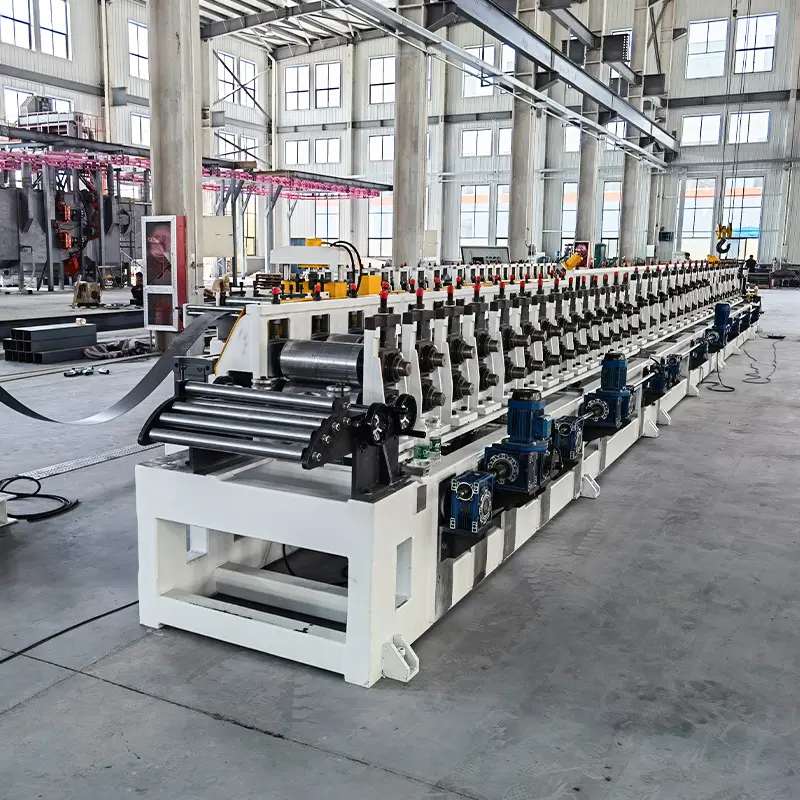

Warehouse Shelf Upright Roll Forming Machine

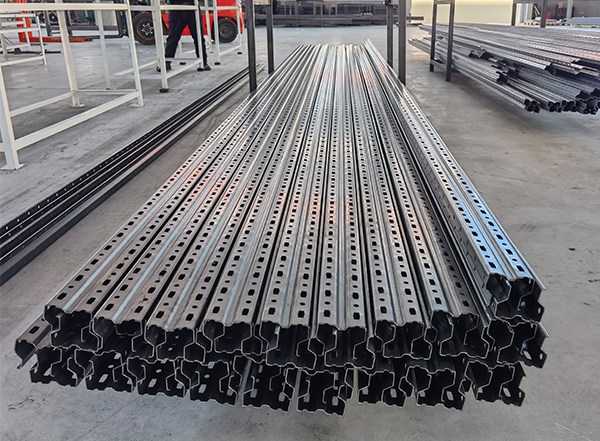

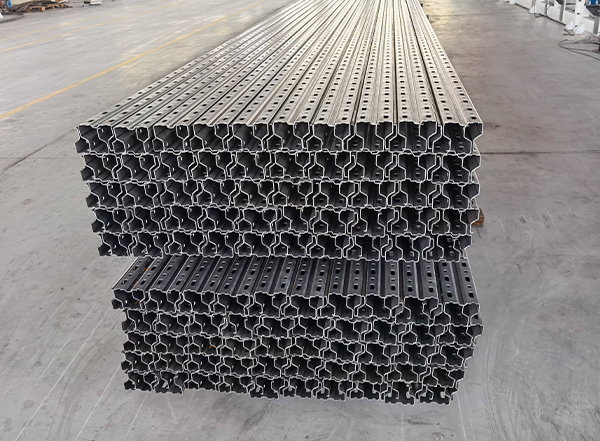

Warehouse shelf upright roll forming machine also named Pallet Racking Roll Forming Machine (s) is

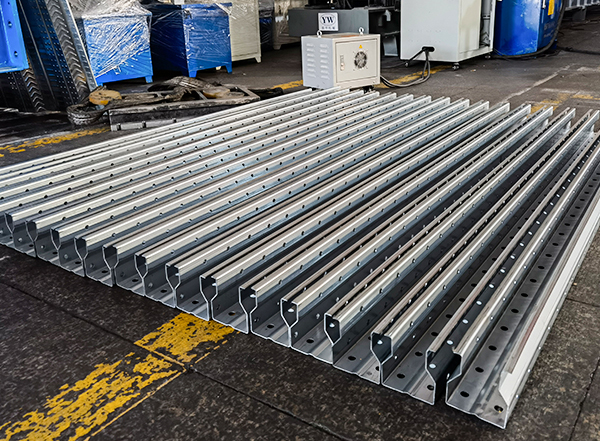

developed to produce upright frame / upright racks.
Our intelligent roll forming machine could make various sizes of upright with thickness 1.5-3.0mm.

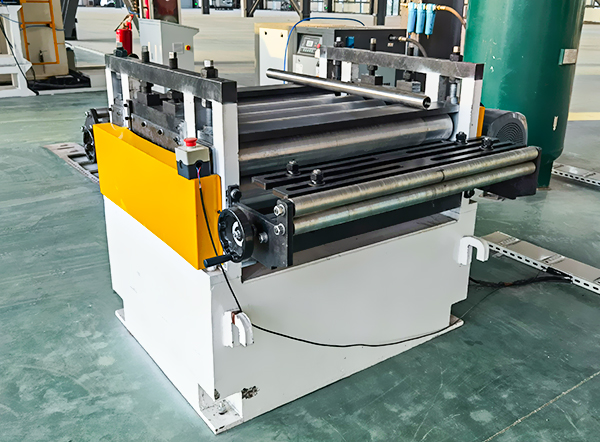

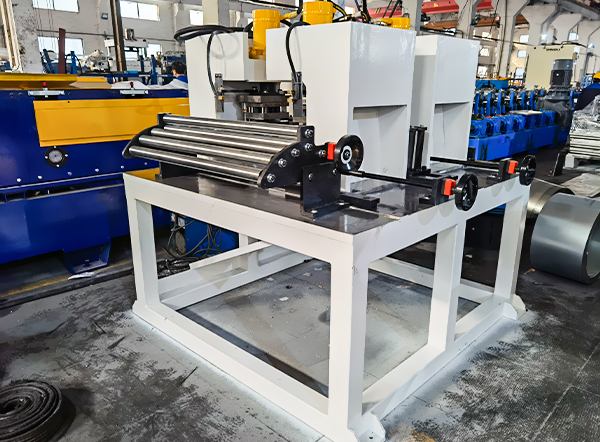

Uncoiling, servo feeding, punching, roll forming, cutting etc process can be automatically realized on one
line. Meantime, we have the roll forming machine to make box beam, step beam and shelf panels. All these
are components of Pallet racking system.

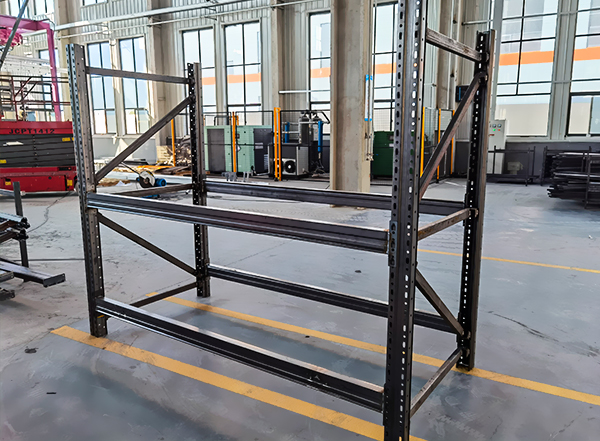

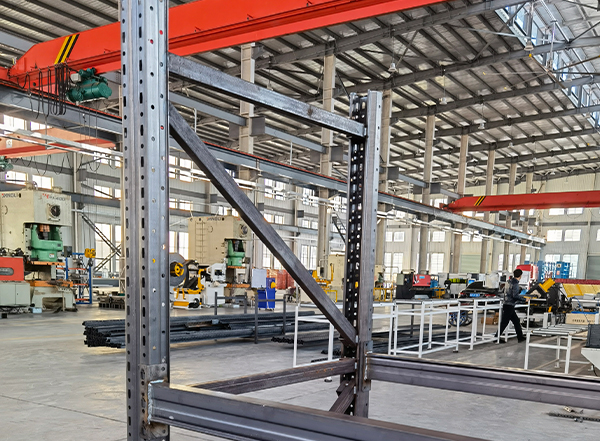

Pallet Racking is a cost effective solution for storing palletized goods. Consisting of separate frames and
beams that are available in a huge range of sizes, and secured with locking pins, Pallet Racking is easily
configured to your needs whether led by pallet size or forklift type.
In warehouse pallet racking system, we are able to manufacture more machines like Box beam roll forming
machine, step beam roll forming machine and shelf panel (box plate) roll forming machine etc.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional
one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY
Machinery will ensure you obtain perfectly functional profiles.
Warehouse Shelf Upright Roll Forming Machine | ||
Machinable Material | A) Galvanized Steel | Thickness(MM): 1.5-3.0 as per customer |
B) Stainless Steel | ||
Yield Strength | 250 - 550 Mpa | |
Tensil Stress | G250 Mpa-G550 Mpa | |

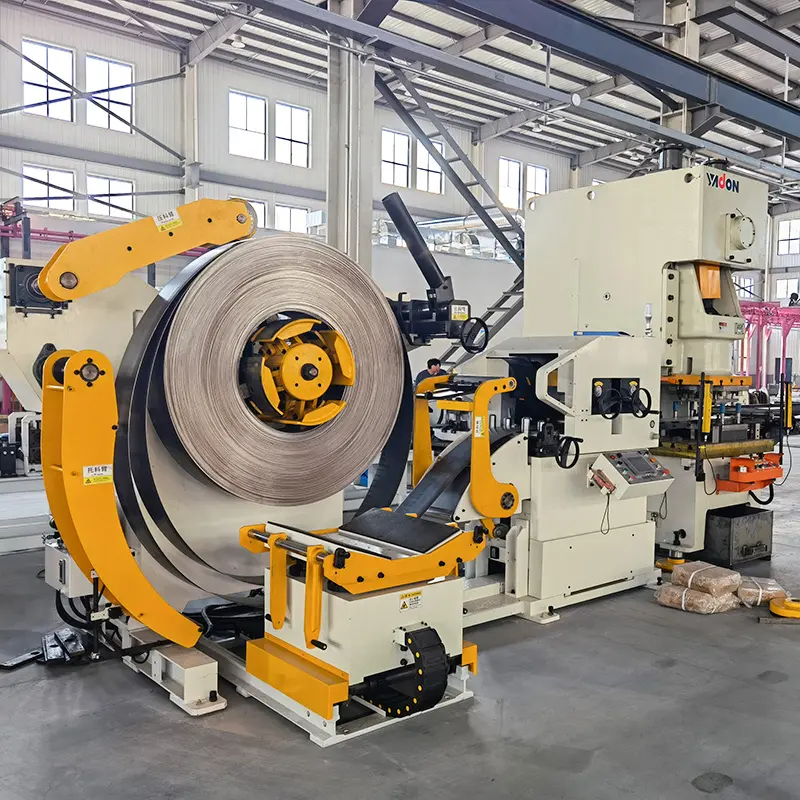

Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) |

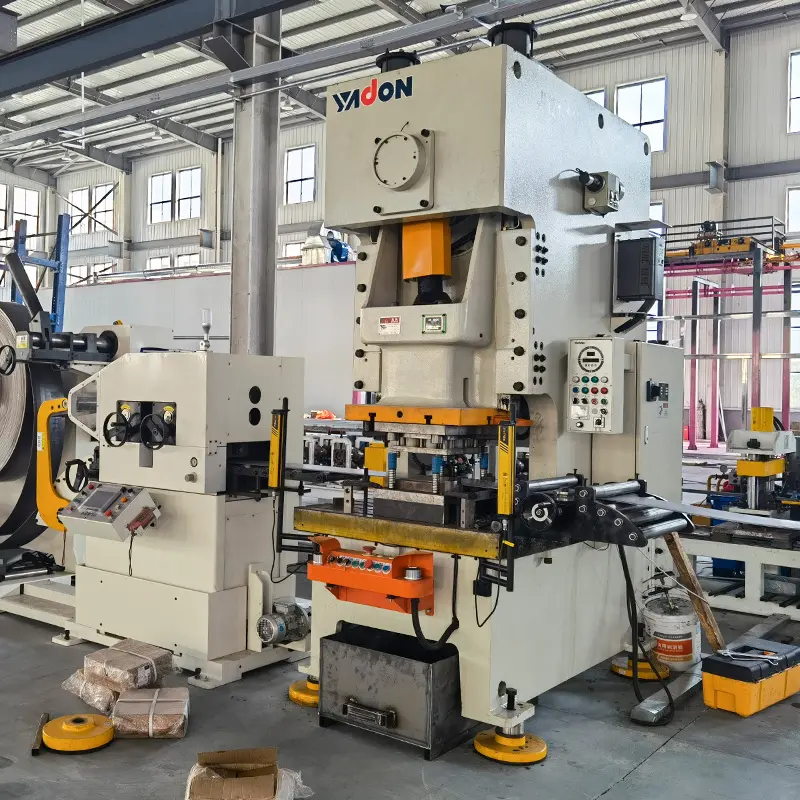

Punching System | Hydraulic Punching Station | * Punching Press (Optional) |

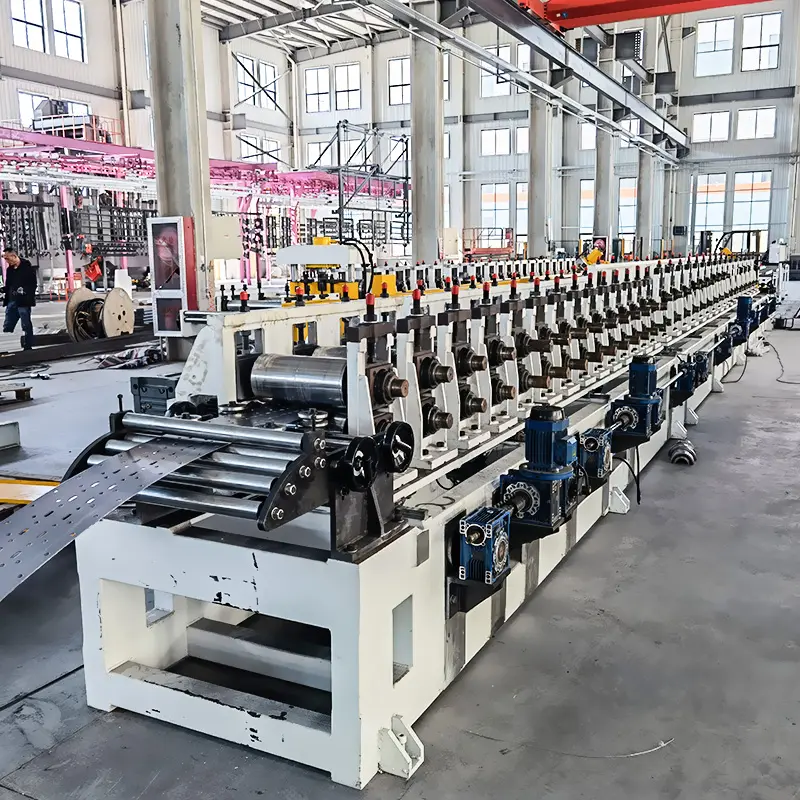

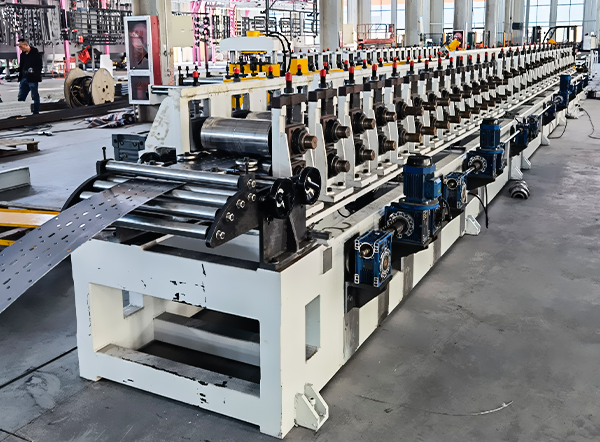

Forming Station | About 25 Stands | * According To Your Profile Drawings |
Driving System | Chain Drive | * Gearbox Drive (Optional) |
Machine Structure | Wall Panel Station | * Cast Iron Stands (Optional) |
Forming Speed | 5-15 (M/MIN) | * Or According To Your Profile Drawings |
Rollers’ Material | GCr 15 | * Cr12 (Optional) |

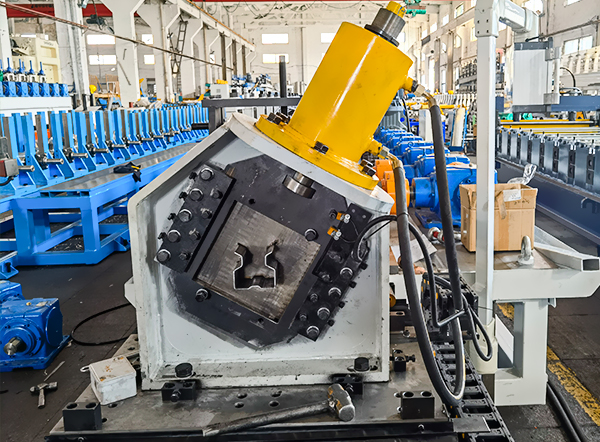

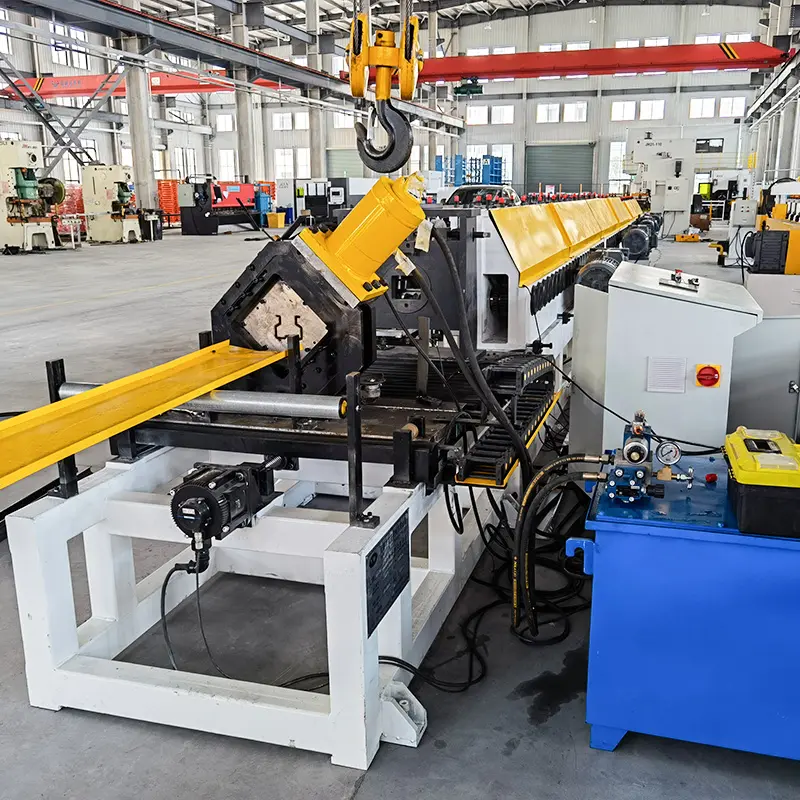

Cutting System | Hydraulic Cutting | * Saw Cutting (Optional) |
Frequency Changer Brand | Yaskawa | * Siemens (Optional) |
PLC Brand | Panasonic | * Siemens (Optional) |
Power Supply | 380V 50Hz 3ph | * Or According To Your Requirment |
Machine Color | Industrial Blue | * Or According To Your Requirment |
WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design,
development and production of cold roll forming machines. All products comply with international quality standards and are
greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and
Australia and so on. It has gained a global sales network.
Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good
quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is
specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for
roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications, slitting
machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are widely used
in Photovoltaic field.
SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In accordance with High
Quality Assurance and Valued Credibility, we provide customers high qualified and reliable products with complete after-sales
service. Our company is looking forward to establishing successful and long-term business relationships with all clients
around the world in the near future.
A:We are factory with professional production team and service consciousness just for exporting various types of roll
forming machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will
send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we
will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV
assessment and CE certificate.
Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.
Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
