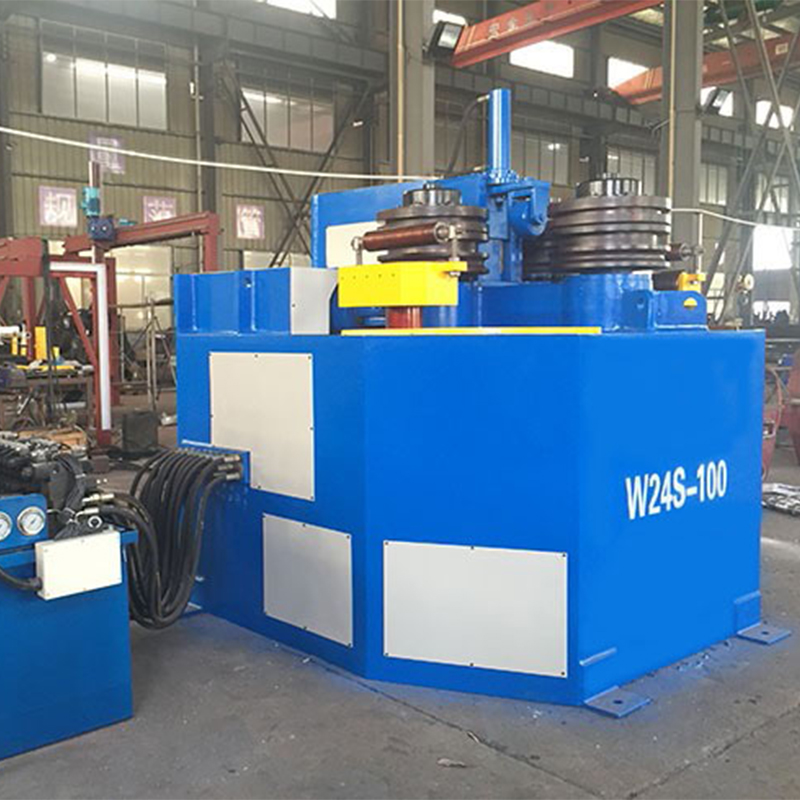

W24S Full Hydraulics Profile Bending Machine

Specification

Product Description

Details Images
Specification

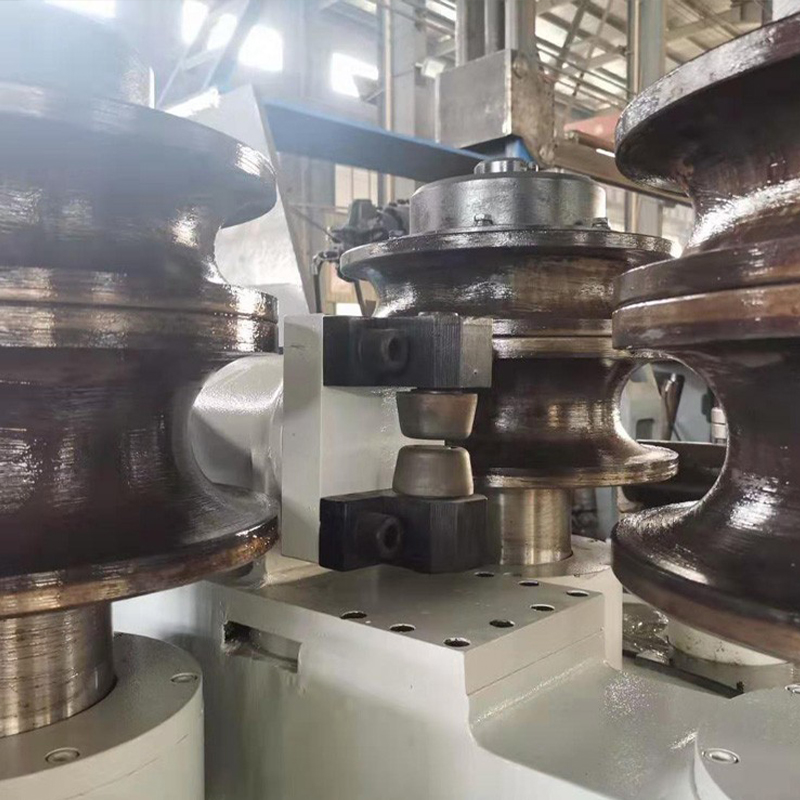

* 1 set of high-grade standard solid and ground rolls (special steel)
* Hydro motor drives all rolls and planetary/gear

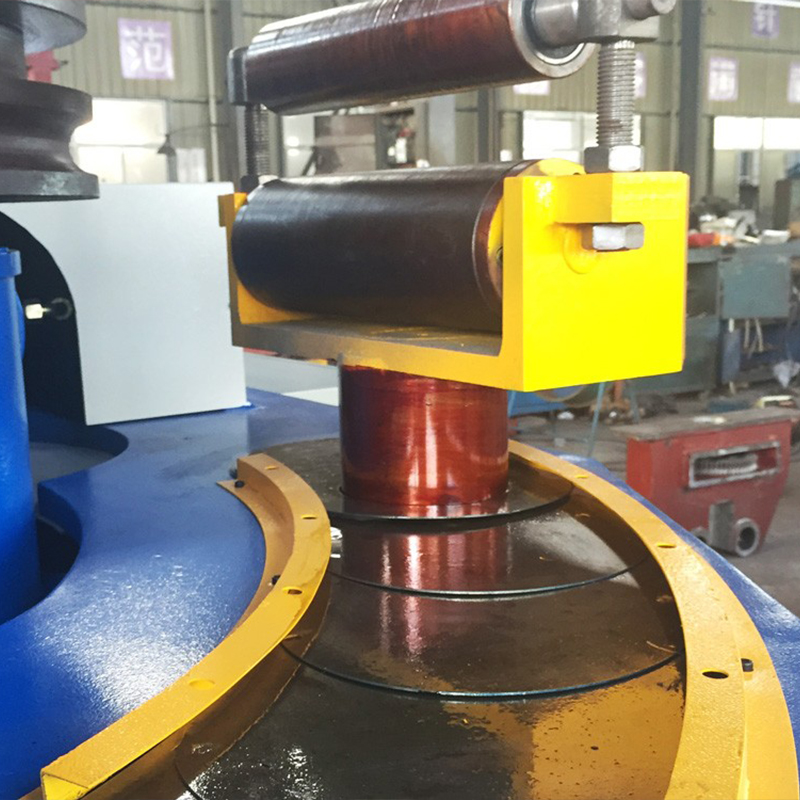

* Side support rollers are used to bend angle iron,leg in-leg out

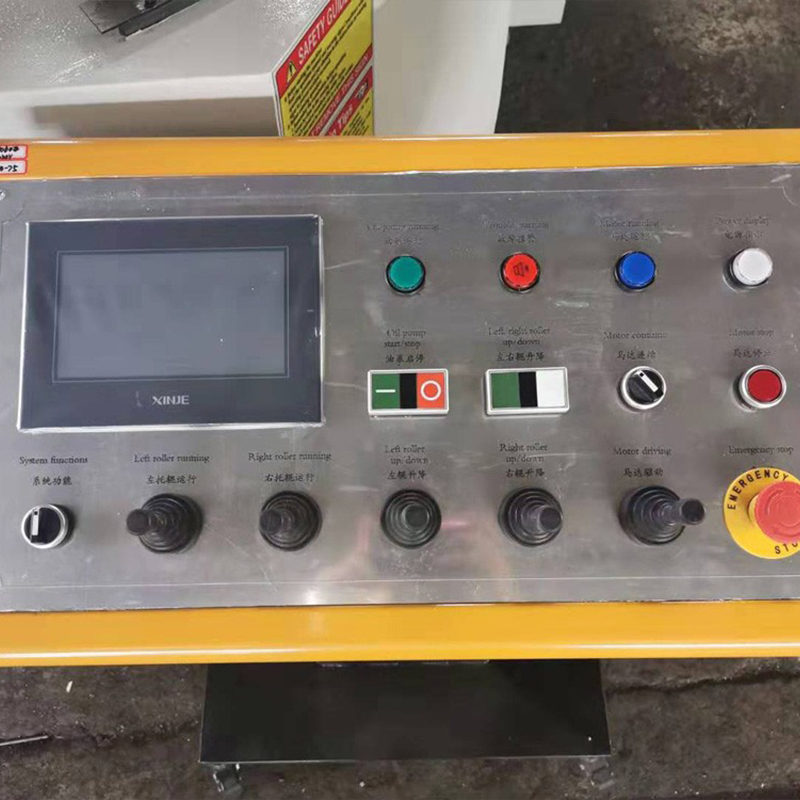

* Convenient and simple portable control panel
* Customer can select horizontal or vertical operation
* Machine body is made up of stress-relieved steel
* Reliable and safe overload protection is set in hydraulic and electrical systems
* Bottom rolls can be hydraulically adjusted with digital readout
Optional Equipment:Pipe,tube and profile bending dies
Product Paramenters
Technical Data
W24S(WY24-)
Max. Bending Resistant Modulus
6
16
30
45
75
100
Bending Speed
6
5
Yield Limit
S=245Mpa
Angle Inner Bending
Max Section Size
40x5
70x8
80x8
90x10
100x10
120x12
Angle Outer Bending
Max Section Size
50x5
80x8
90x10
100
120x12
140x16
Channel Outer Bending
Channel Size
8
12
16
20
25
28
Channel Inner Bending
Channel Size
8
12
16
20
25
28
Plate Flat Bending
Max Section Size
100x18
150x25
180x25
200x30
220x40
250x40
Plate Vertical Bending
Max Section Dia
50x12
75x16
90x20
100x25
110x40
120x40
Tube Bending
Max Section Size
42x4
76x4.5
89x5
89x8
114x5
159x5
Rod Bending
Max Section Size
38
52
62
75
85
90
Square Bending
Max Section Size
45x3
60x4
70x4
98x6
90x8
100x10
Technical Data
W24S(WY24-)
Max. Bending Resistant Modulus
140
180
260
320
400
500
Bending Speed
4
Yield Limit
S=245Mpa
Angle Inner Bending
Max Section Size
140x16
150x16
160x16
180x14
200x18
200x20
Angle Outer Bending
Max Section Size
150x16
160x16
180x14
200x18
200x24
250x25
Channel Outer Bending
Channel Size
30
32
36
40
45
50
Channel Inner Bending
Channel Size
30
32
36
40
45
50
Plate Flat Bending
Max Section Size
280x50
300x50
330x50
360x60
400x75
500x76
Plate Vertical Bending
Max Section Dia
150x40
180x30
190x40
190x50
200x50
200x60
Tube Bending
Max Section Size
168x6
168x8
219x8
245x8
273x8
323x10
Rod Bending
Max Section Size
100
110
120
135
150
160
Square Bending
Max Section Size
125x10
140x10
150x10
165x10
180x12
200x12
