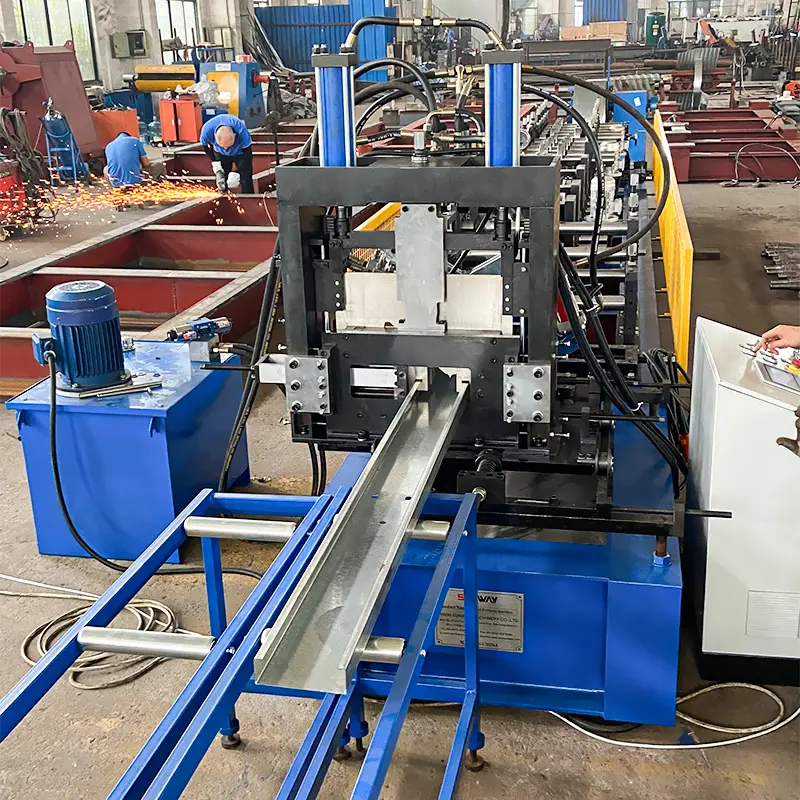

This C/U Purlin Roll Forming Machine is used to produce C shape and U shape purlins from 80-300mm of width,

normally its material thickness is 1.5-3mm, also Maximum thickness can be formed at 4.0-6.0mm according to customer

requirement.

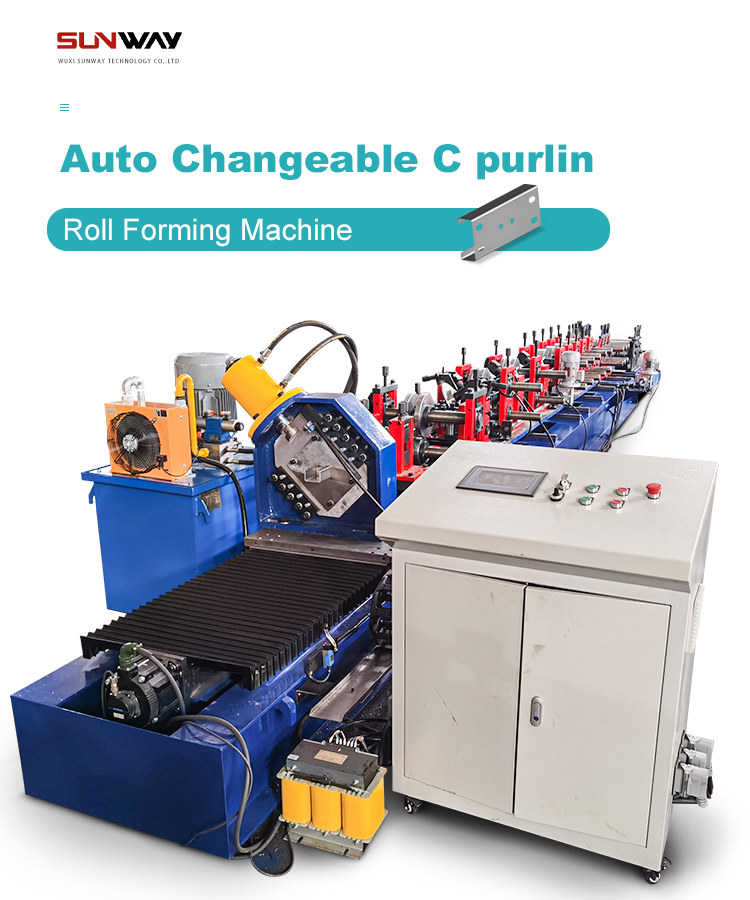

       SUNWAY design this machine to work with any size of the purlin, automatically adjustable sizes by PLC or manually

adjust handle wheel to change the sheet width to get different width and height. This is much more easily than adjust the

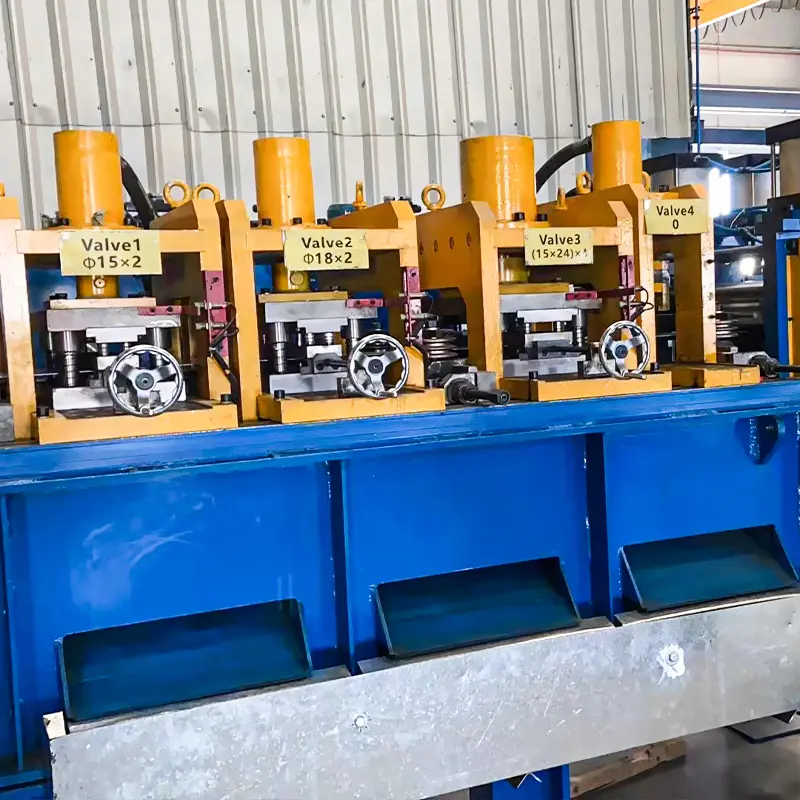

spacers and can save more time. Regarding the punching unit, we can design pre punching ， post punching according to

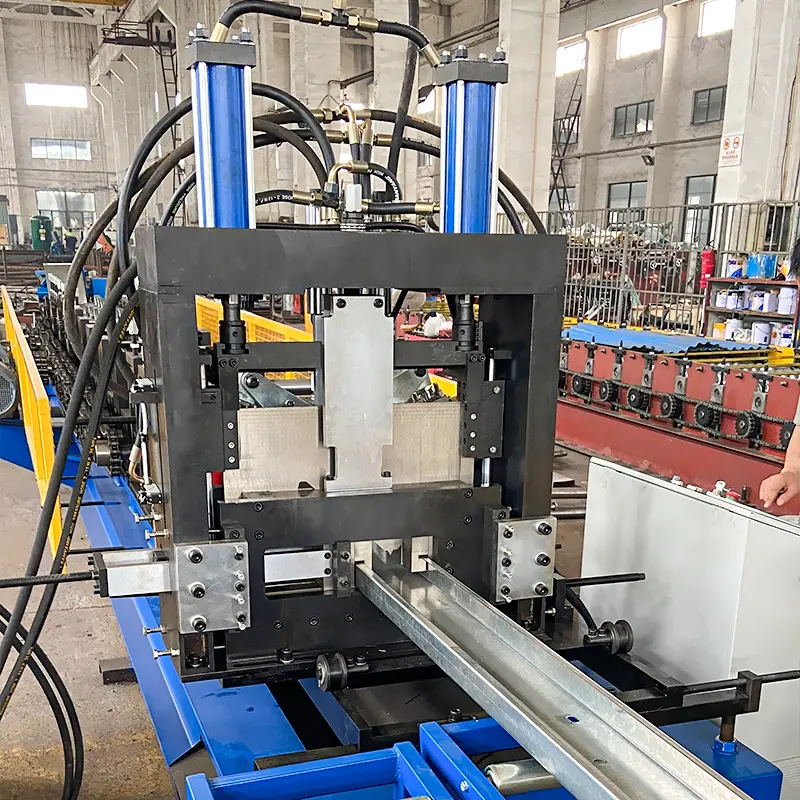

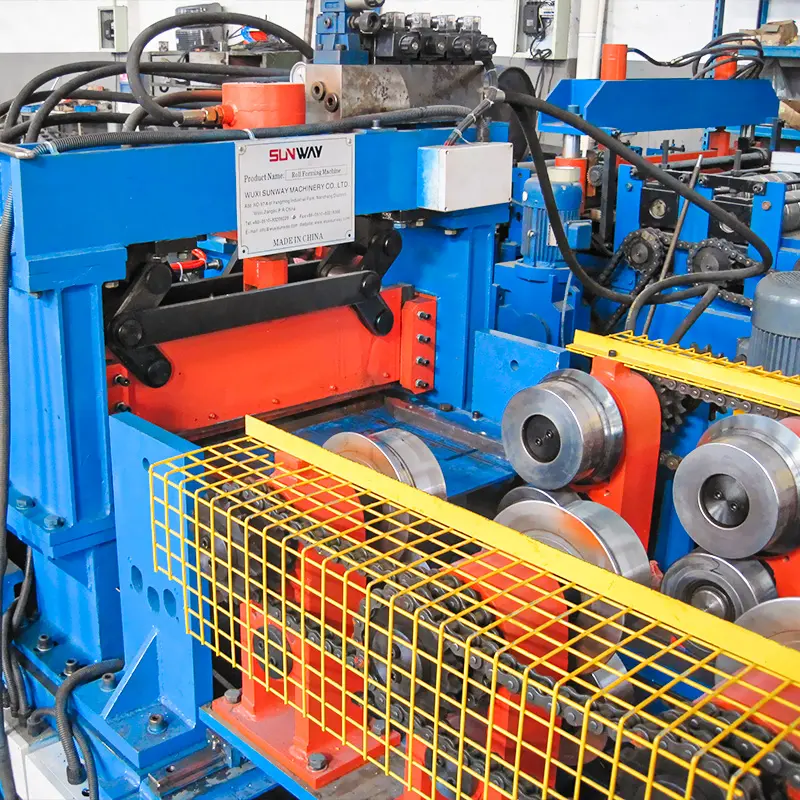

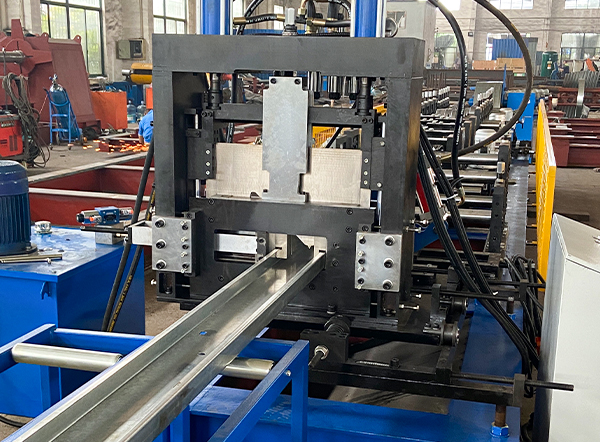

your requirement. For cutting unit, you can choose the pre-cut or post-cut which is universal cutting. The driving system we

adopt the chain and mostly with gimbal /gearbox for transmission if the raw material is thicker than 2.5mm,this is much more

strong driving power and more stable when forming the purlins.

       Purlin roll forming machine is the most popular and has an extensive use in Metal Building Systems, Huge Roofing

Solutions, Construction and Renovation Projects etc. Our Purlin roll forming machine could produce C purlin, U purlin, Z purlin,

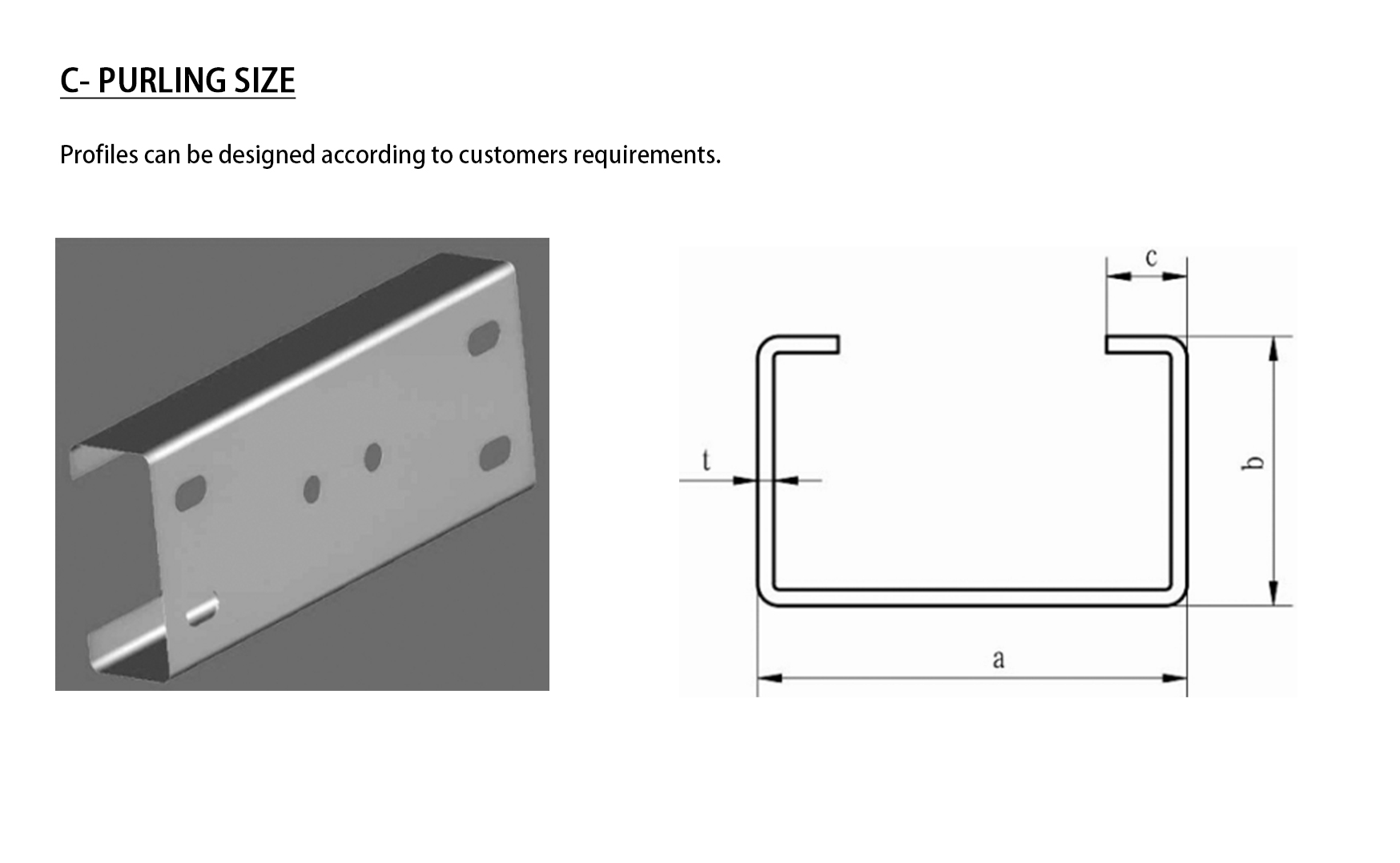

machineable size range as follow: Width:100-300mm, Height: 50-100mm, Thickness:1.5-3mm. According to your section profile,

size range, thickness range we could provide you different solutions of purlin roll forming machine to manufacturer a complete

range of structual purlins (height and width change using automatic system by motors).

       We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one

service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you

obtain perfectly functional profiles.

WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design,

development and production of cold roll forming machines. All products comply with international quality standards and are

greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and

Australia and so on. It has gained a global sales network.

Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good

quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is

specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for

roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications,

slitting machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are

widely used in Photovoltaic field.

A:We are factory with professional production team and service consciousness just for exporting various types of roll

forming machine.

A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will

send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period,

we will sell them at cost.

A: Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV

assessment and CE certificate.
