Home >> PRODUCTS >> Cut To Length Line >> (0.3-3.0) X 1300mm Cut To Length Line

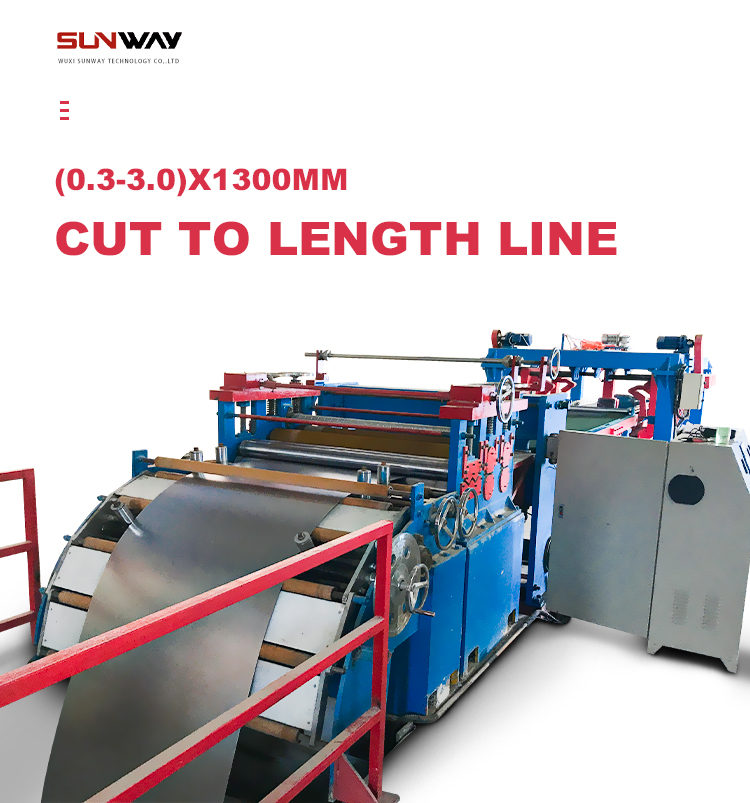

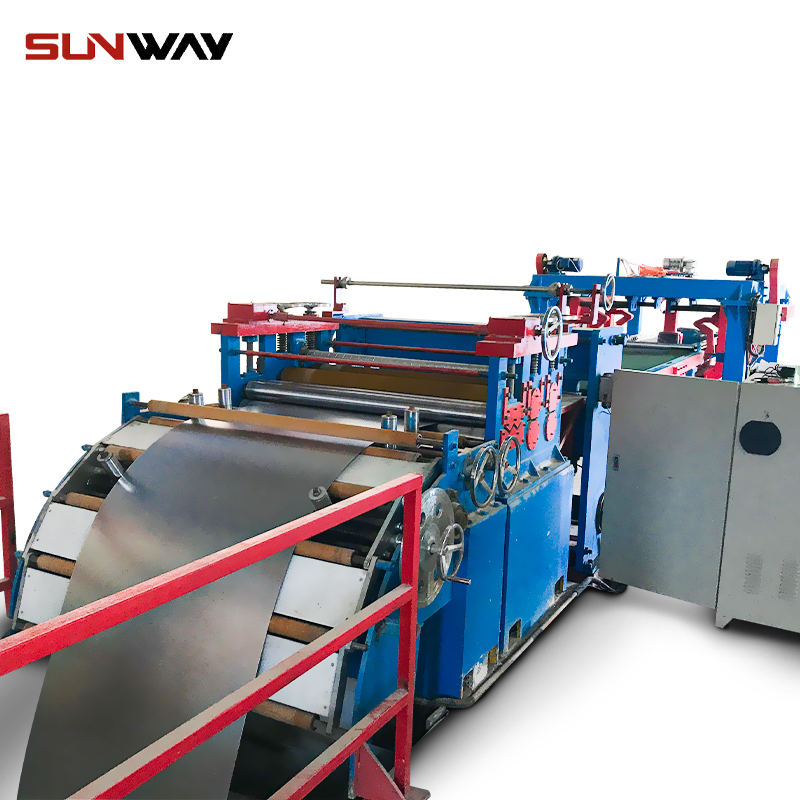

(0.3-3.0) X 1300mm Cut To Length Line

Email: E-mail:sales@wuxisunway.com

Tel: +86-510-83209229

Whatsapp: +86-13616182007

Specification

Product Description

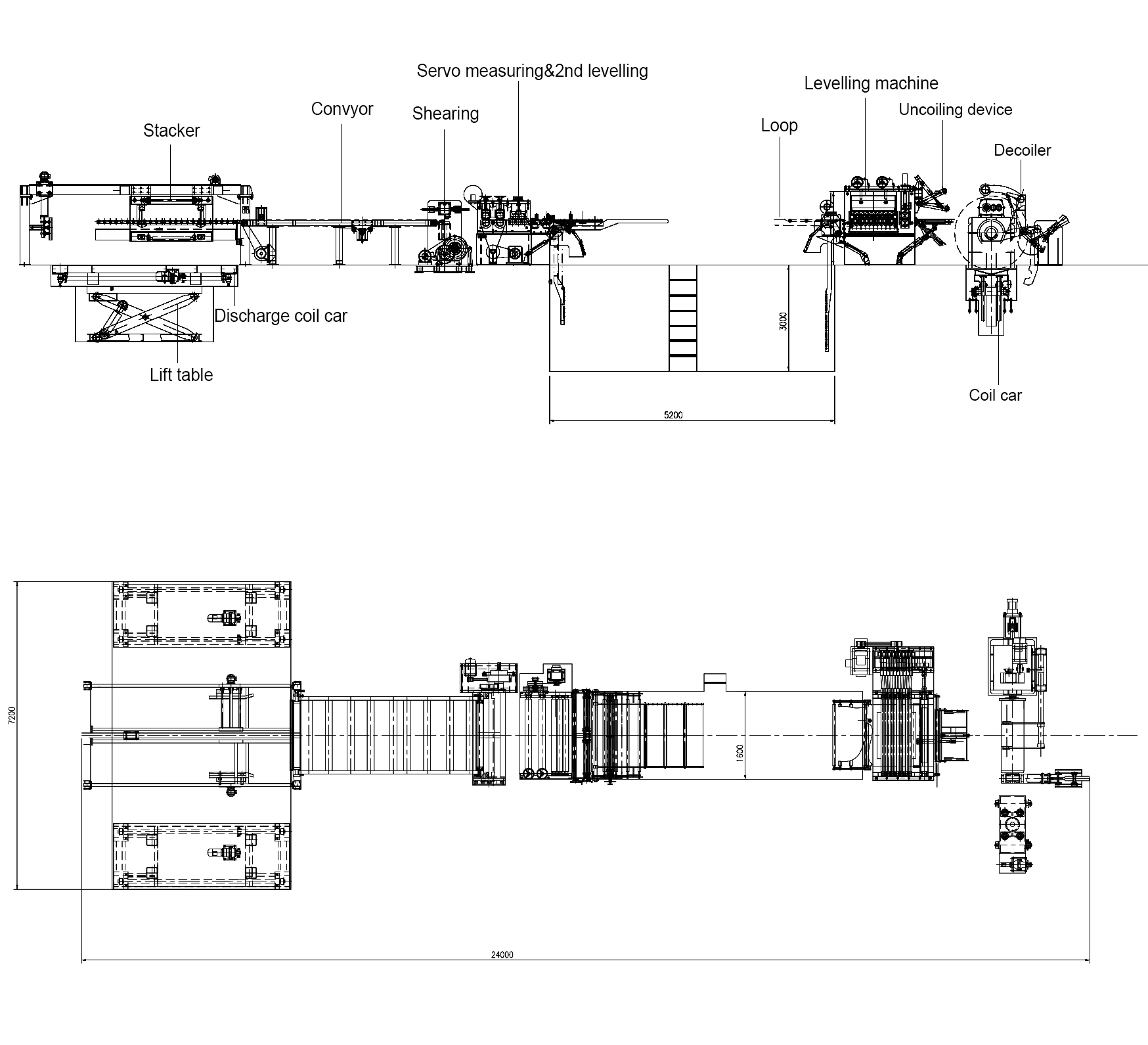

Production Line

Product Details

Coil Car

Hydraulic Cantilever Uncoiler

Material Uncoiling Device

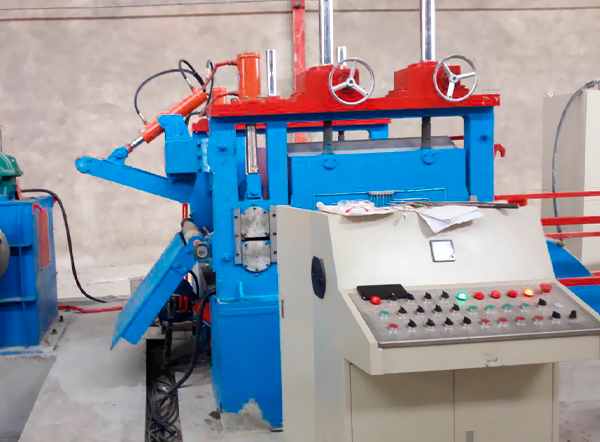

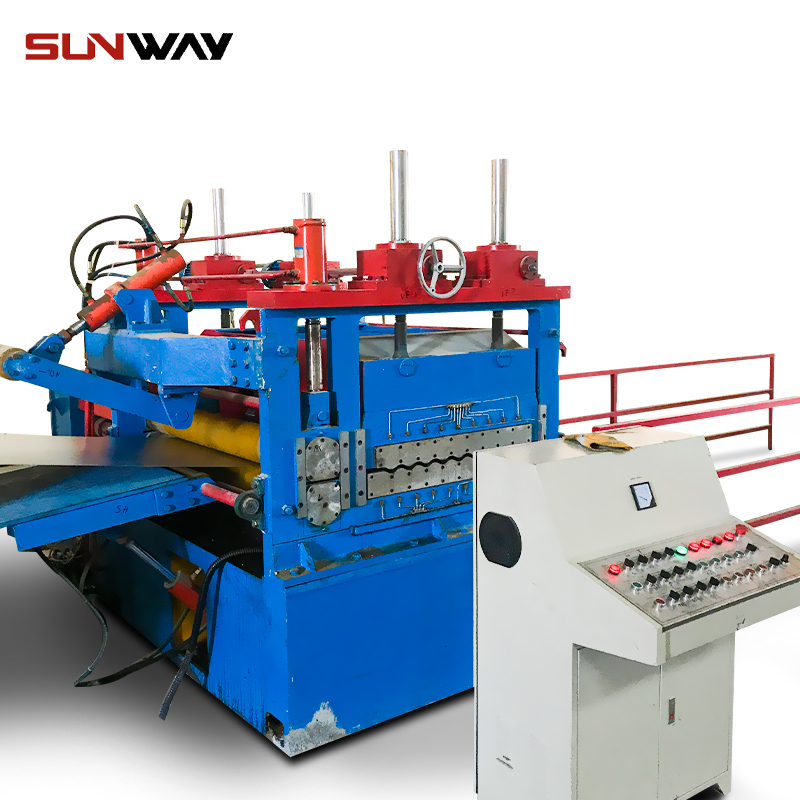

Leveling Machine

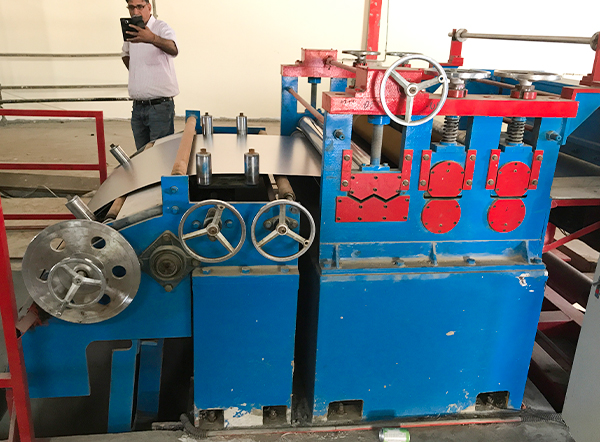

Side Guiding Device

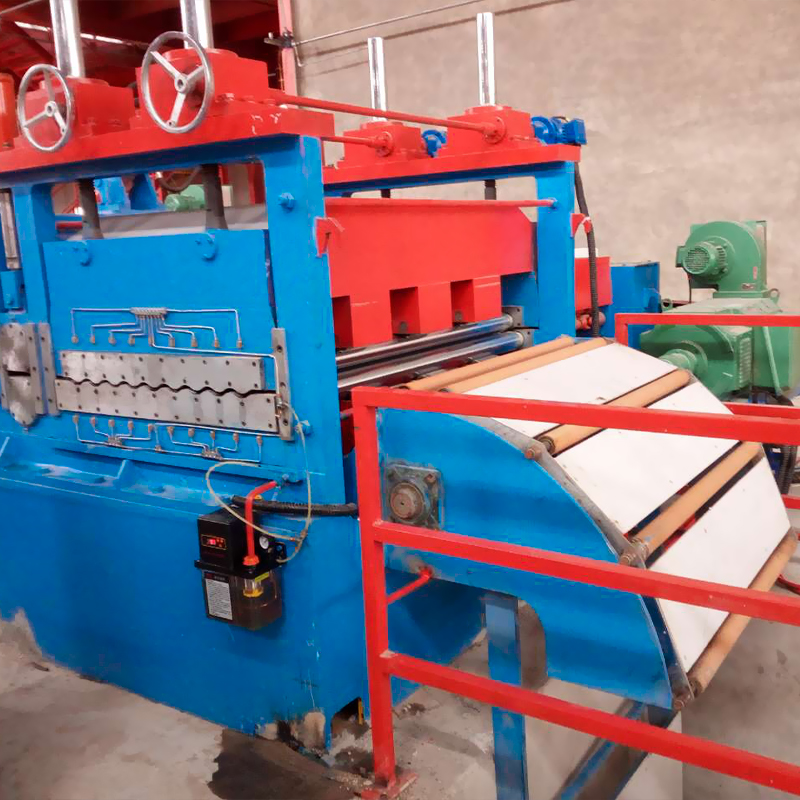

Precise Leveler (5 Rollers)

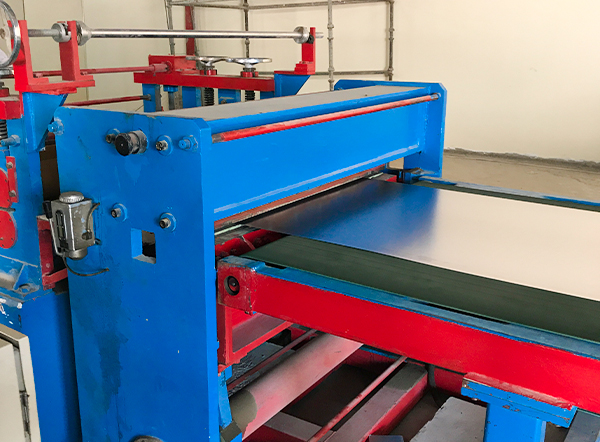

Shearing Machine

Conveyor

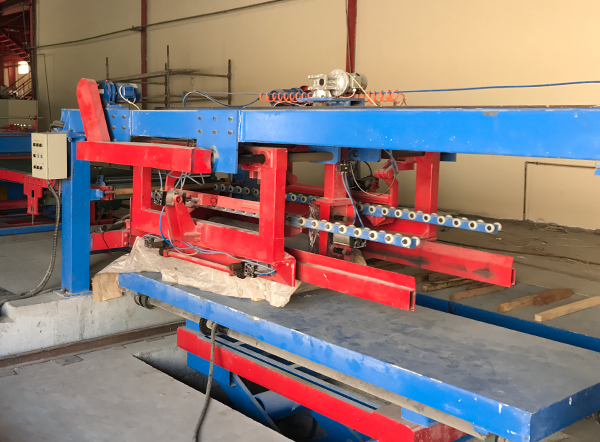

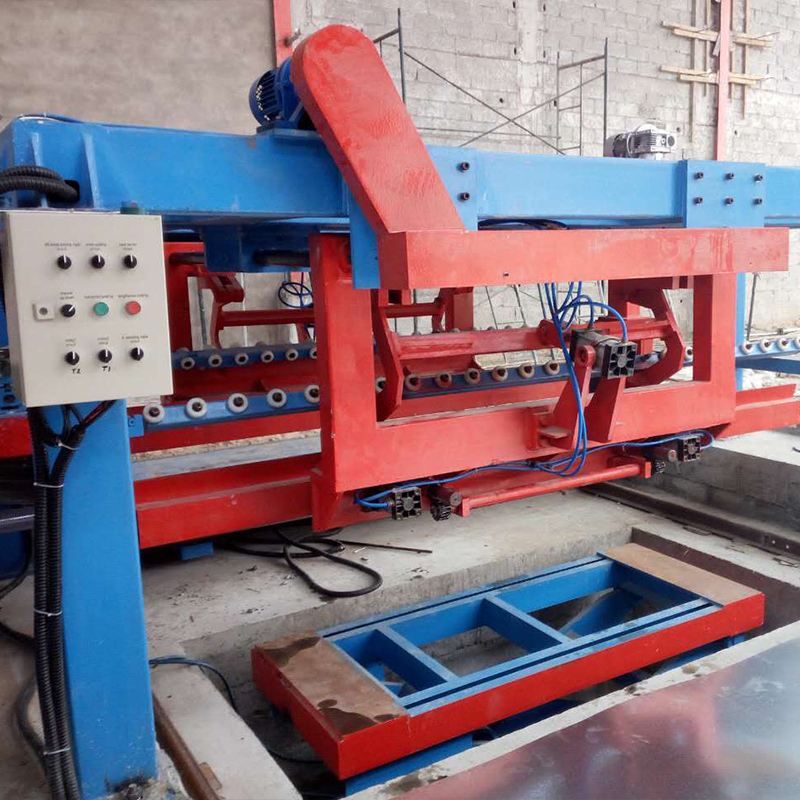

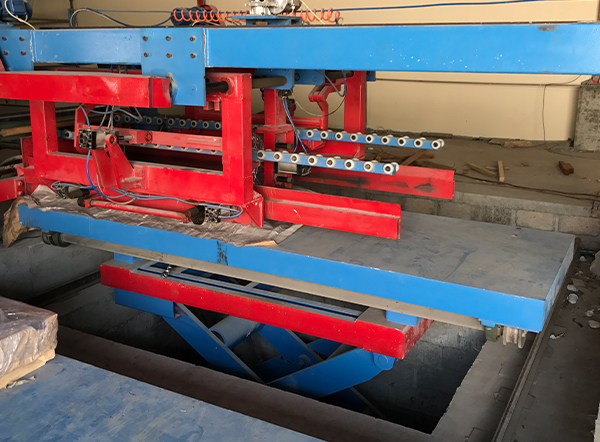

Stacking Device

Side Discharge Coil Car

Product Paramenters

(0.3-3.0mm)×1300mm Cut To Length Line
Applicable Material	Cold-rolled Coil, Galvanized Coils (Stainless Steel Up To 2.0mm)
Extension Strength	δb≤450Mpa
Thickness of Material	0.3-3.0mm (Stainless Steel Up To 2.0mm)
Width of Material	600-1300mm
Inner Diameter of Steel Coil	φ508mm, φ610mm
Outer Diameter of Steel Coil	φ1600mm (Max)
Weight Capacity of Steel Coil	15T (Max)
Length Range	500-4000mm
Length Tolerance	L=2m≤±0.3mm
Diagonal Tolerance	L=2m≤±0.5mm
Power Source	380V/50Hz/3Ph
Linear Speed	0-80m/min, 23 pcs / 2m /min
Installed Capacity	About 110Kw
Floor Area	About 22m*6m (LXW)

Company Profile

WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. It has gained a global sales network.

Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications, slitting machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are widely used in Photovoltaic field.

SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In accordance with High Quality Assurance and Valued Credibility, we provide customers high qualified and reliable products with complete after-sales service. Our company is looking forward to establishing successful and long-term business relationships with all clients around the world in the near future.

FAQ

Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness just for exporting various types of roll forming machine.

Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.

Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.

Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.

Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.

Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
