Strut Channel Roll Forming Machine (Regular Version)
Overview
Product Description

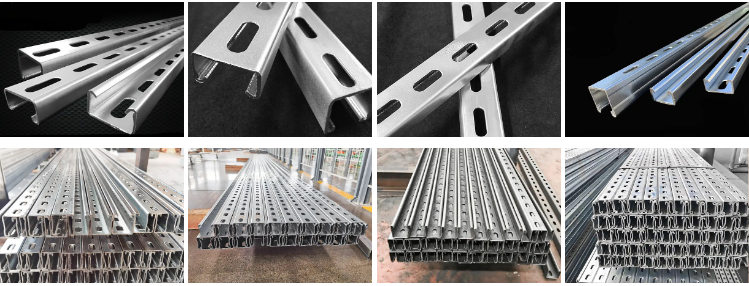

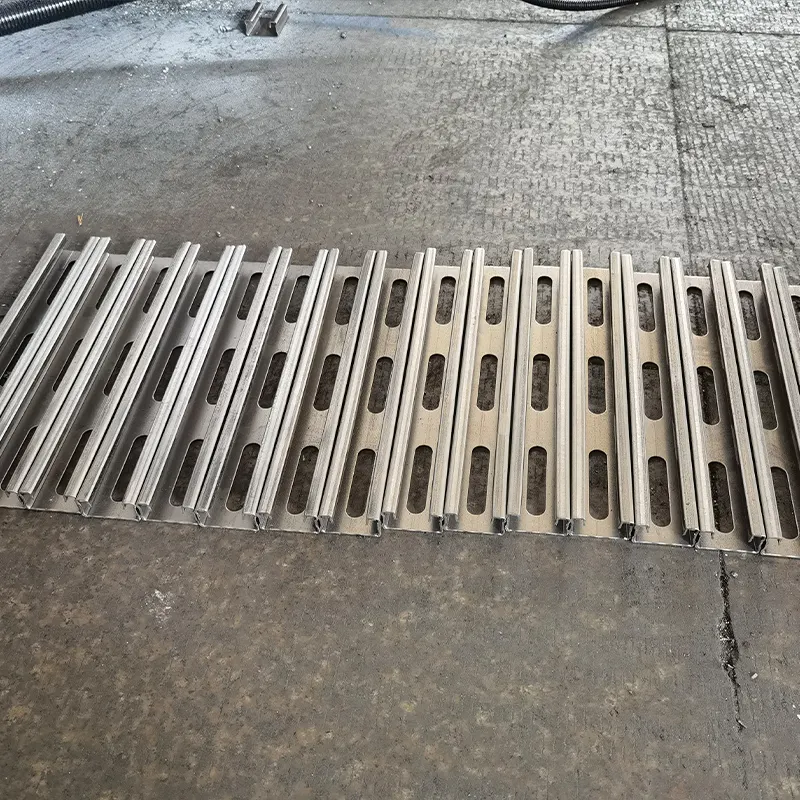

Solar mounting strut channel roll forming machine (Regular Version) also called as photovoltaic (PV) rack roll forming machine is suitable to produce strut channels with thickness from 1.5-2.5mm. It consists of uncoiler, feeder, roll former, punching and cutting unit and electrical & hydraulic system. Raw material could be Hot-rolled and cold rolled steel, Hot-dip galvanized sheet, Pre Galvanized Steel, Mill (Plain/Black) Steel, etc. Meantime, this machine could produce solid channel, slotted channel, half slotted channel, long slotted channel, punched channel, punched and slotted channel etc. Welcome to contact with your detailed requirement!

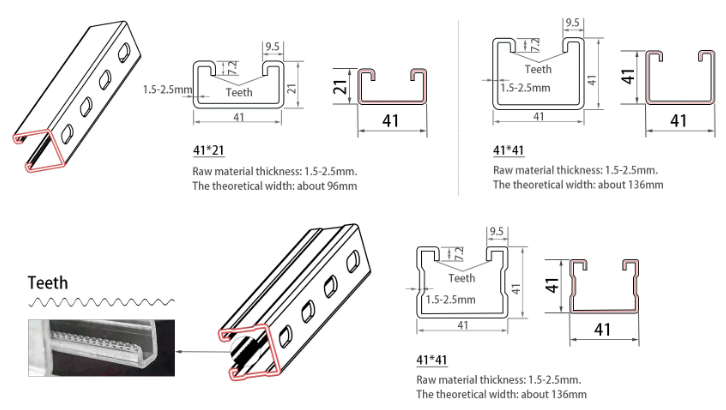

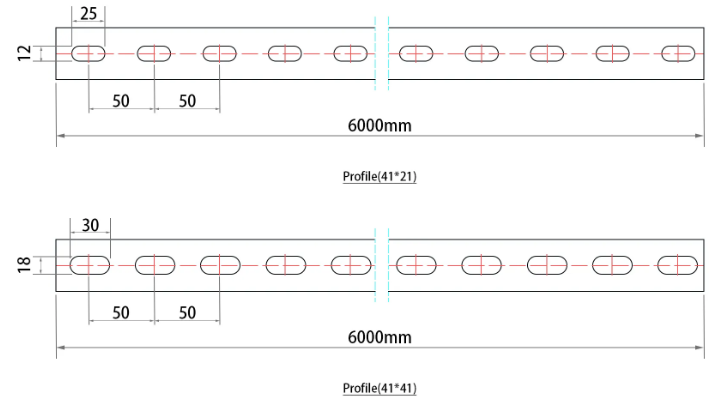

Profile Drawings

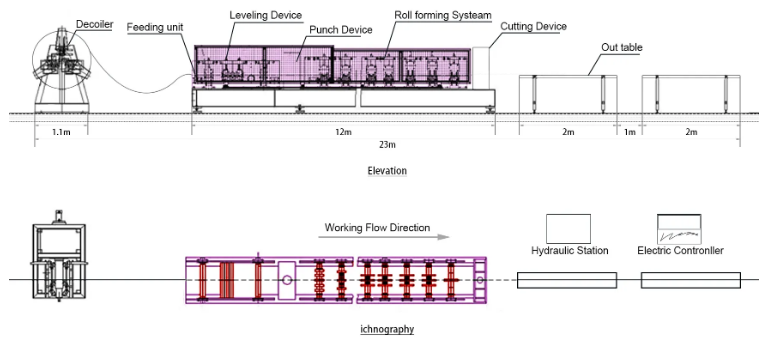

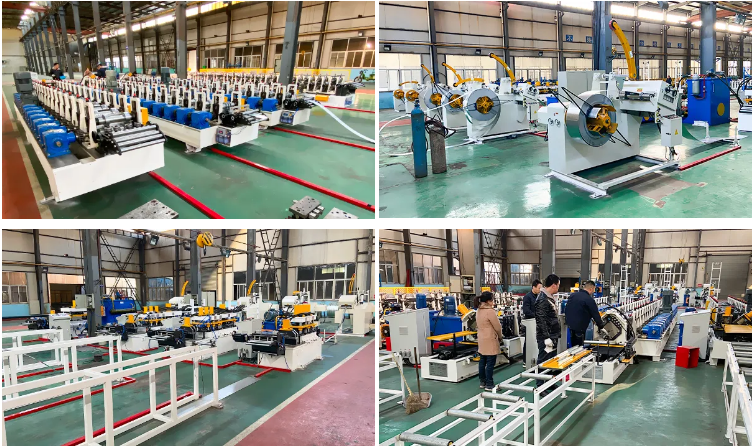

Production Line

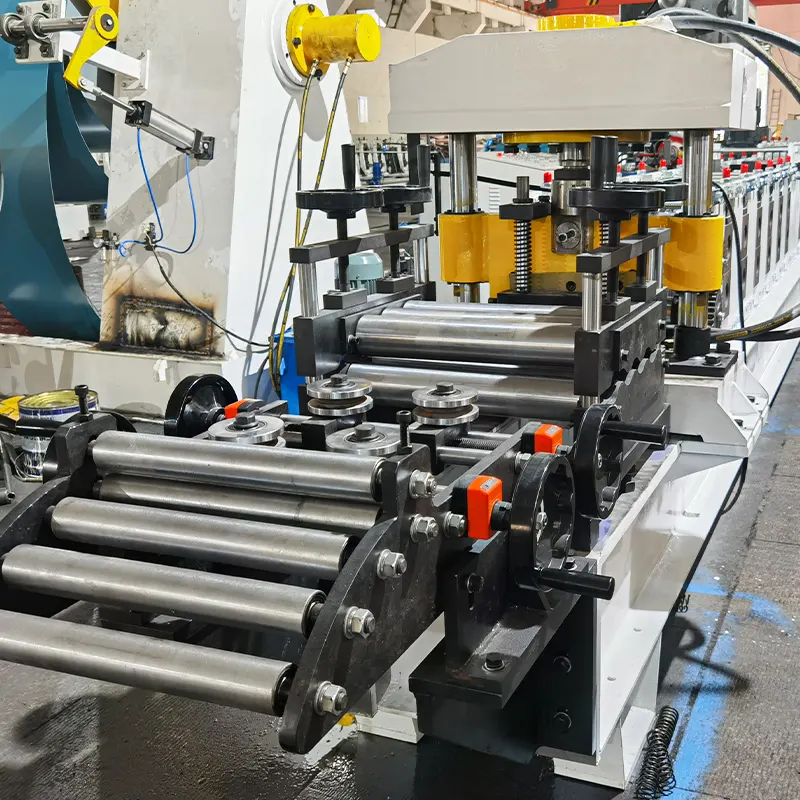

Product Details

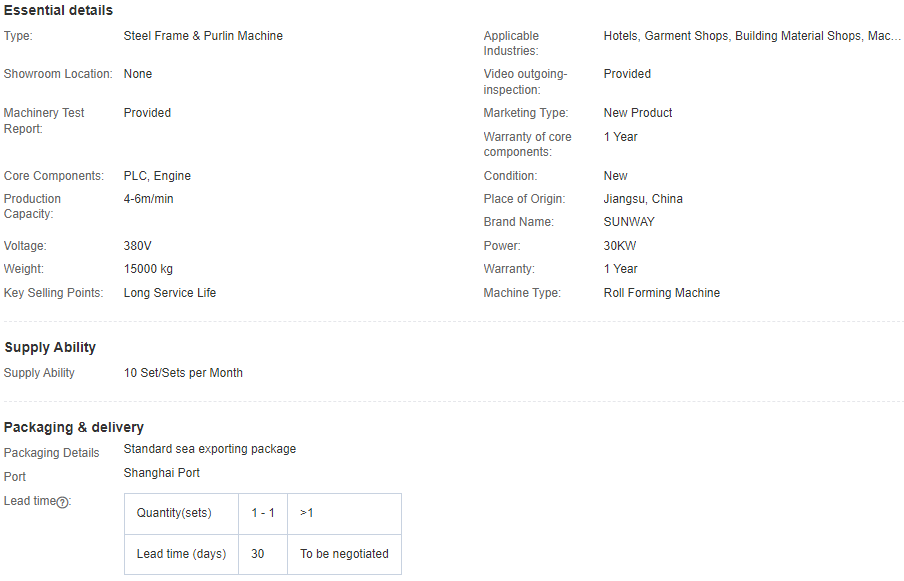

Product Paramenters
Strut Channel Roll Forming Machine (Regular Version) | ||
A) Hot-rolled And Cold Rolled Steel | Thickness(MM): 1.5-2.0, 2.0-2.5mm | |
B) Hot-dip Galvanized Sheet | ||
C) Pre-Galvanized Steel | ||
D) Mill(Plain/Black) Steel | ||
Yield strength | 235 - 345 Mpa | |
Tensil stress | G250 Mpa-G350 Mpa | |
Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) |

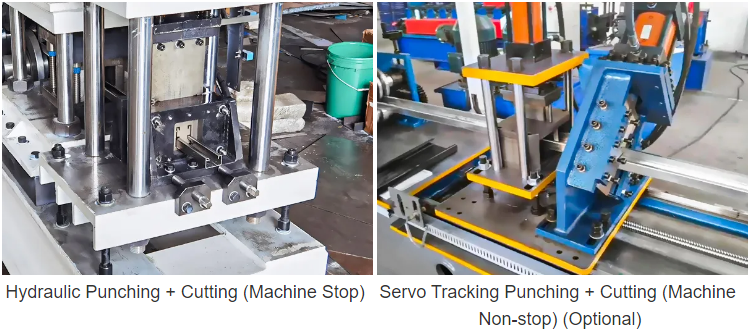

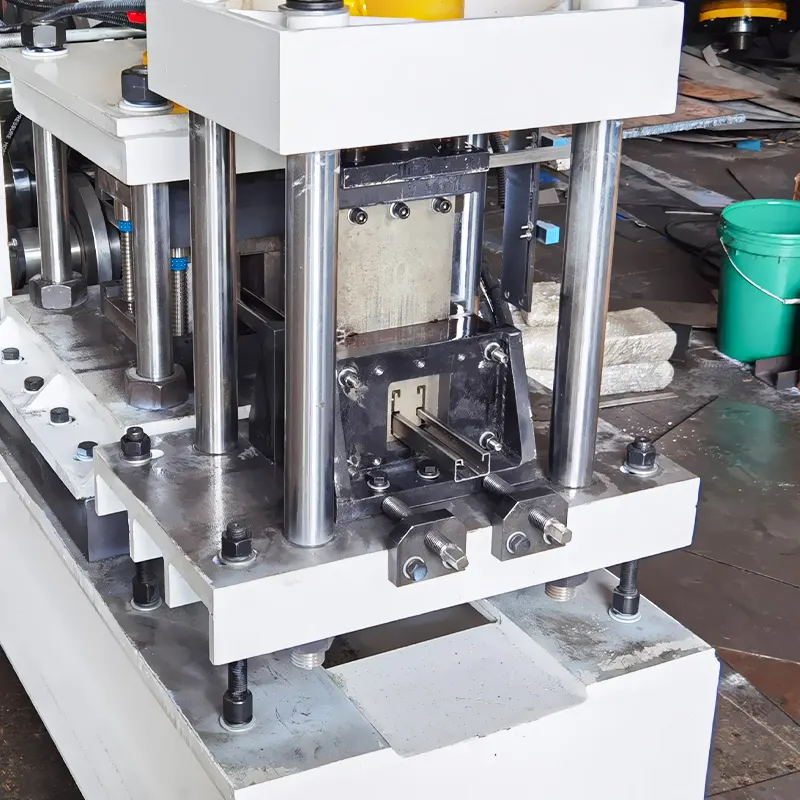

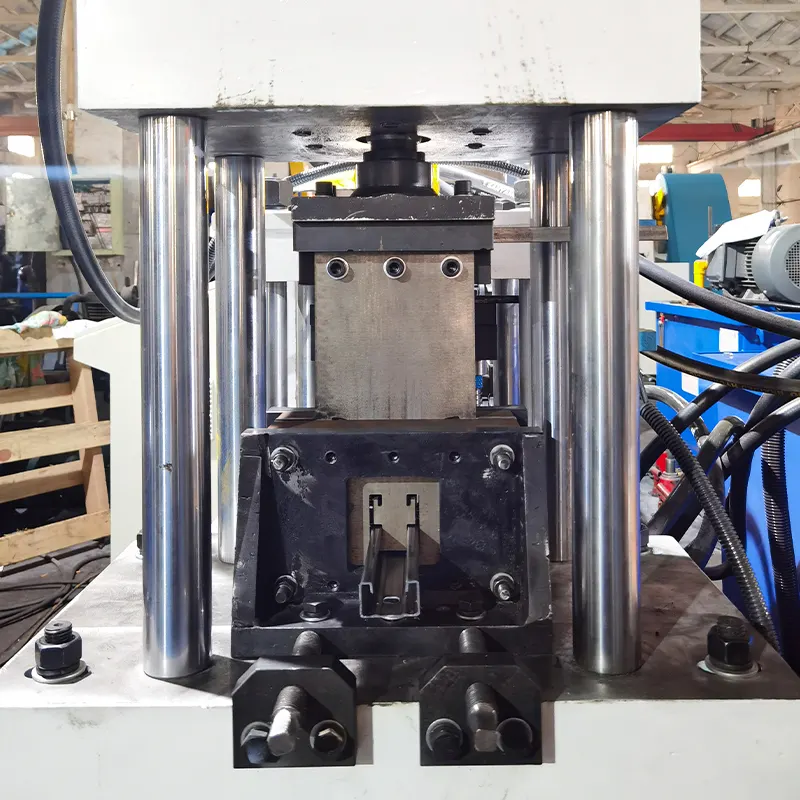

Punching System : | Hydraulic Punching Station | * Post Punching Or Pre-punching Option |
Forming Station | 19-22 | * According To Your Profile Drawings |
Main Machine Motor Brand | Reducer + Motor | * Servo Motor (Optional) |
Driving System | Chain Drive | * Gearbox drive (Optional) |
Machine Structure | Wall Panel | * Forged Iron station (Optional) |
Line Forming Speed | 4-6 (M/MIN) | * According To Final Configuation |
Rollers’ Material | GCr15 | * Cr12 (Optional) |
Cutting System | Post-cutting, Machine Stop To Cut | * Tracking Cutter (Optional) |
Frequency Changer Brand | Yaskawa | |
PLC Brand | Panasonic | |
Power Supply | 380V 50Hz 3ph | * Or According To Your Requirment |
Machine Color | Industrial Blue | * Or According To Your Requirment |

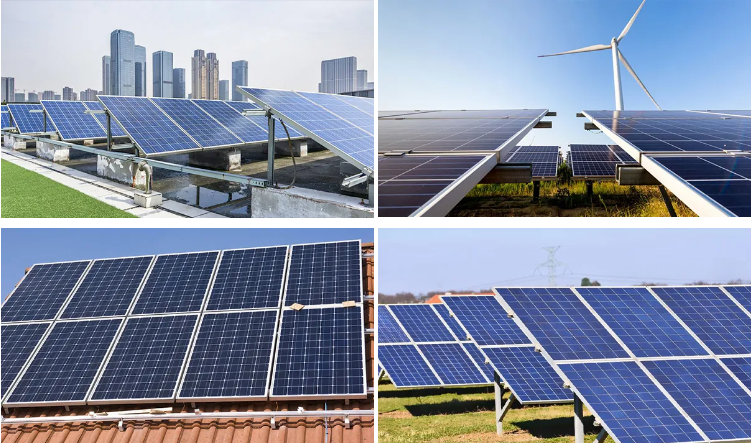

Application
With the features of green, solid, economical, durable, fast easy to install and good looking, double in roll
C-shaped steelphotovoltaic bracket and other steel building materials are used more and more widely. It is
suitable for various light steelstructure construction, shelves, ceiling frames, and so on.
Company Profile
WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned
with the design, development and production of cold roll forming machines. All products comply with
international quality standards and are greatly appreciated in variety of different markets throughout the
world, such as Asia, Africa, Europe, South America, and Australia and so on. It has gained a global sales
network.
Our machines feature beautiful appearance, long service life, good performance, simple operation,
reasonable price, good quality and so on. Strong technical resources are the most stable guarantee for our
products' quality. Our company is specialized in manufacturing different kinds of cold roll forming machines,
such as color steel sheet forming machines for roof & wall, C and Z purling machines for steel structure,
steel profiles forming machines for professional applications, slitting machines for processing raw material,
especially in manufacturing Solar Mounting Bracket Machines which are widely used in Photovoltaic field.
SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In
accordance with High Quality Assurance and Valued Credibility, we provide customers high qualified and
reliable products with complete after-sales service. Our company is looking forward to establishing
successful and long-term business relationships with all clients around the world in the near future.
FAQ
Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness just for exporting various
types of roll forming machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to
customers’ factories.
Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are
broken, we will send you new ones for free and customer affords the express cost. If some parts are
broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold
supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand
components.
Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
