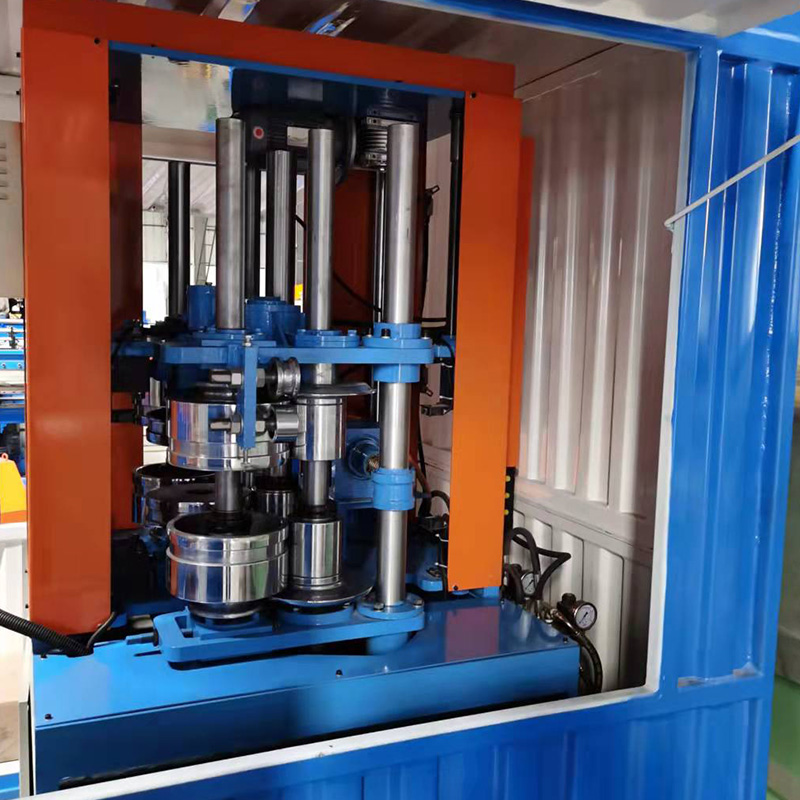

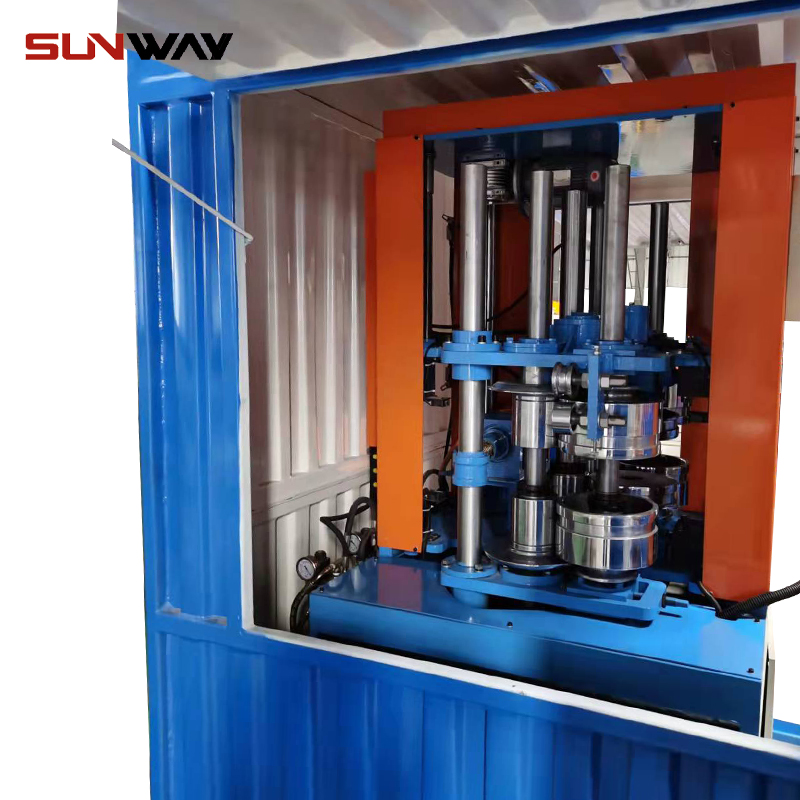

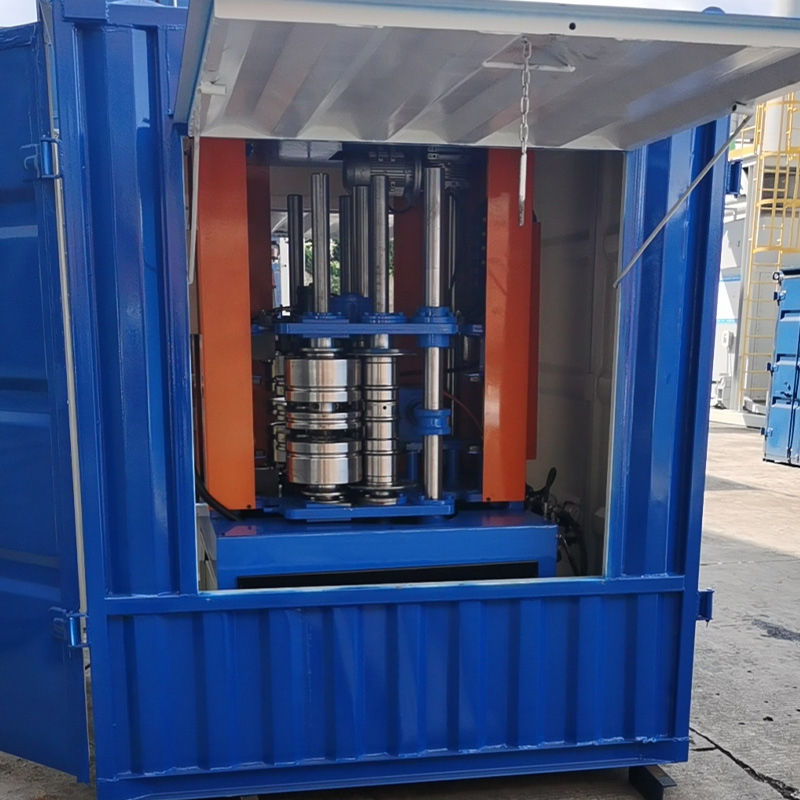

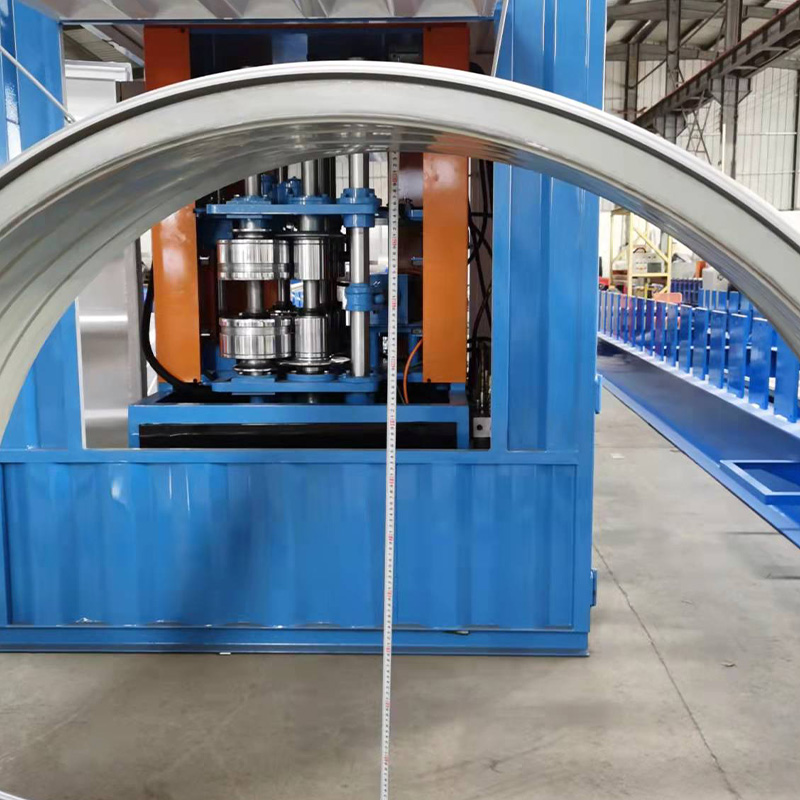

Standing Seam Roof Panel Curving Machine

Email: E-mail:sales@wuxisunway.com

Tel: +86-510-83209229

Whatsapp: +86-13616182007

Specification

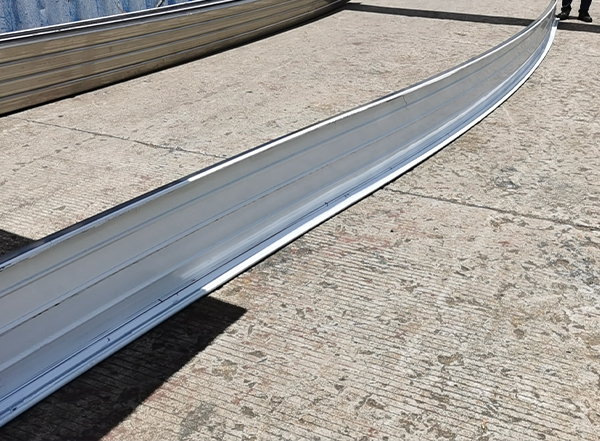

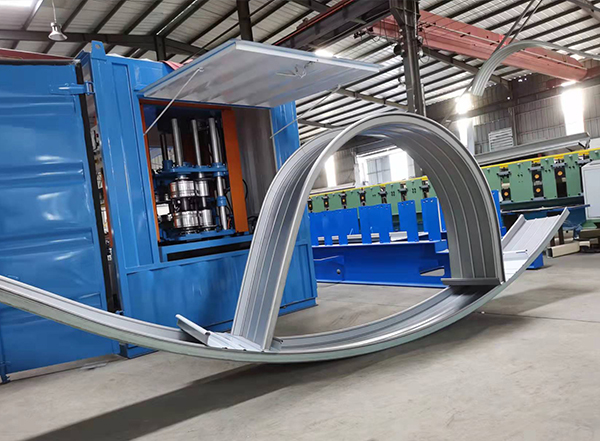

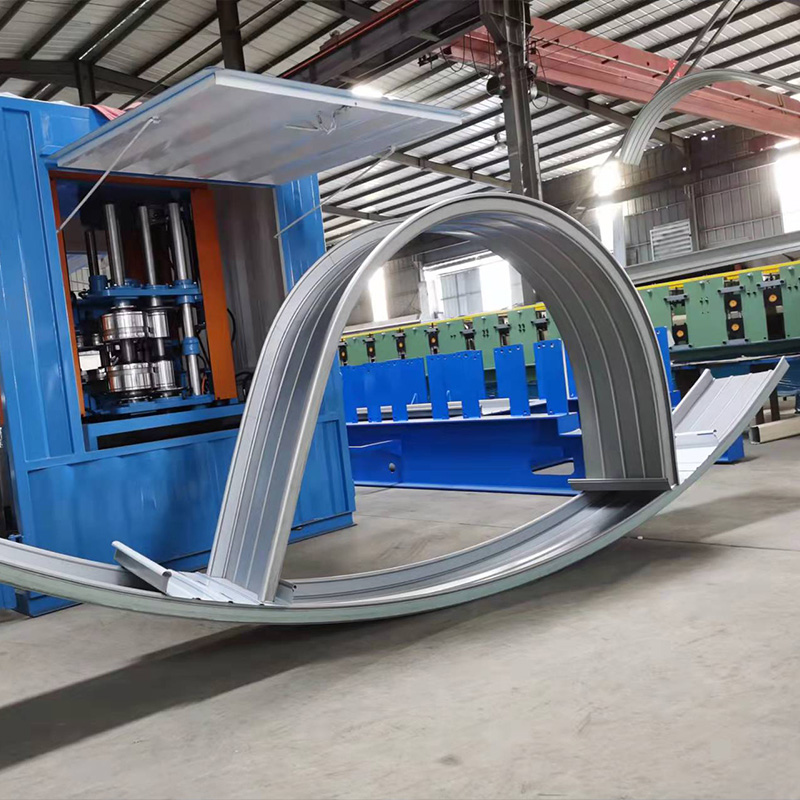

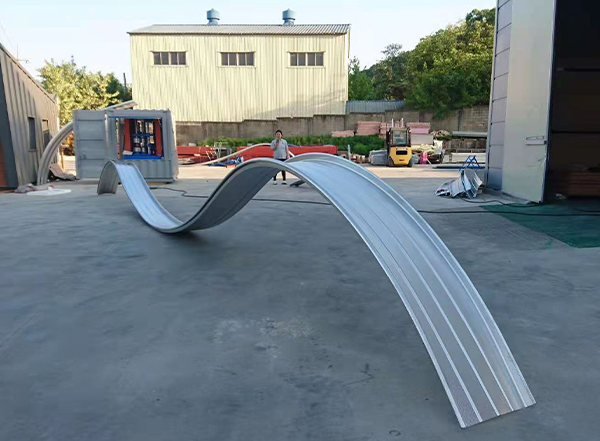

Standing seam roof panel curving machine also named roof panel crimp curving machine is an auxiliary device for a standing seam roof panel roll forming machine. It is used for curving the standing seam roofing sheet to a required shape with different radius. Generally, customer will buy a standing seam roof panel roll forming machine with this crimping machine. The crimping machine used to curve the sheet which produced by the roofing sheet roll forming machine. Normally the panel thickness is 0.3-0.8mm with normal galvanized steel or colored coil. In Construction Industries, we are able to manufacture more machines like main channel roll forming machine, purlin roll forming machine, drywall roll forming machine, stud roll forming machine, track roll forming machine, top hat roll forming machine, clip roll forming machine, metal deck (floor deck) roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine, corrugated roll forming machine, ridge cap roll forming machine, downspout roll forming machine, etc. We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

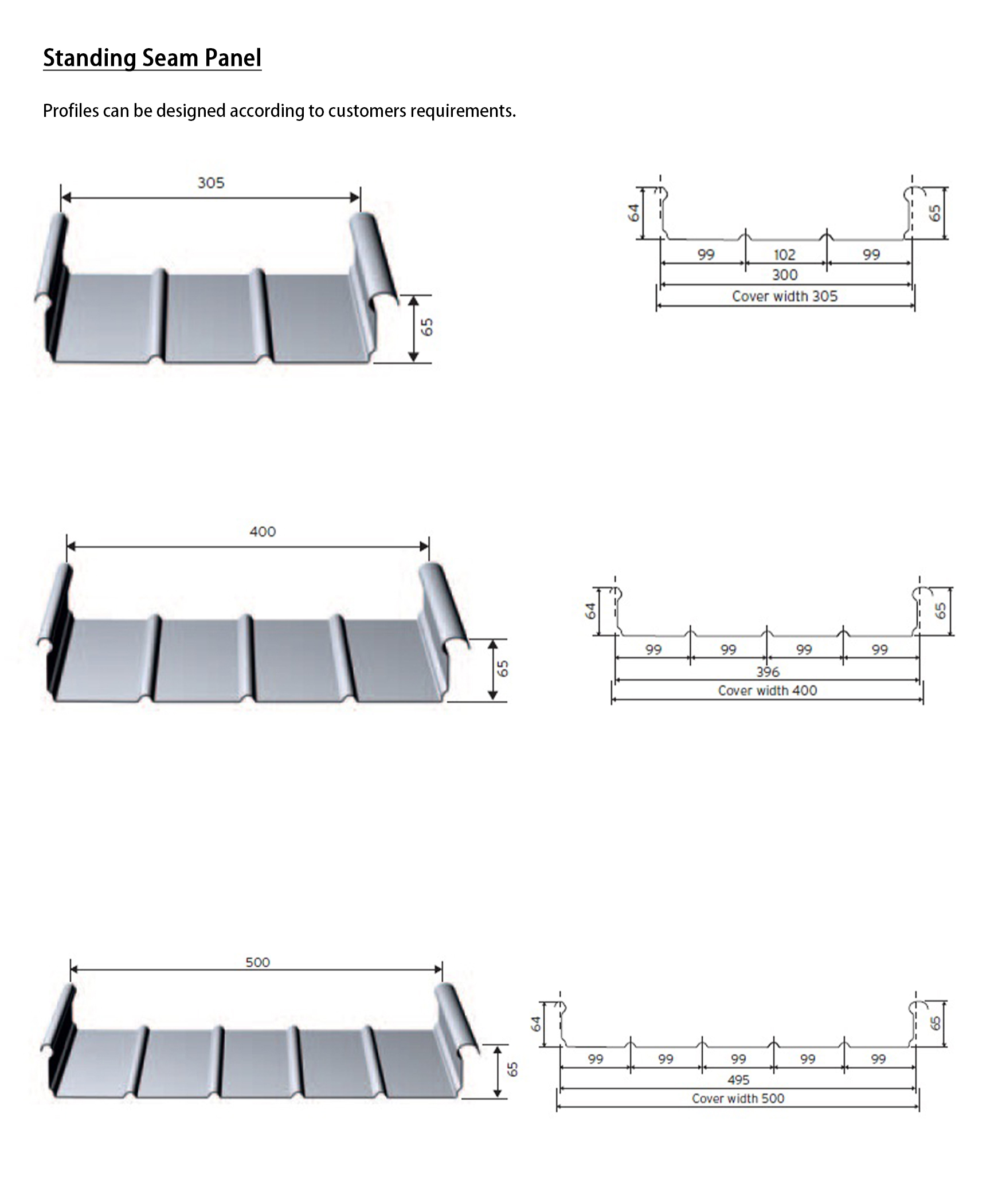

Profile Drawings

Product Paramenters

Standing Seam Roof Panel Curving Machine
Raw Material	A) Galvanized Coil	Thickness(MM): 0.3-0.8 or as per customer
	B) Aluminium coil, s.s coil
Yield Strength	250 - 350 Mpa / 350-550 Mpa Or More
Tensil Stress	350 Mpa - 550 Mpa Or More
Panel Width	As Per The Panel With Comes From Roll Forming Machine
Feeding Way	Manual Feeding
Curving System	Hydraulic
Material Of Punching Mould	Cr12Mov, Heat Treatment
Automatic	Automatic Set-up Radius, 20 Different Radius Can Be Inputted In Control System At The Same Time (Both Positive Arc And Reversed Arc)
Curving Speed	About 15m/min
Power Supply	380V 50Hz	* Or According To Your Requirment
Machine Color	Industrial Blue	* Or According To Your Requirment

Company Profile

WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. It has gained a global sales network.

Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications, slitting machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are widely used in Photovoltaic field.

SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In accordance with High Quality Assurance and Valued Credibility, we provide customers high qualified and reliable products with complete after-sales service. Our company is looking forward to establishing successful and long-term business relationships with all clients around the world in the near future.

FAQ

Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness just for exporting various types of roll forming machine.

Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.

Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.

Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.

Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.

Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
