Two Profiles Galvanized Aluminum Roof Sheet Roll Forming Machine Manufacturer Double Layer Roof Tile Press Forming Machines

Specification

Product Description

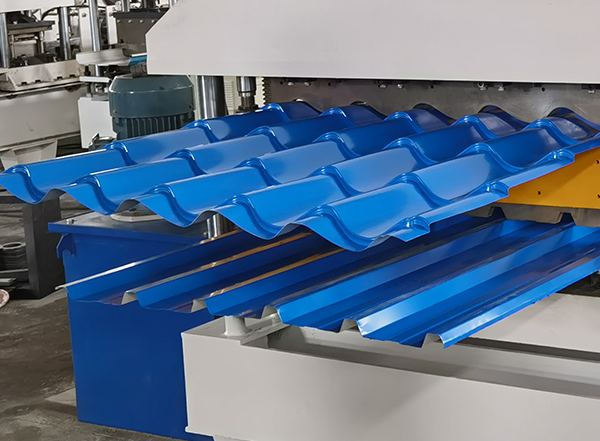

       Double layer roll forming machine is mainly used to produce roof panels, which has two layers and produce two different roof / wall profiles. Normally the panel thickness is 0.3-0.8mm with normal galvanized steel or colored coil.
Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, corrugated panel, roof tile, glazed tile, metal deck, wall panel, standing seam, K span and ridge cap. Its products are widely used in roof and wall system in workshop construction and housing construction.
In Construction Industries, we are able to manufacture more machines like main channel roll forming machine, purlin roll forming machine, drywall roll forming machine, stud roll forming machine, track roll forming machine, top hat roll forming machine, clip roll forming machine, metal deck (floor deck) roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine, corrugated roll forming machine, ridge cap roll forming machine, downspout roll forming machine, etc.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

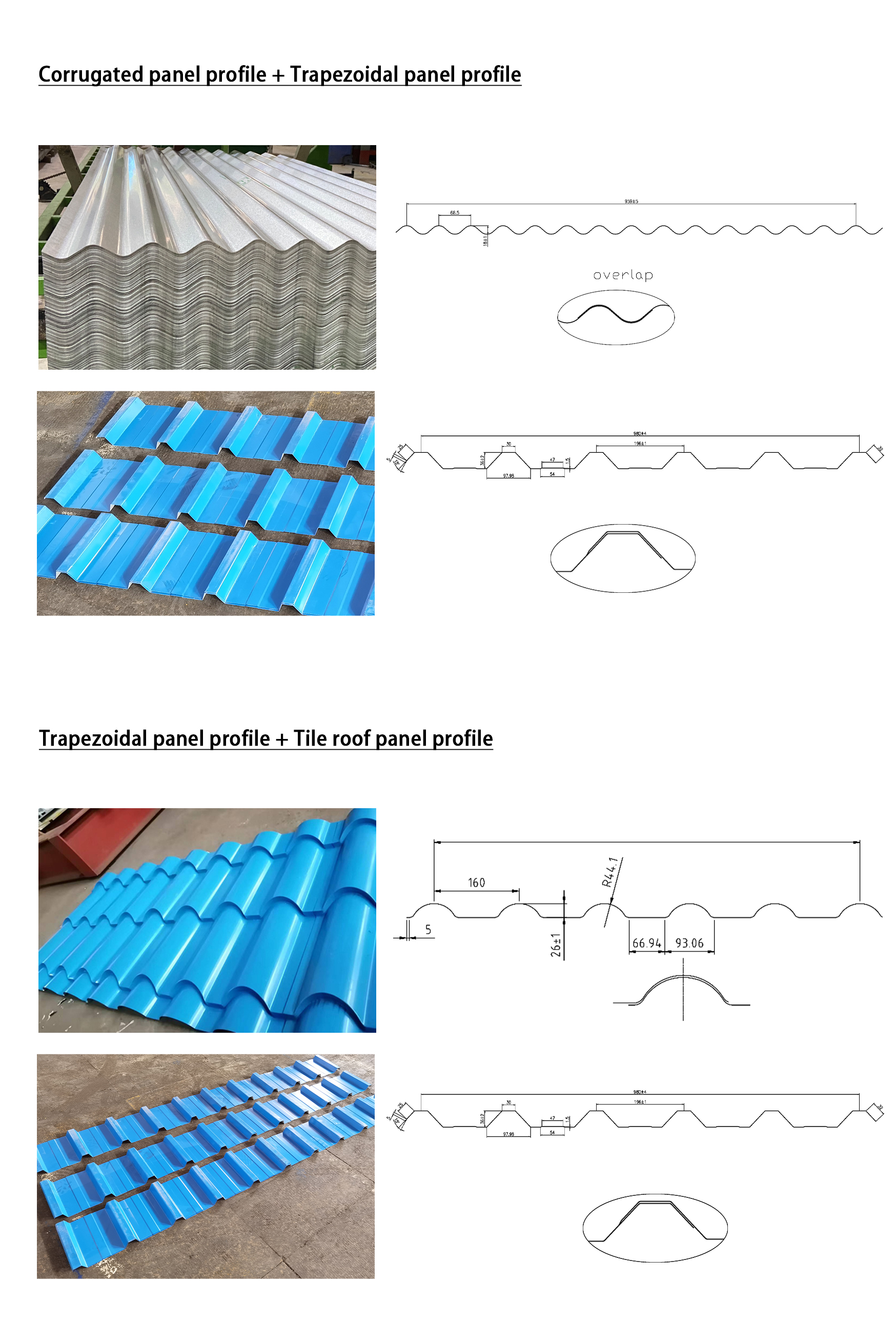

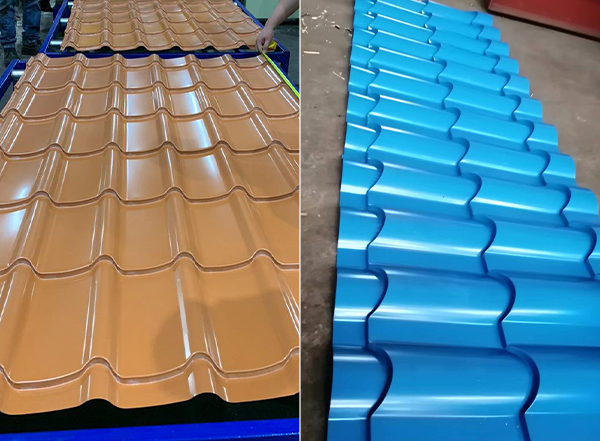

Profile Drawings

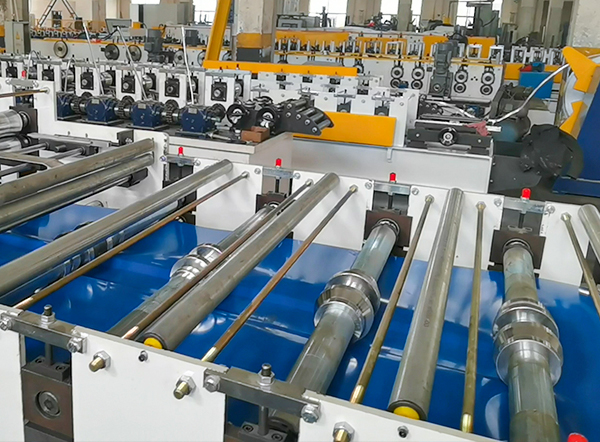

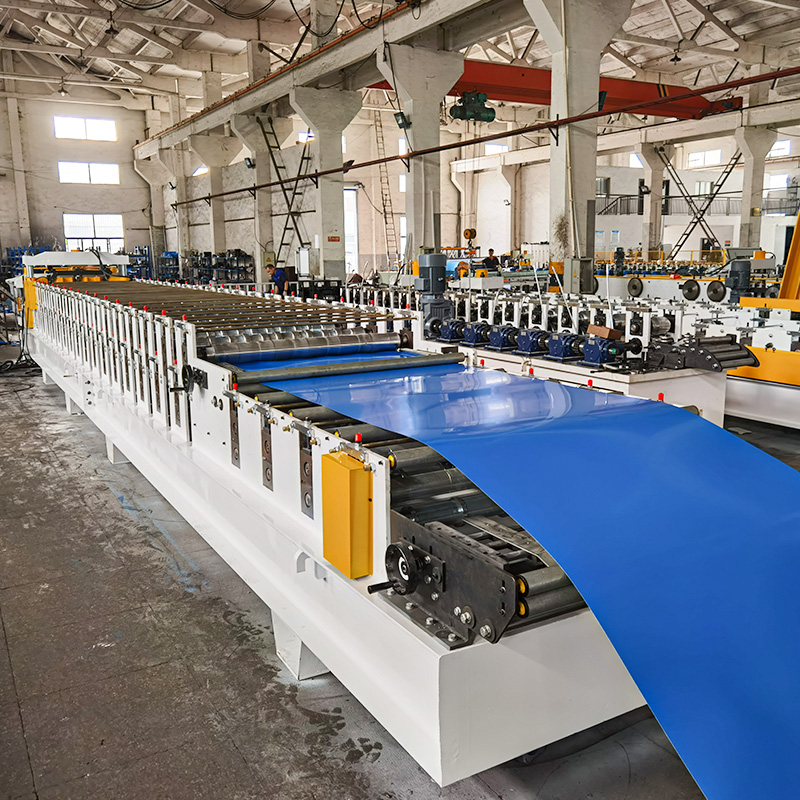

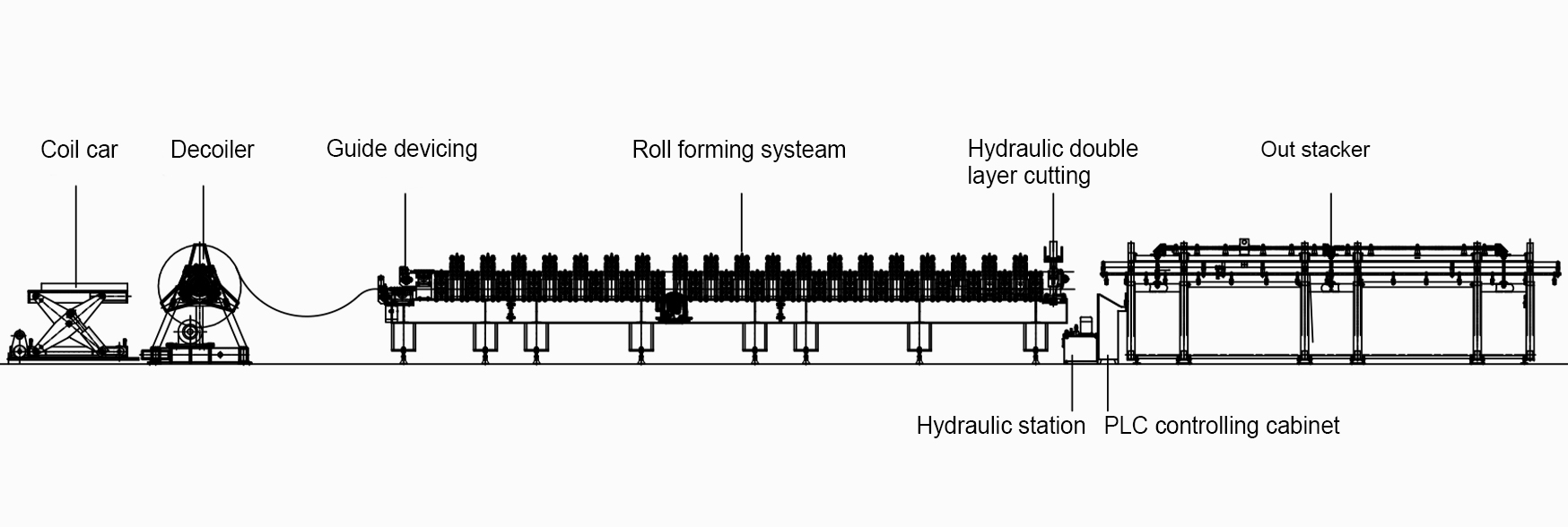

Production Line
Product Details

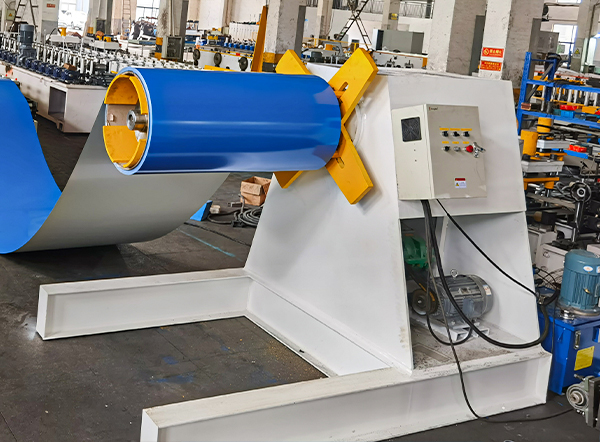

Hydraulic Decoiler

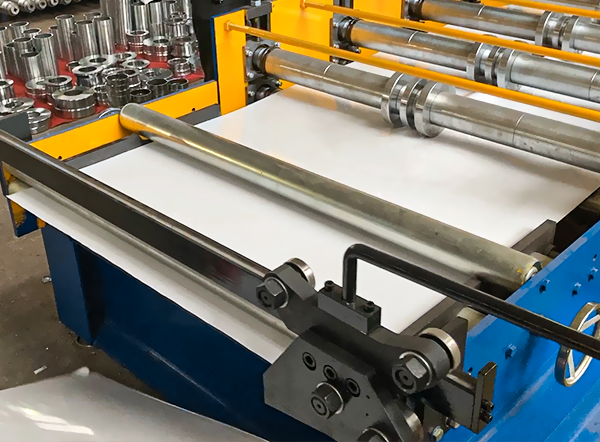

Guide Devicing
Pre-Shear

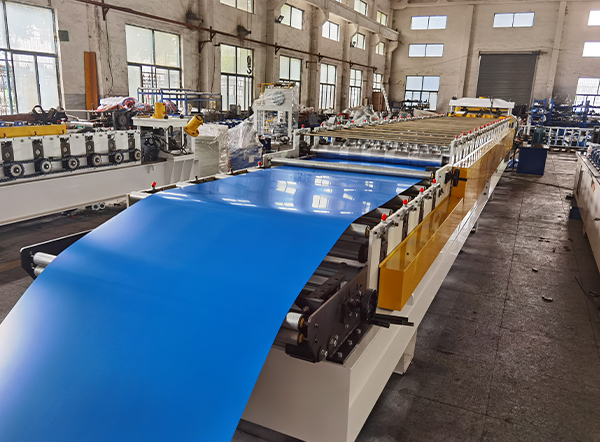

Roll Former

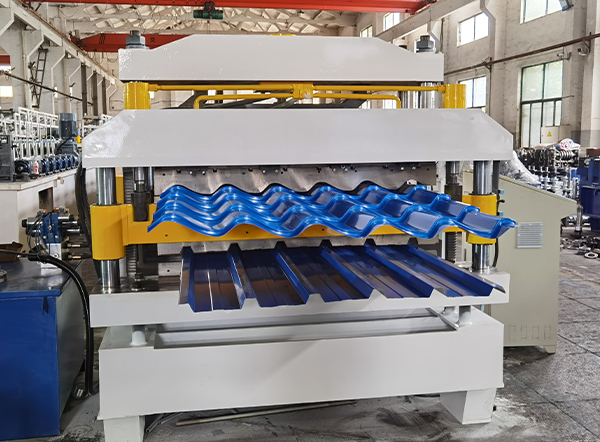

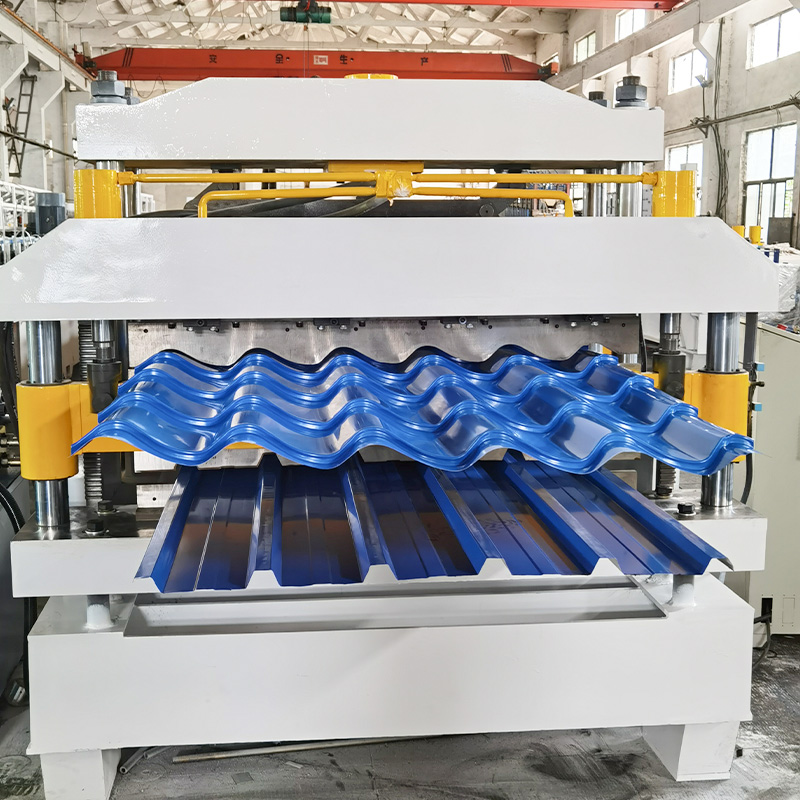

Hydraulic Double Layer Cutting

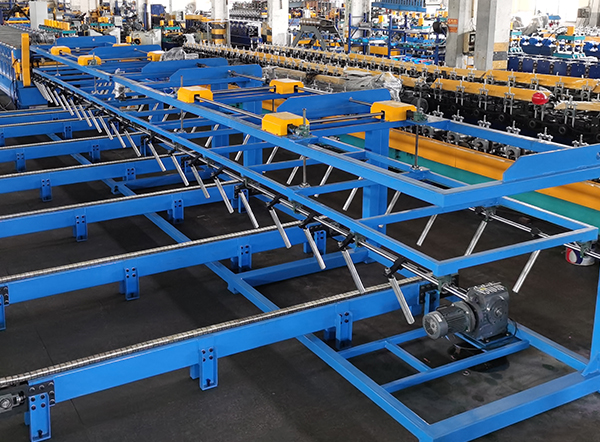

Out Table
Product Paramenters

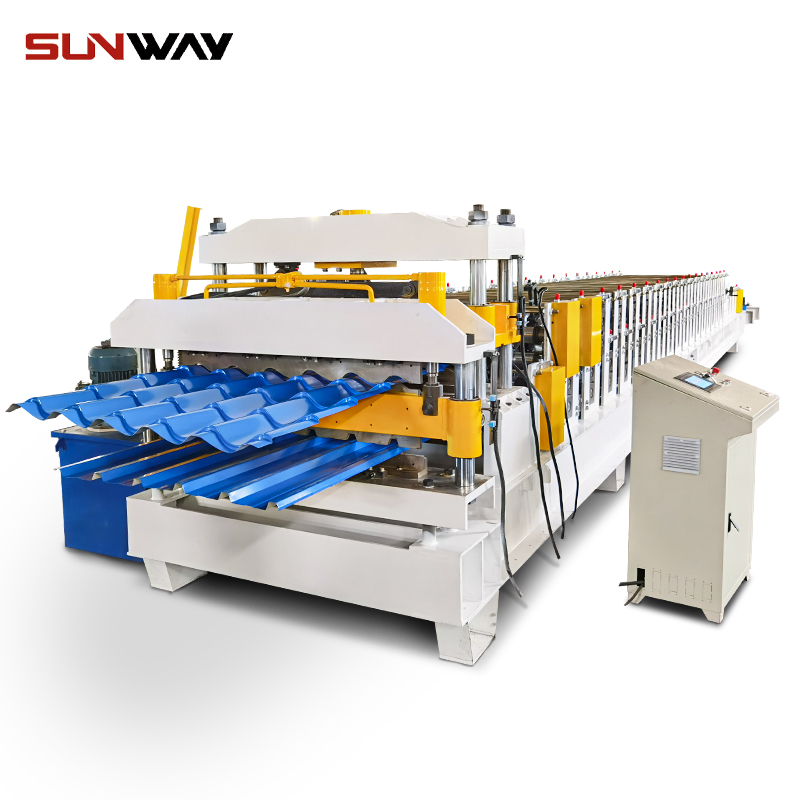

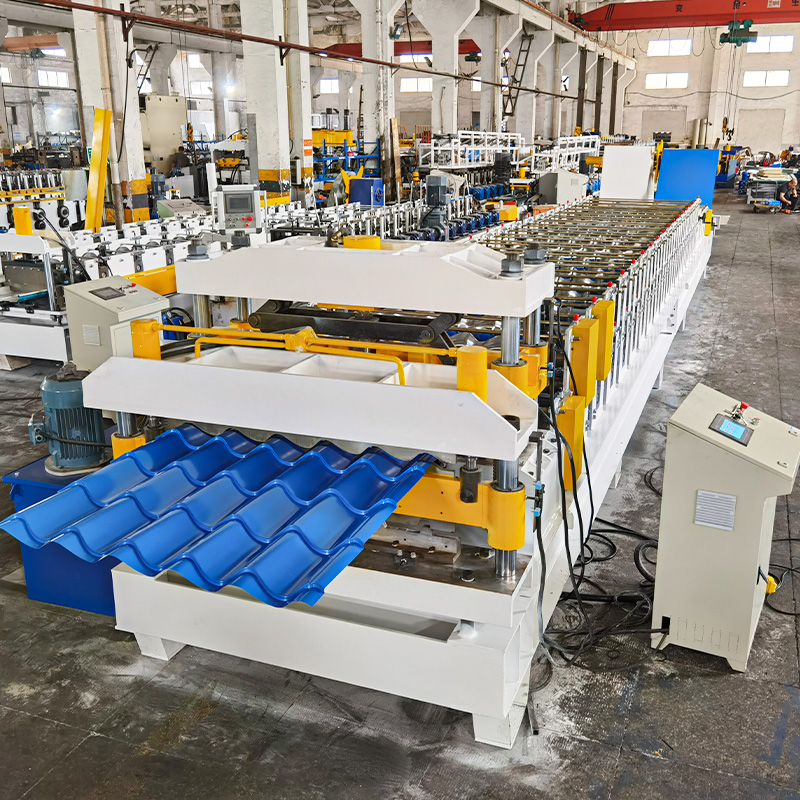

                                Double Layer Panel Roll Forming Machine


Machinable Material

A) Galvanized Coil

Thickness(MM): 0.3-0.8 According

To Your Requirment

B) PPGI, PPGL
Yield Strength250 - 350 Mpa / 350-550Mpa
Tensil Stress350 Mpa-550 Mpa
Coil Width914mm, 1000mm, 1200mm, 1220mm, 1250mm etc
Forming Speed6-10 (m/min)* Or According To Your Requirment
Forming StationTwo Layers
16-20 Stations for Each Layer
* According To Your Profile Drawings
DecoilerManual Decoiler* Hydraulic Decoiler (Optional)
Driving SystemChain Drive* Gearbox Drive (Optional)
Machine StructureSteel Plates Welded* Individual Station (Optional)
Rollers’ Material45#
Cutting SystemHydraulic Post Cut* Hydraulic Servo Tracking Cutter (Optional)
Output WayRoller Table* Auto Stacker (Optional)
Frequency Changer Brand    Yaskawa* Siemens (Optional)
Power Supply380V 50Hz 3ph* Or According To Your Requirment
Machine ColorIndustrial Blue* Or According To Your Requirment

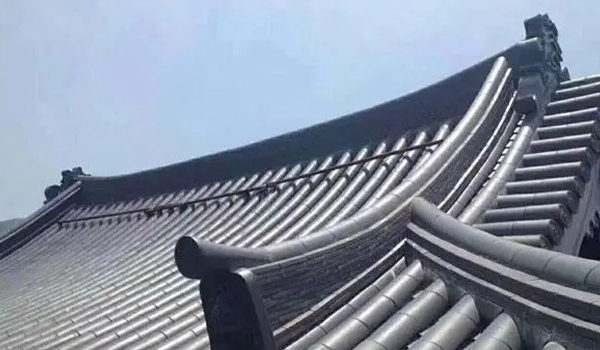

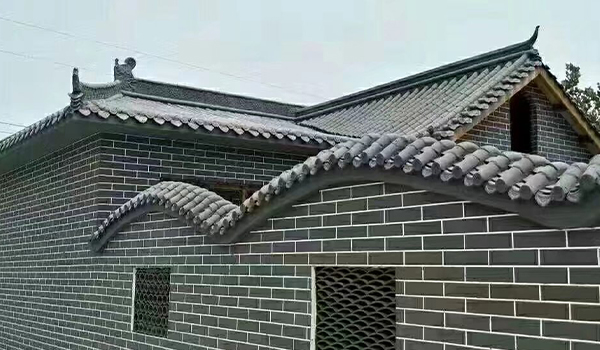

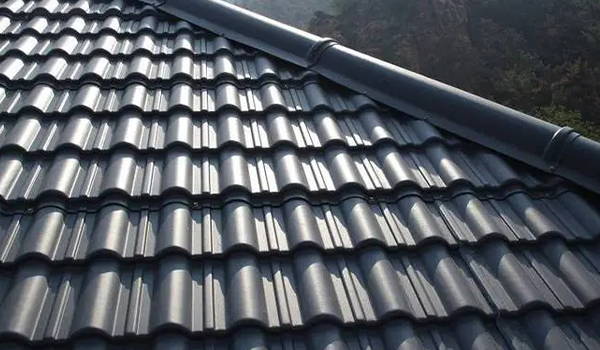

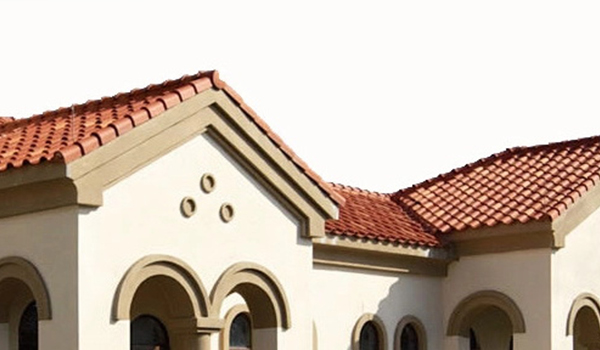

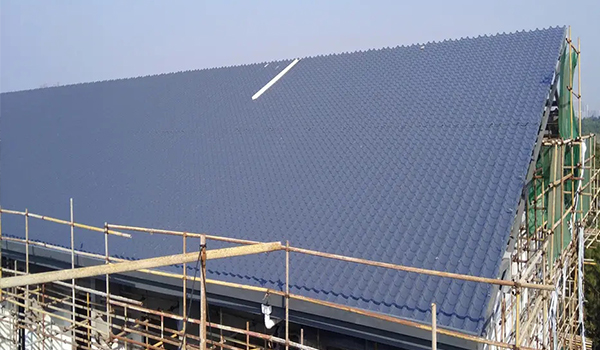

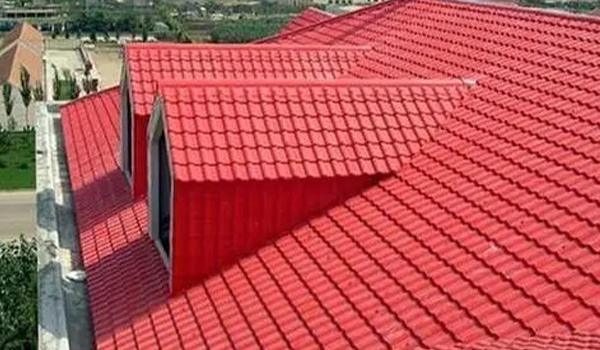

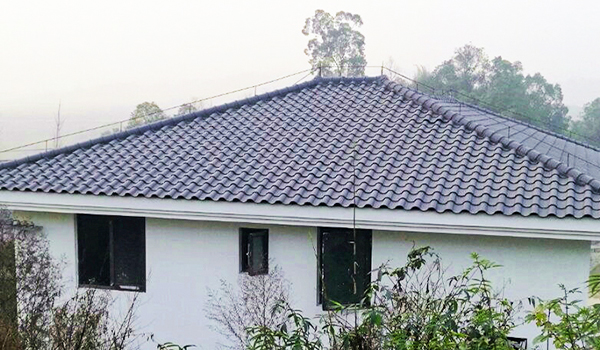

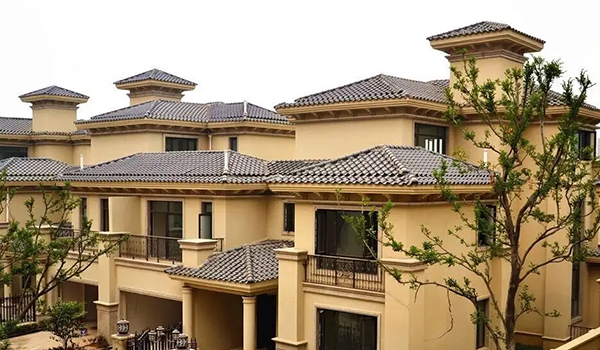

Application
Company Profile
WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. It has gained a global sales network.

Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications, slitting machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are widely used in Photovoltaic field.

SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In accordance with High Quality Assurance and Valued Credibility, we provide customers high qualified and reliable products with complete after-sales service. Our company is looking forward to establishing successful and long-term business relationships with all clients around the world in the near future.
FAQ
Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness just for exporting various types of laser machine.

Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.

Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.

Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.

Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.

Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
