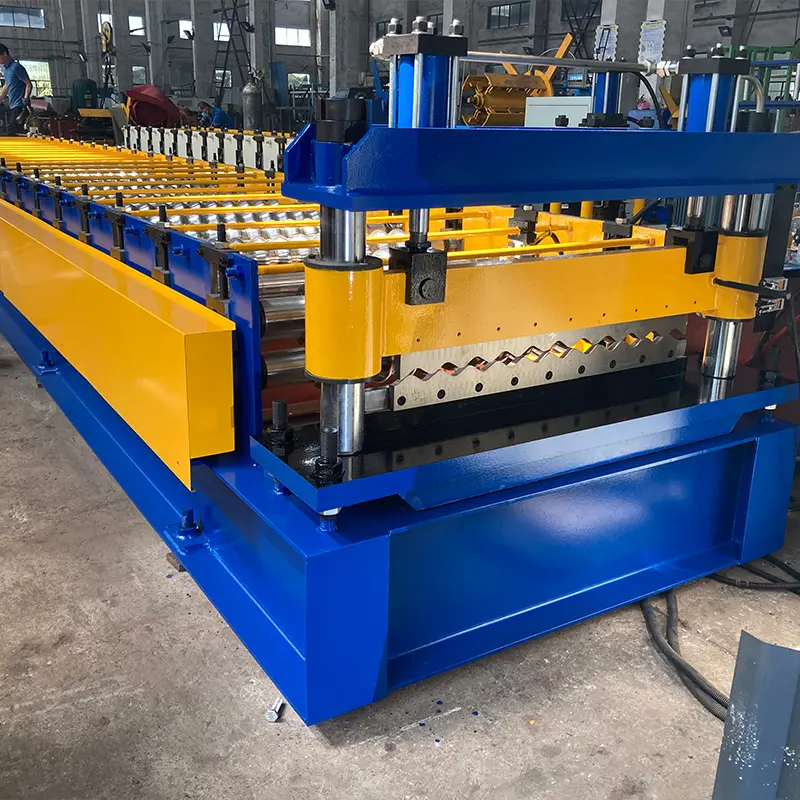

Trapezoidal Panel Roll Forming Machine
Overview
Essential details
Supply Ability
Supply Ability 30 Set/Sets per Month
Packaging & delivery
Product Description
Trapezoidal panel roll forming machine is mainly used to produce roof panels. Normally the panel thickness is 0.3-0.8mm with normal galvanized steel or colored coil. Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, corrugated panel, roof tile, glazed tile, metal deck, wall panel, standing seam, K span and ridge cap. Its products are widely used in roof and wall system in workshop construction and housing construction. In Construction Industries, we are able to manufacture more machines like main channel roll forming machine, purlin roll forming machine, drywall roll forming machine, stud roll forming machine, track roll forming machine, top hat roll forming machine, clip roll forming machine, metal deck (floor deck) roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine, corrugated roll forming machine, ridge cap roll forming machine, downspout roll forming machine, etc. We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

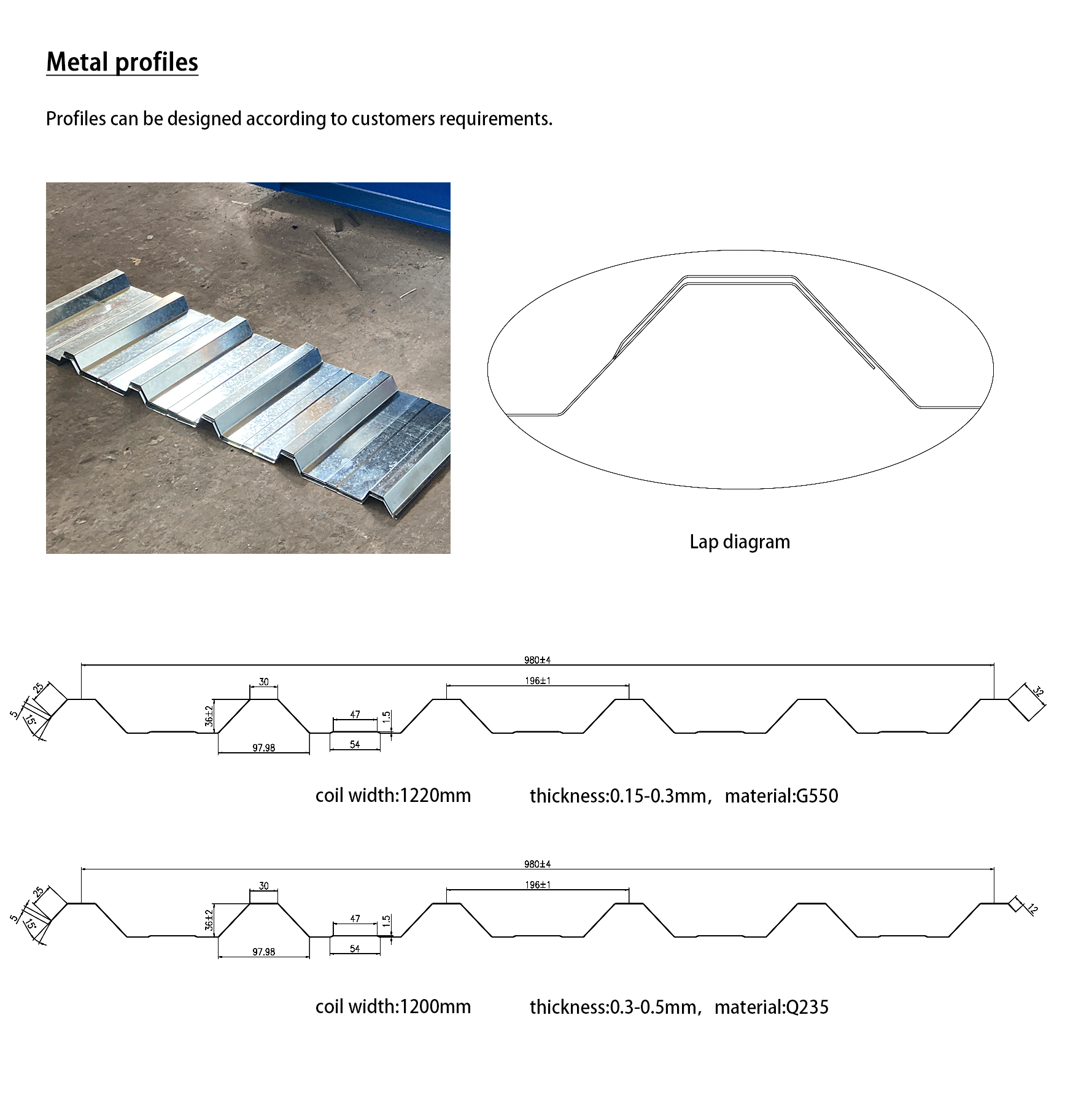

Profile Drawings

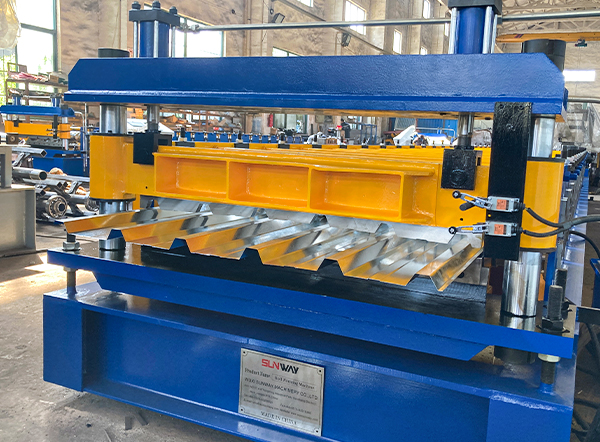

Production Line
Product Details
Product Paramenters
| Trapezoidal Panel Roll Forming Machine | ||
| Machinable Material | Machinable Material | Thickness(MM): 0.3-0.8 According To Your Requirment |
| Machinable Material | ||
| Yield Strength | 250 - 350 Mpa / 350-550Mpa | |
| Tensil Stress | 350 Mpa-550 Mpa | |
| Coil Width | 914mm, 1000mm, 1200mm, 1220mm, 1250mm etc | |
| Forming Speed | 10-35 (m/min) | * Or According To Your Requirment |
| Forming Station | 16-18 Stations 28-30 Station For Full Hard Thin Coil | * According To Your Profile Drawings |
| Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) |
| Driving System | Chain Drive | * Gearbox Drive (Optional) |
| Machine Structure | Steel Plates Welded | * Cast Iron Stands (Optional) |
| Rollers’ Material | 45# | |
| Cutting System | Hydraulic Post Cut | * Hydraulic Servo Tracking Cutter (Optional) |
| Output Way | Roller Table | * Auto Stacker (Optional) |
| Frequency Changer Brand | Yaskawa | * Siemens (Optional) |
| Power Supply | 380V 50Hz 3ph | * Or According To Your Requirment |
| Machine Color | Industrial Blue | * Or According To Your Requirment |
Application
Company Profile
FAQ
Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness just for exporting various types of laser machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.
Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.
Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
