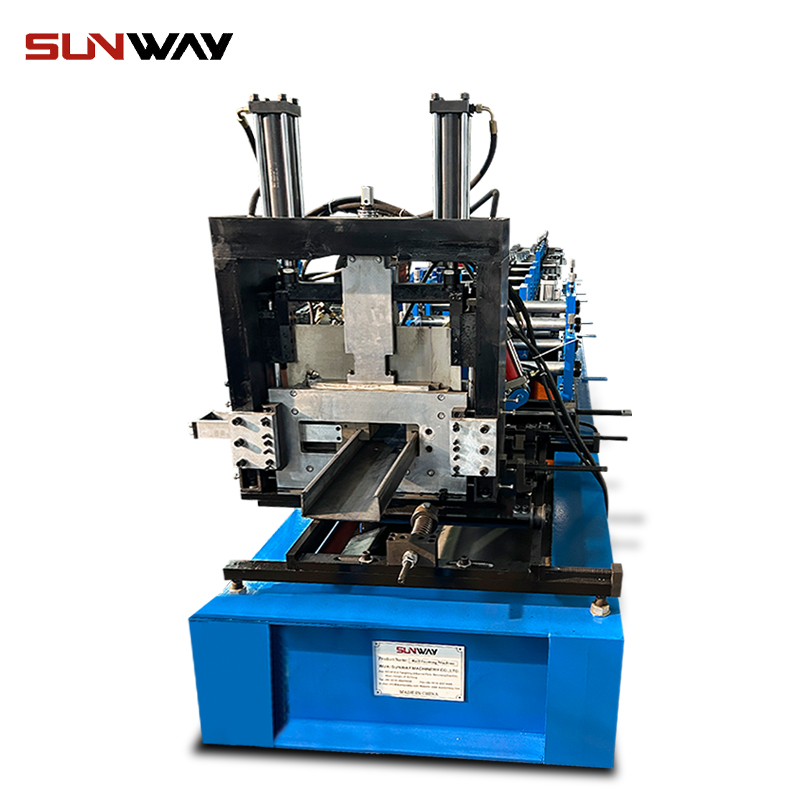

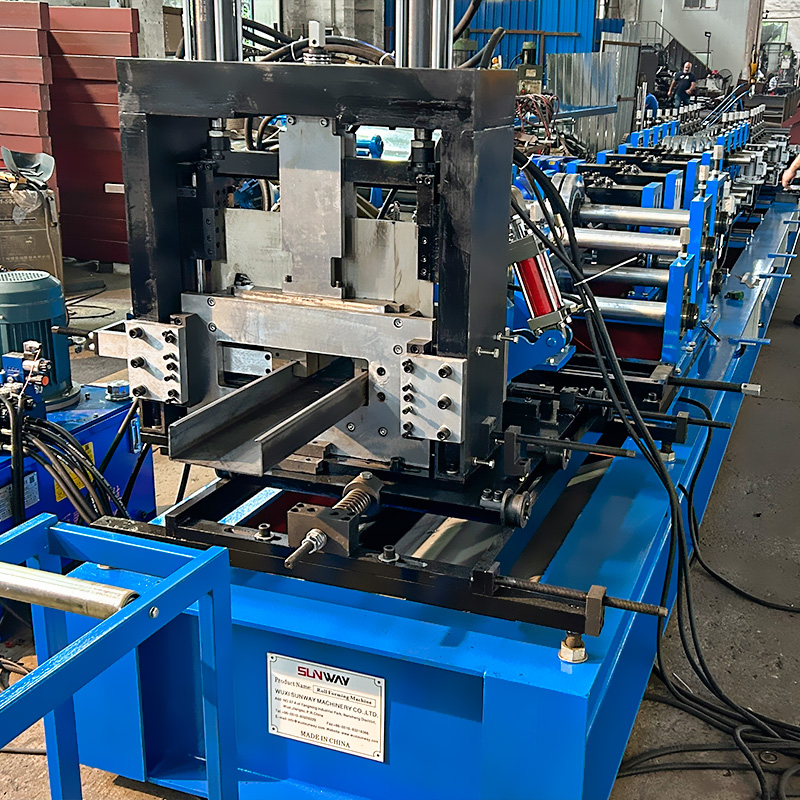

Semi Auto Size Changeable CZ Purlin Roll Forming Machine

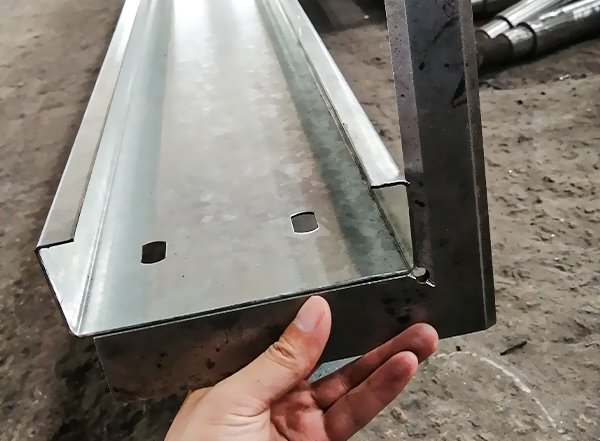

This Semi auto size changeable CZ purlin roll forming machine is used to produce C&Z shape purlins from 100-300mm
of width, normally its material thickness is 1.5-3mm.

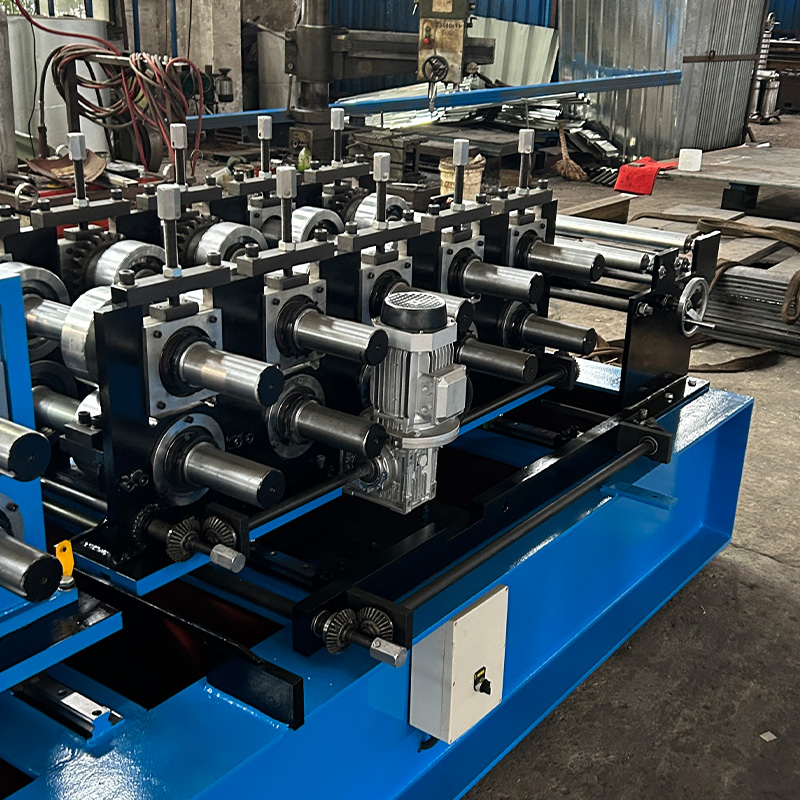

SUNWAY design this CZ purlin quick changeable roll forming machine to work with any size of the purlin, automatically
adjustable sizes by button (with fixed gauge ruler) which is different from the full automatic size changeable machine
(adjusted in PLC). Whats' more, Changing time from C to Z only need 10 minutes. Regarding the punching unit, we can design
pre punching, post punching according to your requirement. For cutting unit, you can choose the pre-cut or post-cut which is
universal cutting. The driving system we adopt the chain and mostly with gimbal / gearbox for transmission if the raw material
is thicker than 2.5mm,t his is much more strong driving power and more stable when forming the purlins.
Purlin roll forming machine is the most popular and has an extensive use in Metal Building Systems, Huge Roofing Solutions,

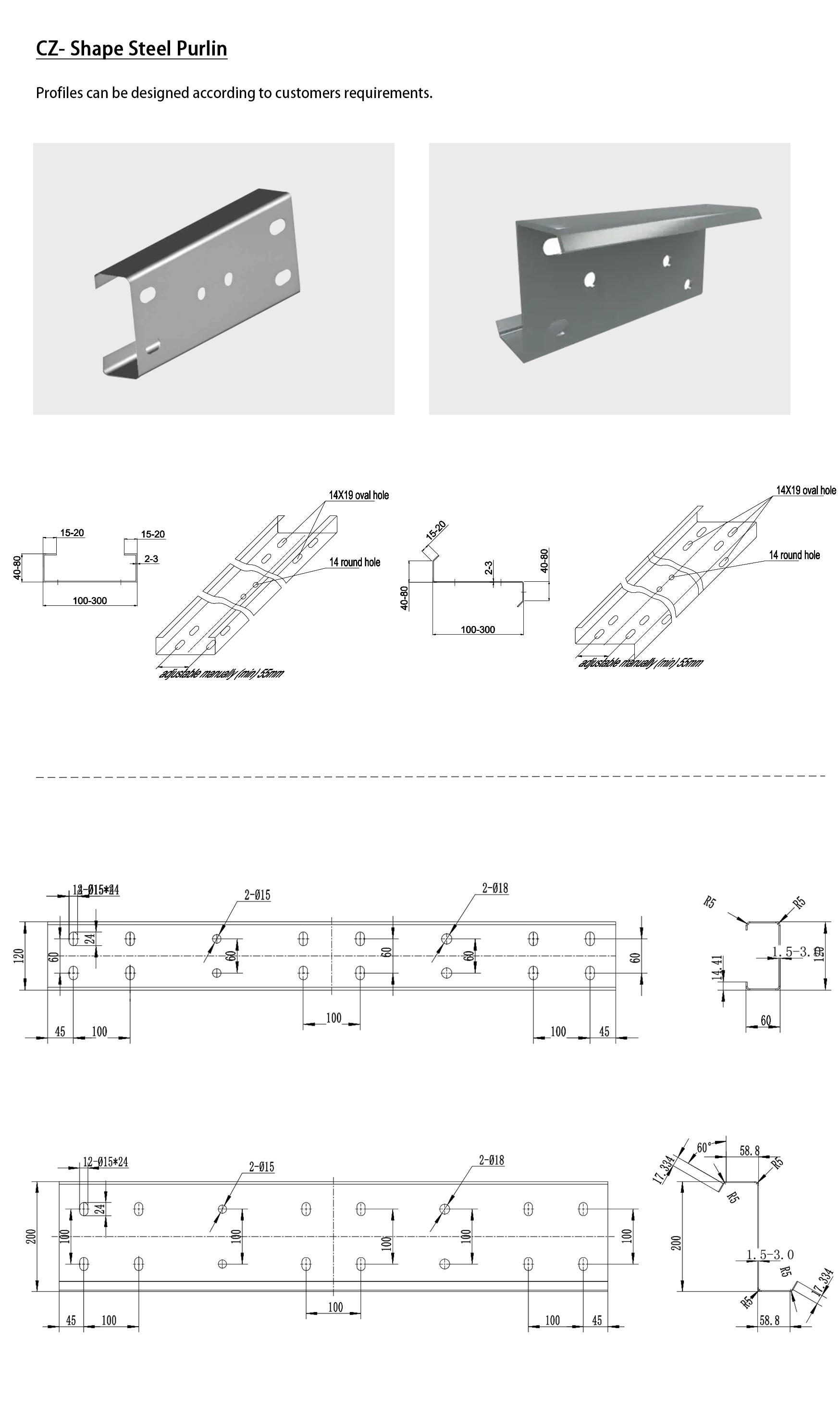

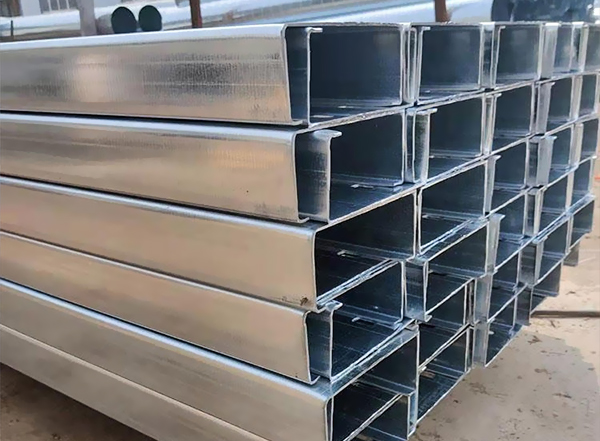

Construction and Renovation Projects etc. Our Purlin roll forming machine could produce C purlin, U purlin, Z purlin, machinable

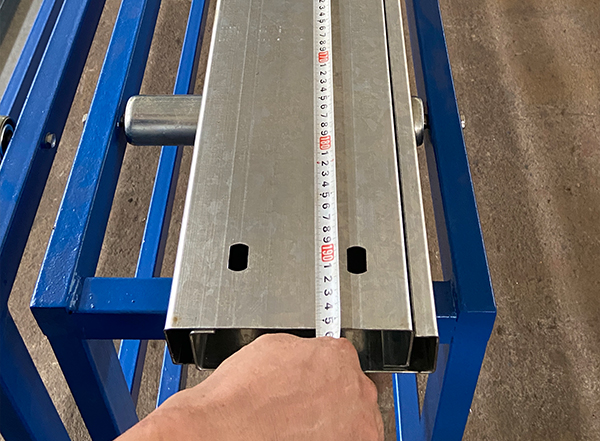

size range as follow: Width:100-300mm, Height: 50-100mm, Thickness:1.5-3mm. According to your section profile, size range,
thickness range we could provide you different solutions of purlin roll forming machine to manufacturer a complete range of
structural purlins (height and width change using automatic system by motors):
If you only need to produce few sizes, we also suggest manually change sleeves, it's more affordable.We make different solutions according to customers' drawing, tolerance and budget, offering professional one-to-one service,
adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly
functional profiles.
Sizes Automatic Changeable Roll Former
Semi Auto Size Changeable CZ Purlin Roll Forming Machine | ||
Raw Material | A) Galvanized Coil | Thickness(MM): 1.5-3 or as per customer |
B) Carbon Steel Coil | ||
Yield Strength | 250 - 550 Mpa | |
Tensil Stress | G350 Mpa-G550 Mpa | |

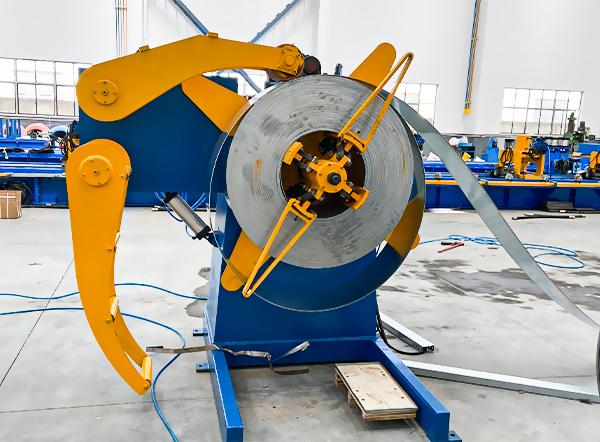

Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) |

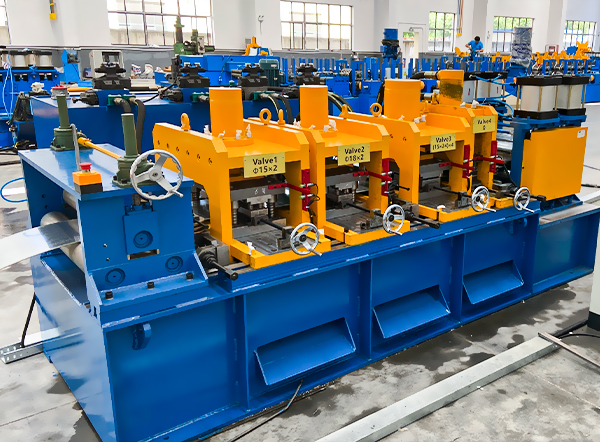

Punching System | Hydraulic Punching Station | * Pre-punch / Post Punch (Optional) |

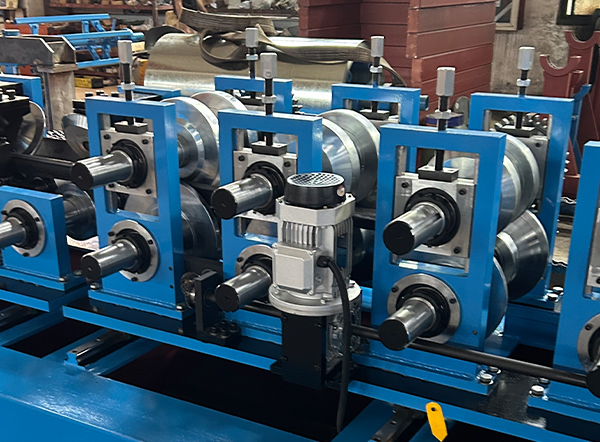

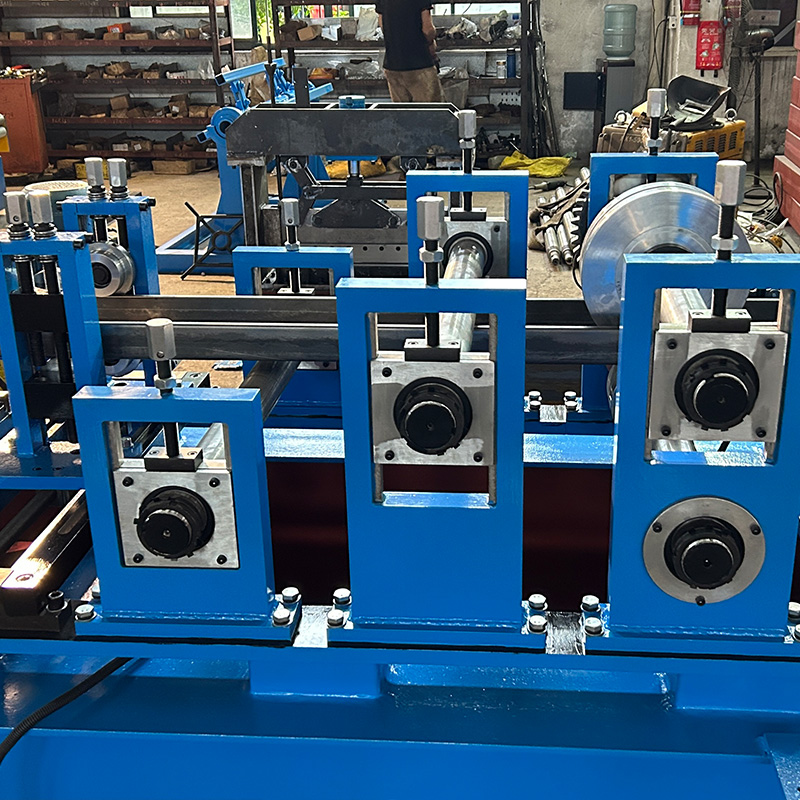

Forming Station | 16-18 Stations | |

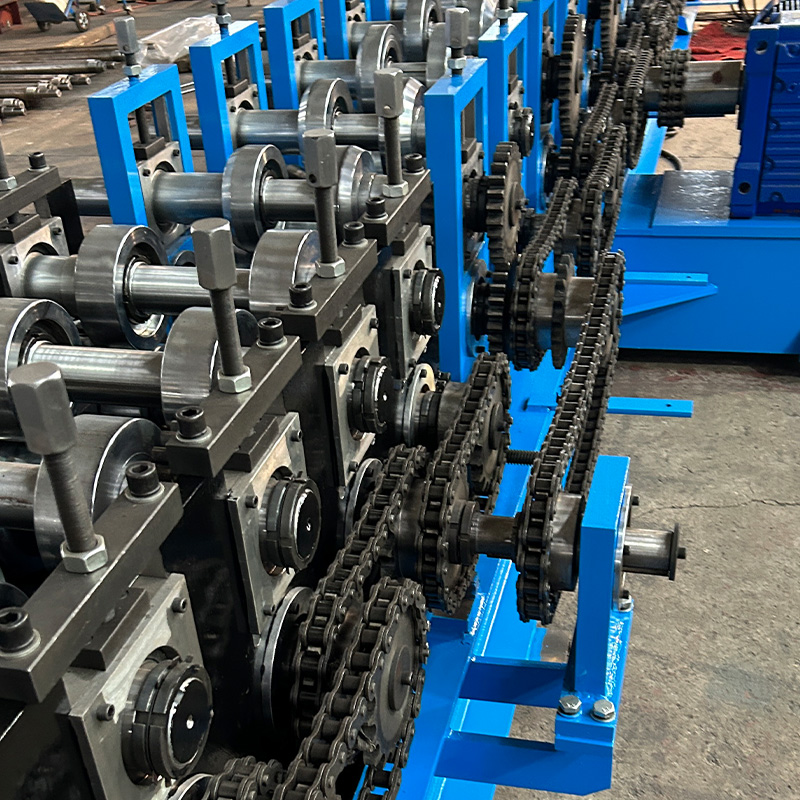

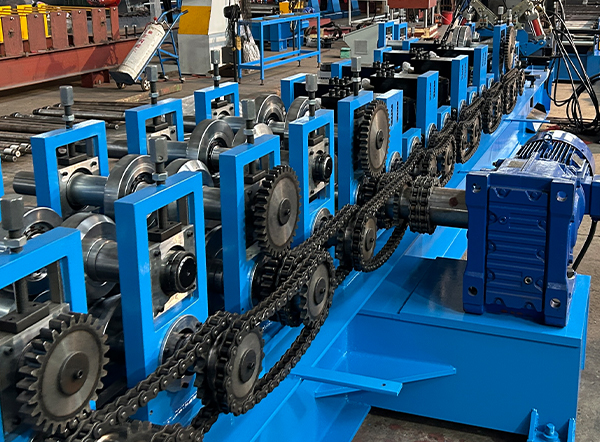

Driving System | Chain Drive | * Gearbox Drive (Optional) |
Machine Structure | Wall Panel Station | * Forged Iron Station (Optional) |
Forming Speed | 10-20 (M/MIN) | * Or According To Your Requirment |
Rollers’ Material | GCr 15 | * Cr12Mov (Optional) |

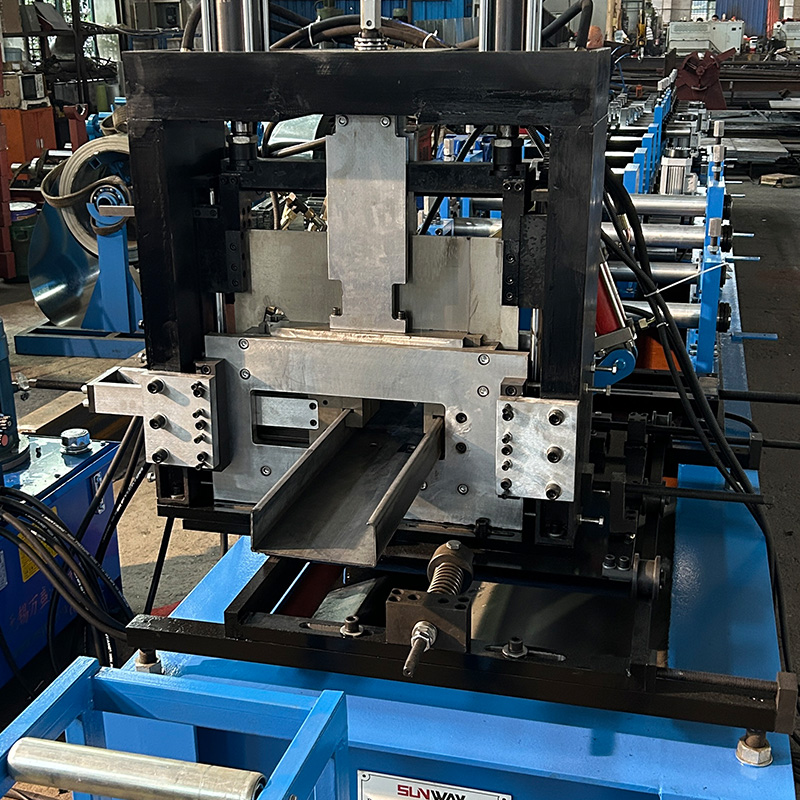

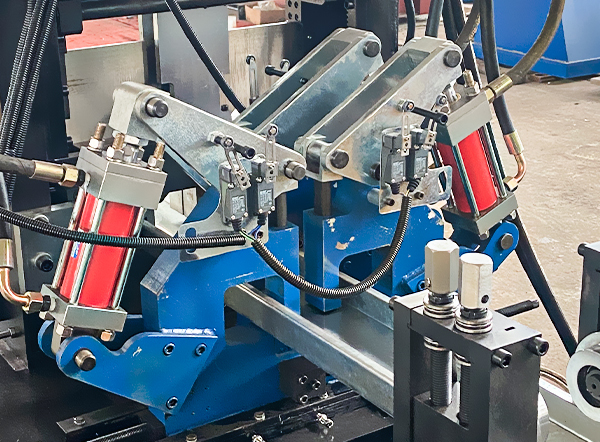

Cutting System | Pre-cutting | * Post- universal Cutting (Optional) |
Frequency Changer Brand | Yaskawa | * Siemens (Optional) |
PLC Brand | Panasonic | * Siemens (Optional) |
Power Supply | 380V 50Hz | * Or According To Your Requirment |
Machine Color | Industrial Blue | * Or According To Your Requirment |
WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design,
development and production of cold roll forming machines. All products comply with international quality standards and are
greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and
Australia and so on. It has gained a global sales network.
Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good
quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is
specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for
roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications, slitting
machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are widely used
in Photovoltaic field.
SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In accordance with High
Quality Assurance and Valued Credibility, we provide customers high qualified and reliable products with complete after-sales
service. Our company is looking forward to establishing successful and long-term business relationships with all clients
around the world in the near future.
A:We are factory with professional production team and service consciousness just for exporting various types of roll
forming machine.
Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.
Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will
send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we
will sell them at cost.
Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.
Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
