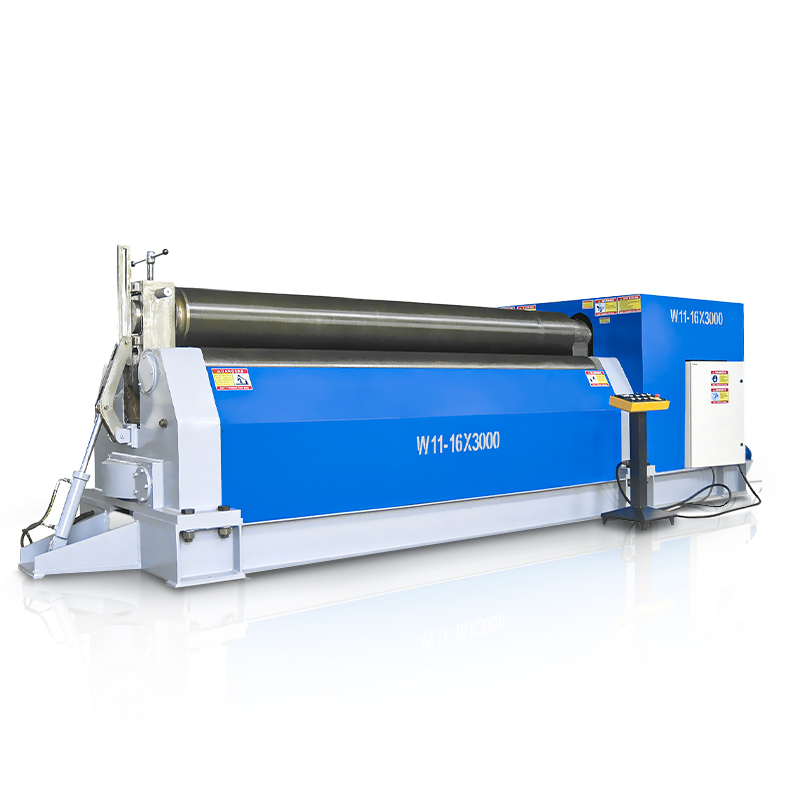

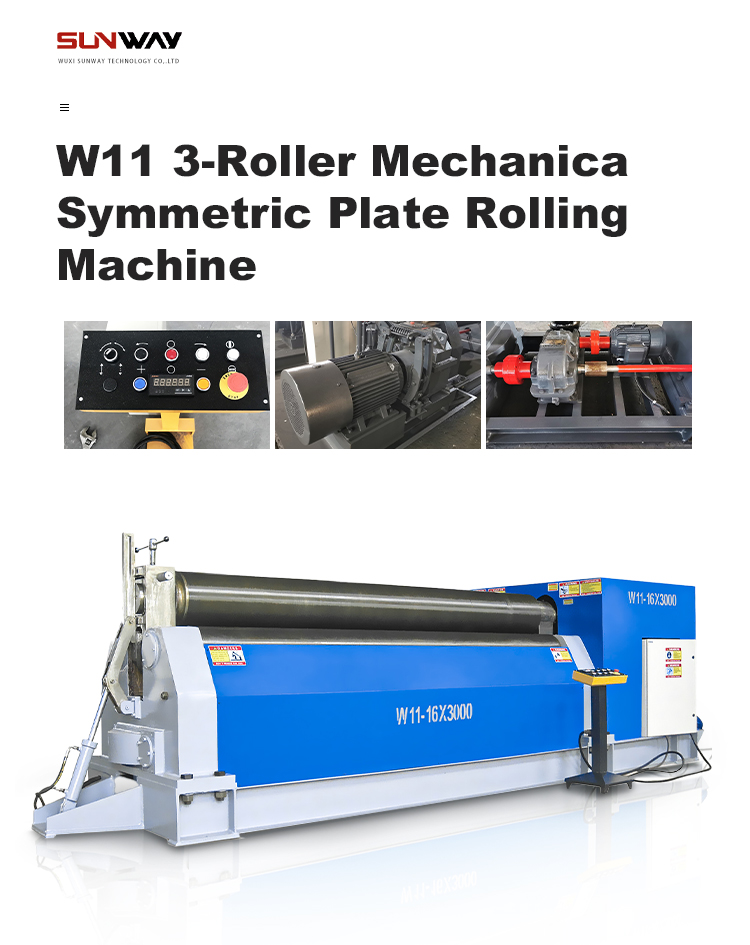

W11 3-roller Mechanical Symmetric Plate Rolling Machine

Specification
Product Description
Feature

This kind of plate bending machine belongs to 3 roller symmetrical mechanical structure. The top roller

moves up and down at the central part of the two bottom rolls. Screw nut and worm gear both play role

of transmission. Two bottom rolls act as main driving rolls. Through the meshing,they are able to rotate

between the output gear of the gearbox and the bottom roller, so as to supply the torque to bend plate.

This type of machine does well in compact structure, easy operation and convenient maintenance.

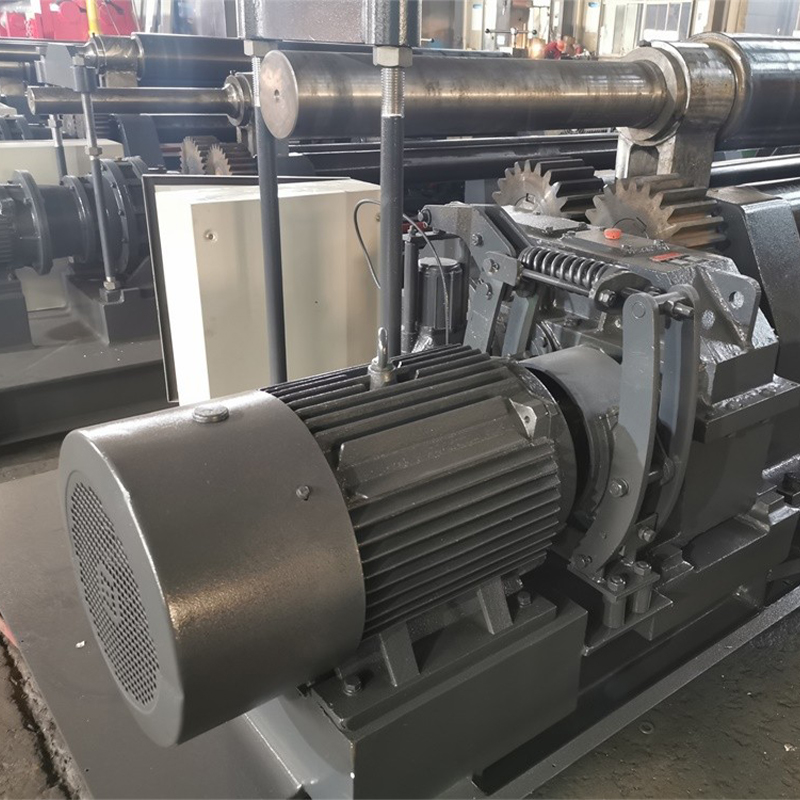

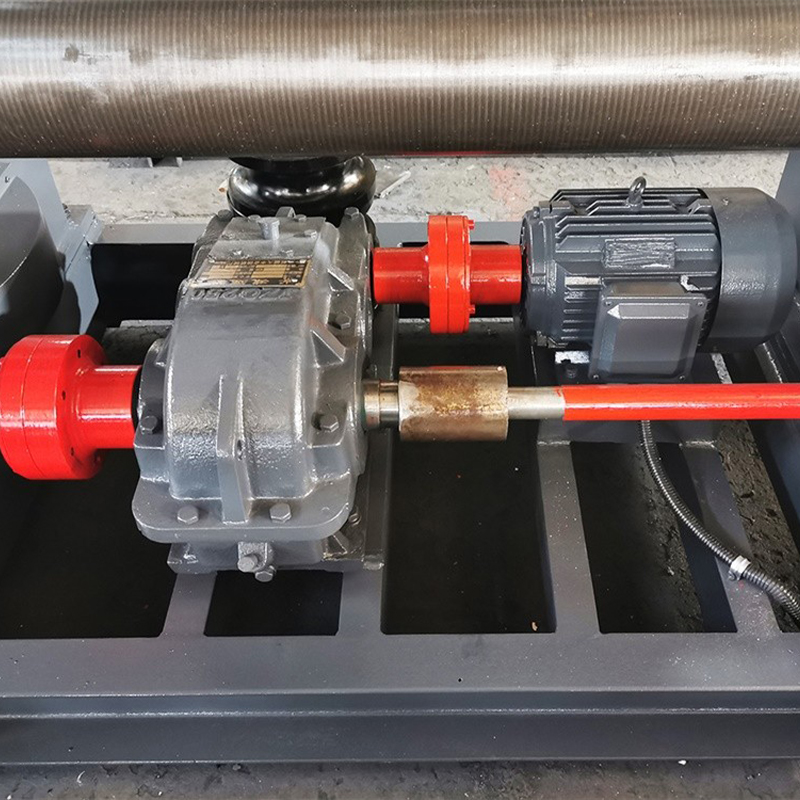

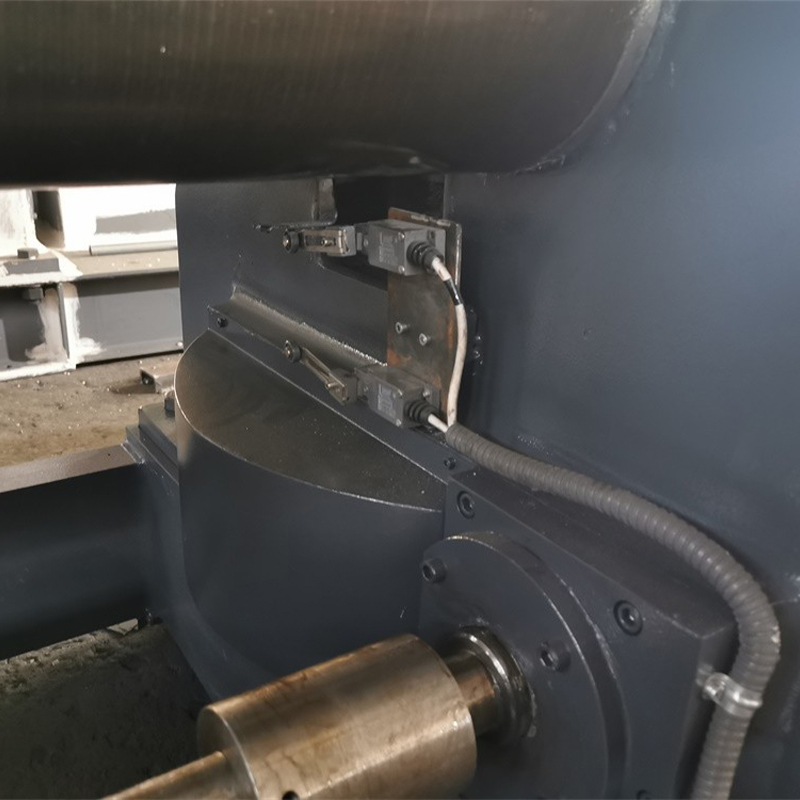

Details Images
Standard Components
* Movable Control Panel
* Manual Drop End

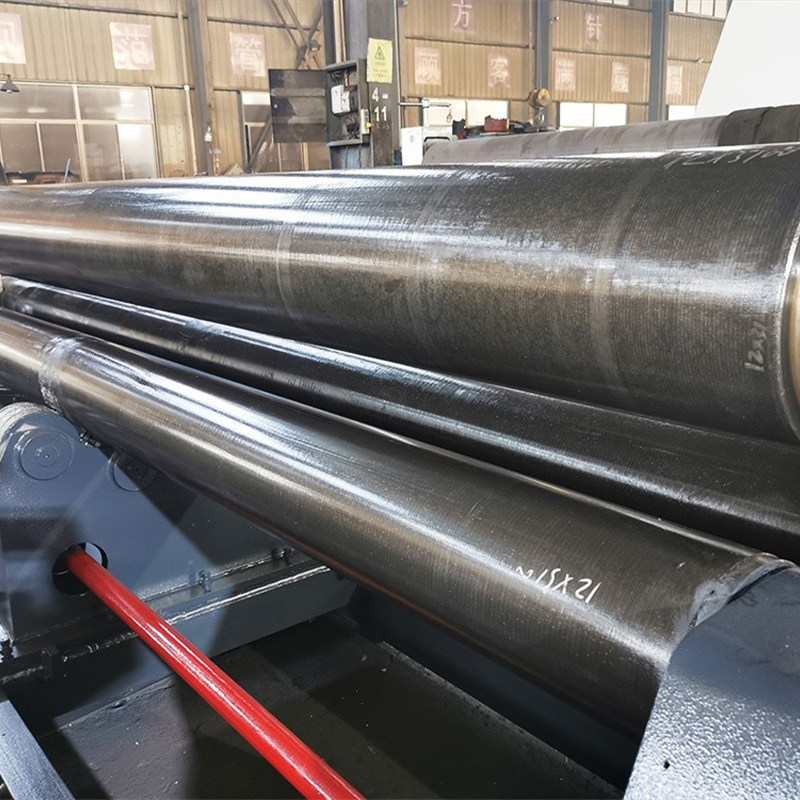

* Solid Rolls Made By Steel 45
* Machine Cover
Optional Equipment
* Cone Bending Device
* Extended Shaft For Profile Bending
* Safety Cable
* Digital Readout For Bottom Rolls
Product Paramenters
Model
Max. Bending Thickness(mm)
Max. Bending width(mm)
Yield Limit
(Mpa)
Coiling Speed
(m/min)
W11-4x1500
4
1500
245
5
W11-4x2000
4
2000
245
5
W11-6x1500
6
1500
245
5
W11-6x2000
6
2000
245
5
W11-6x2500
6
2500
245
4.5
W11-8x1500
8
1500
245
5
W11-8x2000
8
2000
245
4.5
W11-8x2500
8
2500
245
4.5
W11-12x2000
12
2000
245
4.5
W11-12x2500
12
2500
245
4.5
W11-12x3000
12
3000
245
4
W11-16x2000
16
2000
245
4.5
W11-16x2500
16
2500
245
4
W11-16x3000
16
3000
245
4
W11-20x2000
20
2000
245
4
W11-20x2500
20
2500
245
4
W11-25x2000
25
2000
245
4
W11-25x2500
25
2500
245
4
W11-30x2000
30
2000
245
4
W11-30x2500
30
2500
245
4
W11-30x3000
30
3000
245
4
W11-40x2500
40
2500
245
4
Model
Top Roller Diameter(mm)
Bottom Roller Diameter(mm)
Central Distance (mm)
Main Power
(KW)
W11-4x1500
150
140
200
4
W11-4x2000
160
150
220
4
W11-6x1500
160
150
220
4
W11-6x2000
170
160
220
5.5
W11-6x2500
180
170
250
5.5
W11-8x1500
170
160
220
5.5
W11-8x2000
180
170
250
5.5
W11-8x2500
240
180
280
7.5
W11-12x2000
240
180
280
7.5
W11-12x2500
260
220
320
11
W11-12x3000
280
240
360
11
W11-16x2000
260
220
320
11
W11-16x2500
280
240
360
11
W11-16x3000
340
270
440
15
W11-20x2000
280
240
360
11
W11-20x2500
340
270
440
15
W11-25x2000
340
270
440
15
W11-25x2500
370
280
480
22
W11-30x2000
370
280
480
22
W11-30x2500
420
360
550
30
W11-30x3000
450
390
600
30
W11-40x2500
500
400
600
37
