W11F 3 Rolls Asymmetrical Rolling Machine

Email: E-mail:sales@wuxisunway.com

Tel: +86-510-83209229

Whatsapp: +86-13616182007

Specification
Product Description

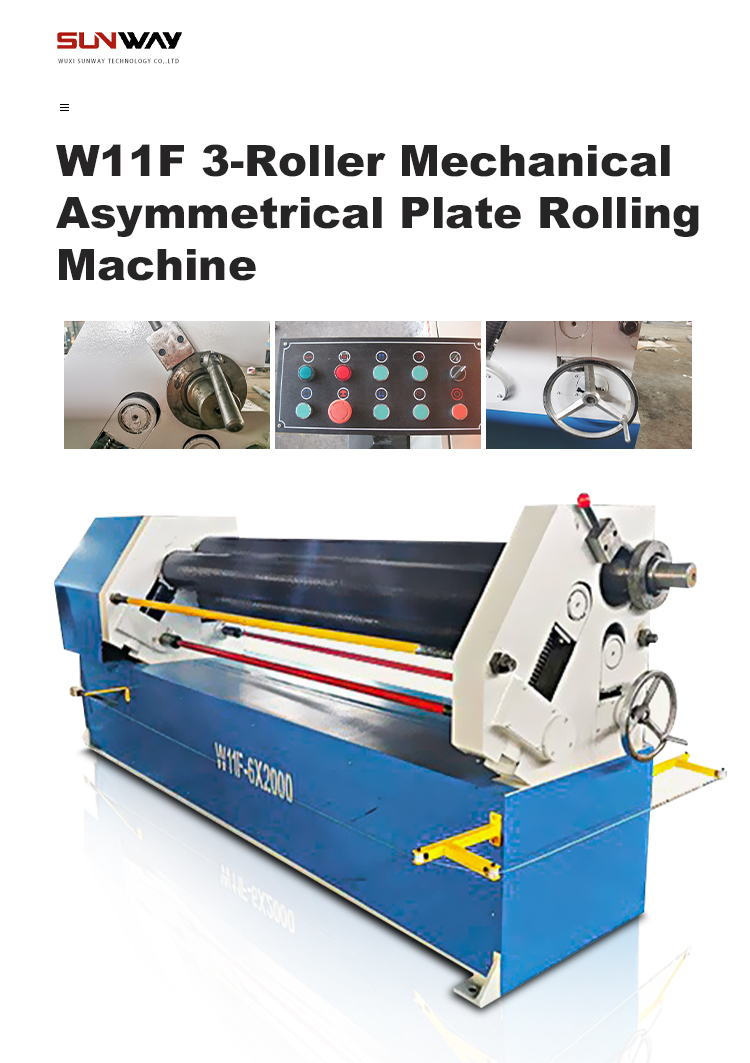

3 Rolls Asymmetrical Plate Rolling Machine
The useful length of w11f plate rolling machine is from 1000mm to 2500mm.
The range of valid thickness is from 2 to 6mm.

This machine has characteristics of user-friendly design and convenient operation which is always equipped

with asymmetrical solid rolls and easy initial pinch.It’s very suitable for thinner plate.

Feature
* Simple Initial Pinch
* Flexible Manual Drop End
* High-efficiency Machine Processing
* Specialize In Small Diameter Cylinder Bend
* High Quality Solid Rolls Are Applied To Bend Stainless Steel

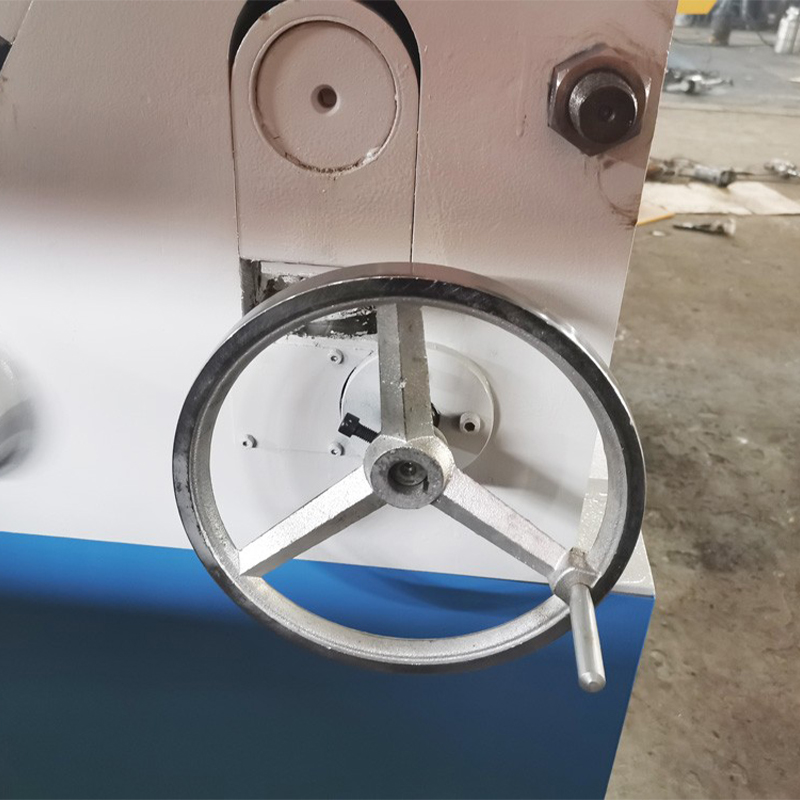

* Easily-operated Hand Wheel Is Used To Help Lateral Roll
Details Images
Standard Components

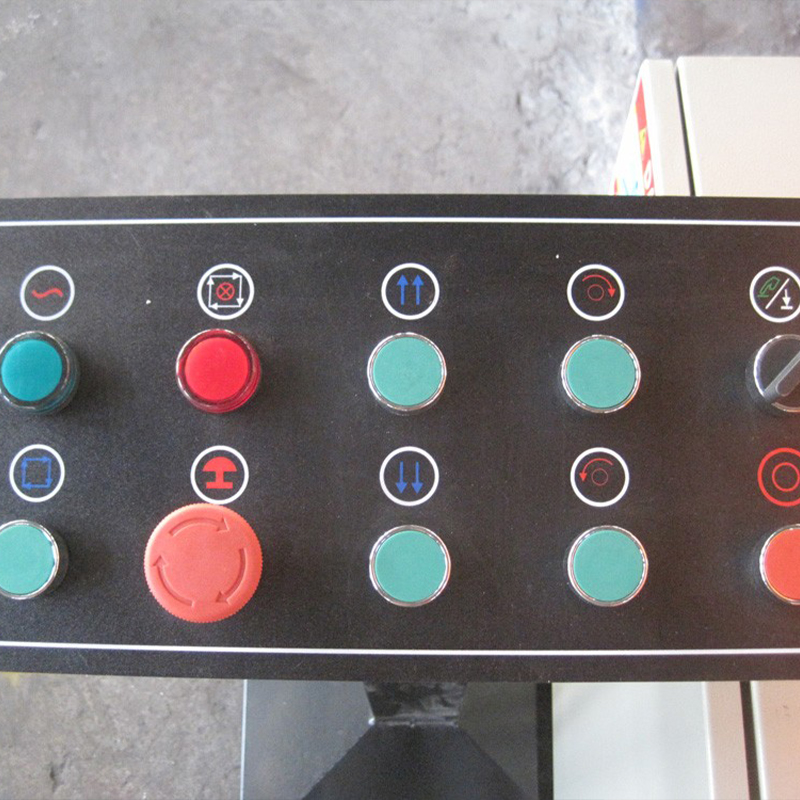

* Movable Control Panel
* Hardened Rolls
* Machine Cover
* Manual Drop End
Optional Equipment
* Safety Cable
* Extended Shaft For Section Bending
* Digital Readout
Product Paramenters
Model
Max. Bending Thickness(mm)
Pre-bending Thickness (mm)
Max. Bending Width(mm)
Yield Limit(Mpa)
W11F-2x1000
2
2
1000
245
W11F-2x1500
2
2
1500
245
W11F-2x2000
2
2
2000
245
W11F-3x1000
3
3
1000
245
W11F-3x1500
3
3
1500
245
W11F-4x1000
4
4
1000
245
W11F-4x1500
4
4
1500
245
W11F-4x2000
4
4
2000
245
W11F-6x1000
6
6
1000
245
W11F-6x1500
6
6
1500
245
W11F-6x2000
6
6
2000
245
Model
Top Roller Diameter(mm)
Bottom Roller Diameter(mm)
Side Roller Diameter(mm)
Main Power
(KW)
W11F-2x1000
110
110
110
2.2
W11F-2x1500
120
120
120
2.2
W11F-2x2000
130
130
130
2.2
W11F-3x1000
120
120
120
2.2
W11F-3x1500
130
130
130
2.2
W11F-4x1000
130
130
130
2.2
W11F-4x1500
135
135
135
3
W11F-4x2000
150
150
150
4
W11F-6x1000
140
140
140
3
W11F-6x1500
150
150
150
4
W11F-6x2000
170
170
170
5.5
