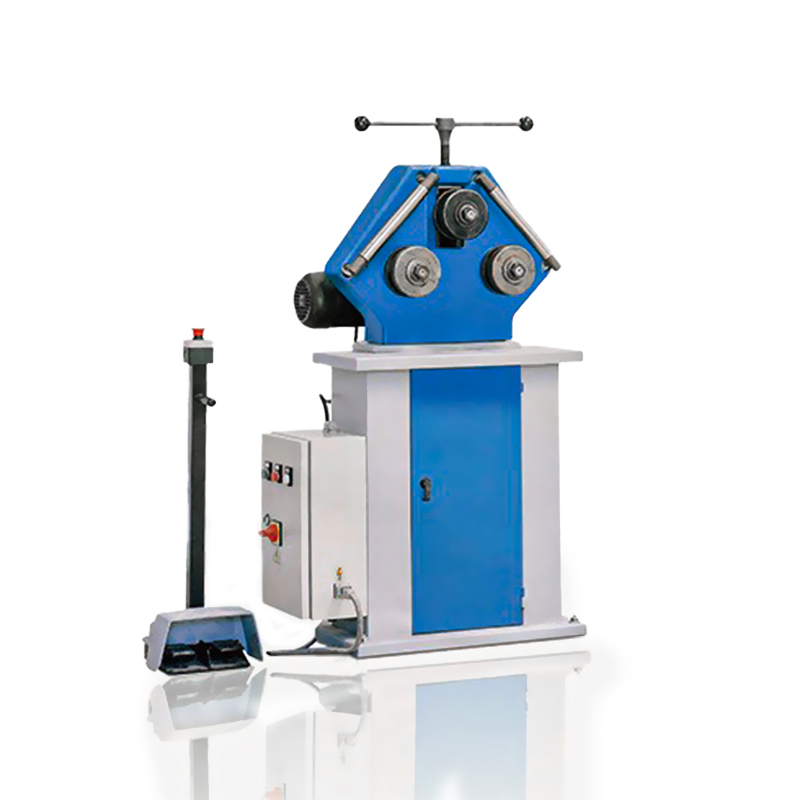

WQJ-400 WQJY-50 Light Duty Profile Bending Machine

Email: E-mail:sales@wuxisunway.com

Tel: +86-510-83209229

Whatsapp: +86-13616182007

Specification

Product Description

Details Images

Feature

* Customers are able to select manual type or hydraulic type according to actual needs.

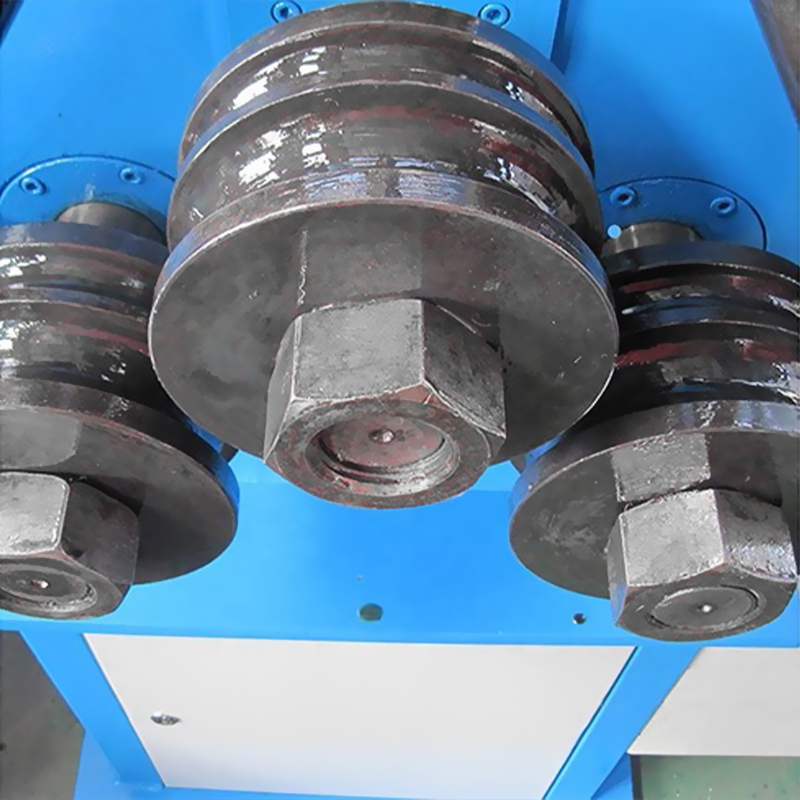

* The two bottom rolls are always fixed.For the sake of bending plate,electric motor and gear box make them rotate so as to supply the torque.
* Manually adjusting the height of the screw pole drives top roller to move.Adjusting hydraulic cylinder has same effect.
* High-quality bending can be guaranteed when the side guide rollers are installed in both sides of the machine.

Product Paramenters

	Max. Section Size
Plate Flat Bending	80x15mm
Plate Vertical Bending	50x10mm
Tube Bending	50x2mm
Rod Bending	30mm
Square Bending	50x30x3mm
Channel bending	50x25x5mm
Angle Inner Way	35x35x5mm
Angle Outer Way	40x40x5mm

	WQJY-50
Yield Limit	245Mpa
Down Roller Speed	180mm/ min
Up Axis Diameter	70 mm
Down Axis Diameter	70mm
Mold Diameter	180mm
Minimum Bending Diameter	300mm
Bending Speed	5m/min
Hydraulic Pressure	19.5Mpa
Motor Power	1.5KW
Hydraulic Motor	1.5KW
Weight	550KGS
Dimension	1000x1000x1650mm

	WQJ-400
Up And Down Axis Diameter	70mm
Up Mold Diameter	180mm
Down Mold Diameter	180mm
Minimum Bending Diameter	400mm
Bending Speed	5m/min
Yield Limit	245MPa
Motor Power	1.5KW
Gear Box	BLD2-71
Dimension	800x760x1300mm
Weight	450KGS

Company Profile

WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. It has gained a global sales network.

Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications, slitting machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are widely used in Photovoltaic field.

SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In accordance with High Quality Assurance and Valued Credibility, we provide customers high qualified and reliable products with complete after-sales service. Our company is looking forward to establishing successful and long-term business relationships with all clients around the world in the near future.

FAQ

Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness just for exporting various types of roll forming machine.

Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.

Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.

Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.

Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.

Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
