Specification
Product Description
       This Slitting Line (i.e. metal coil slitting machine/ slitter line) is used for processing the coil into narrow steel strips with desired width.        This line is adaptable to process cold-rolled and galvanized coils, silicon steel coil, stainless coils, pre-painted coils, aluminum coils, and all sorts of plate and coated coils. And it is widely applies to many industries like automobiles, containers, household appliances, food packing, construction material etc.        It consists of coil lifter, decoiler, slitter, scrap recoiler, damping device, recoiler etc, accompany of feeder, loop bridge, pinch etc.        It can be complemented by additional slitting unit that provides rapid change of blades. The slitting units are moved inline and offline by rails and the whole process is controlled from the control panel.

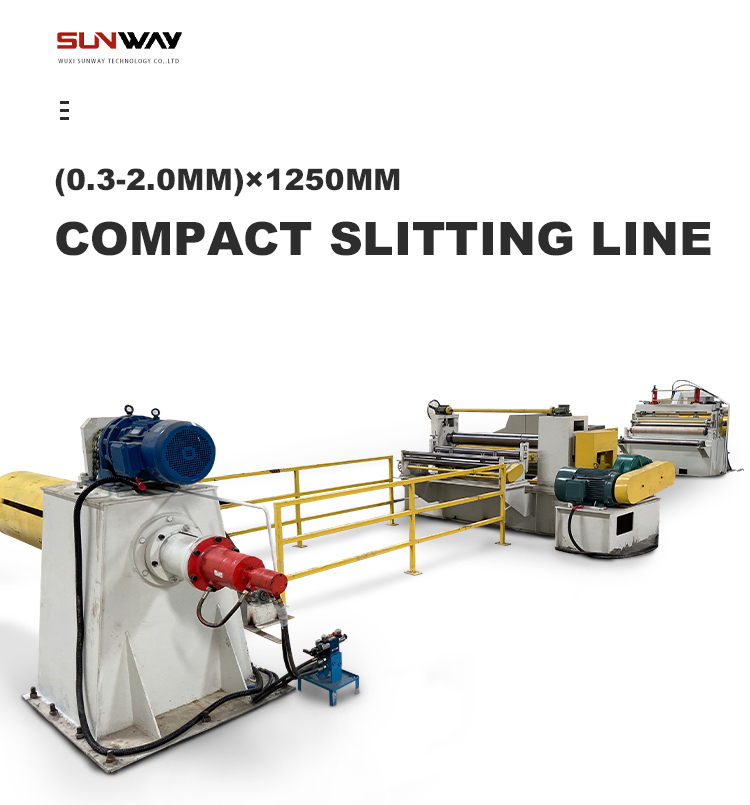

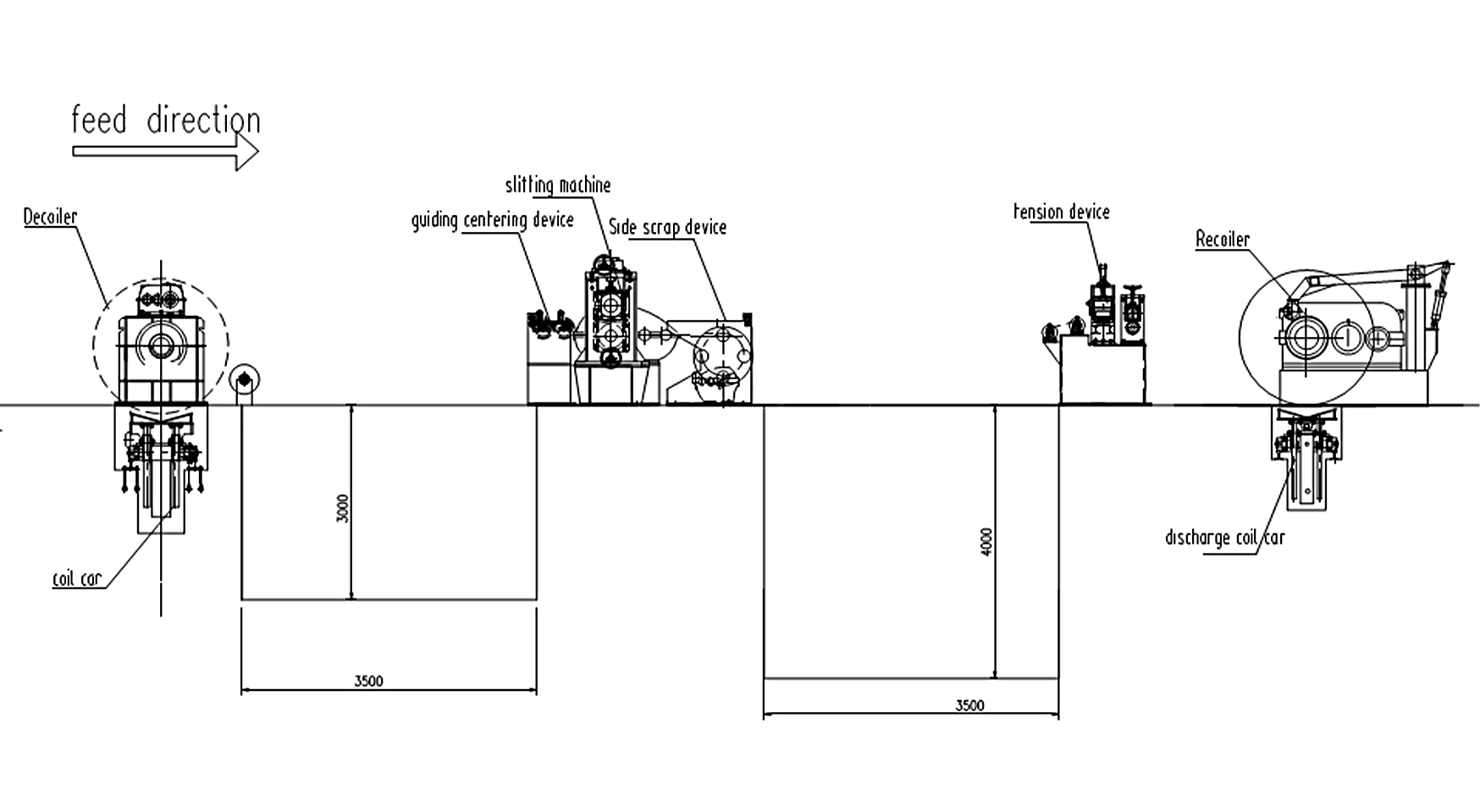

Production Line
Product Details

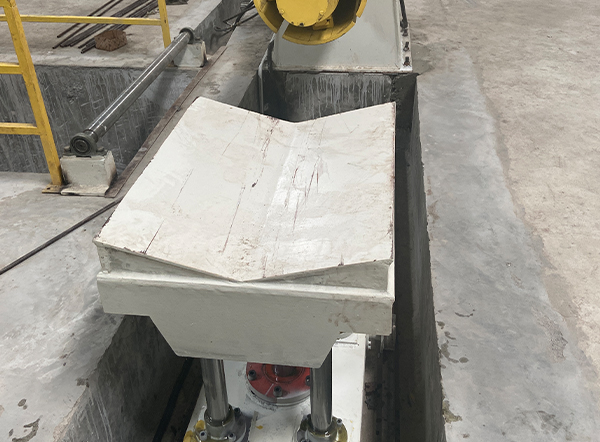

Hydraulic Entry Coil Car

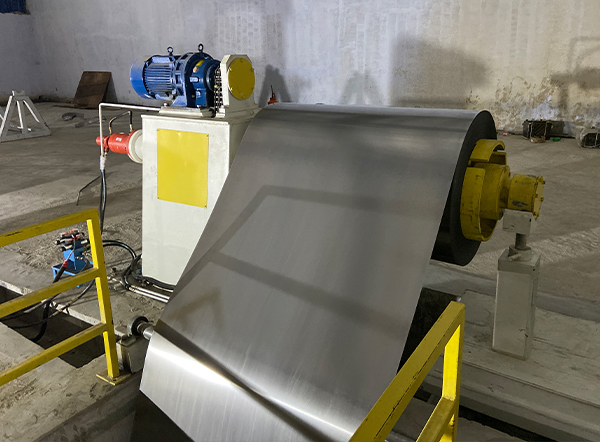

Hydraulic De-coiler
Guiding Cenfering Device

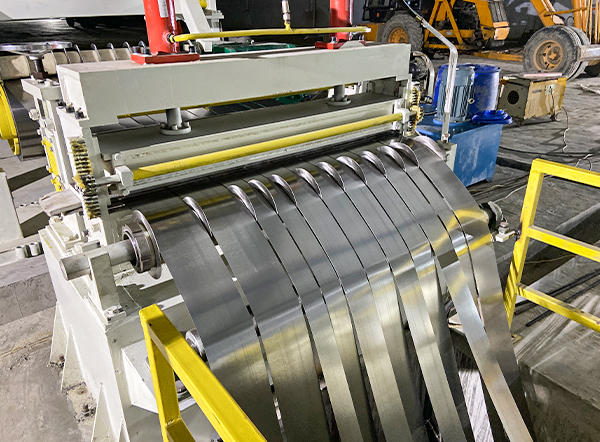

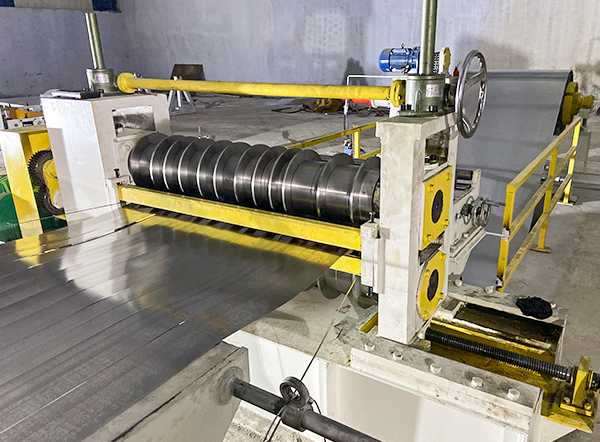

Slitting Machine

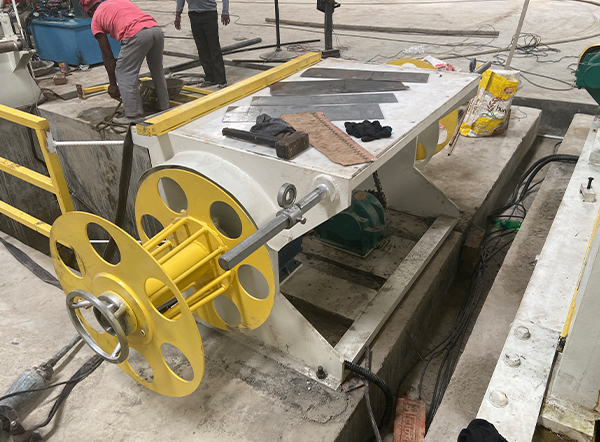

Side Scrap Device
Hydraulic Tension Stand

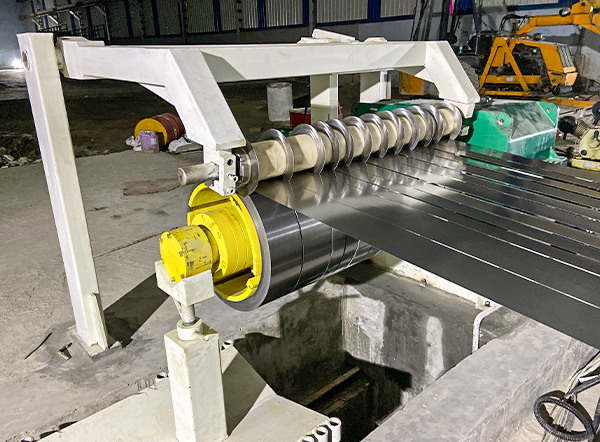

Recoiler

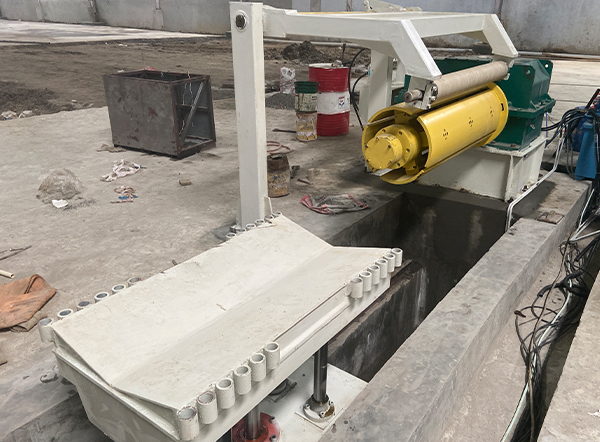

Hydraulic Exit Coil Car
Product Paramenters

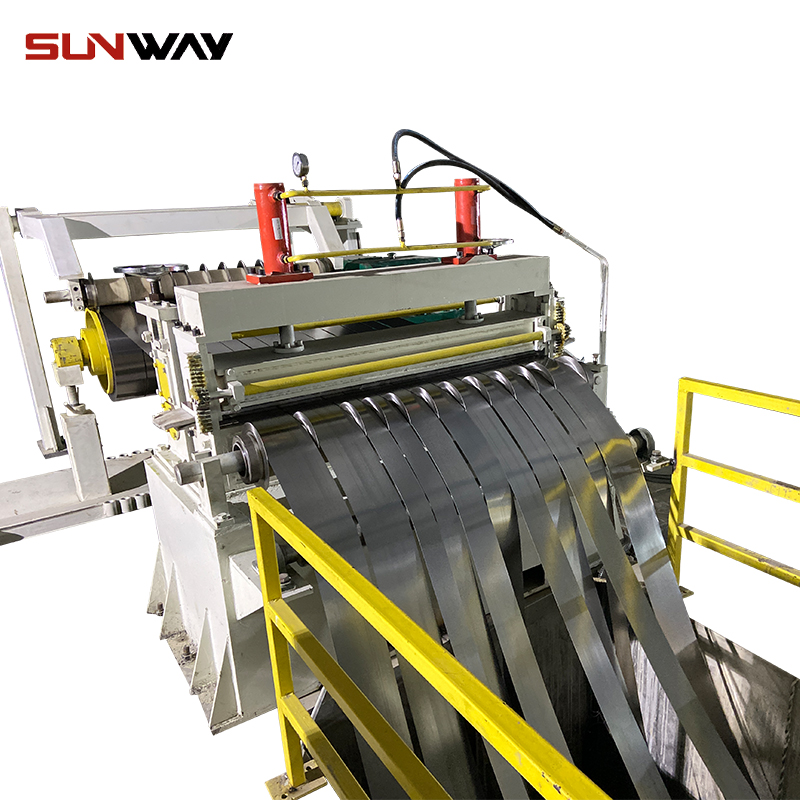

Metal Coil Slitting Machine / Slitting Line
Control Model
Frequency Conversion Control
Materials
Cold Rolled Steel, Galvanized Steel
Thickness
0.25-2.0mm (PPGI,GI)
Width
300-1250mm
Coil I.D.
480-520mm (Customized)
Coil O.D.
≤1400
Coil Weight
8T
Slitting Blade Shaft
Φ120mm
Blade Specification
Φ220×Φ120×10mm
Blade Material
6CrW2Si
Line Speed
≤40m/min
Power of Decoiler
11KW
Power of Slitting Machine
15KW
Power of Recoiler
30KW
Quantity of Strips (Max)
0.3-1.0mm, Max 10 Strips
1.0-2.0mm, Max 6 Strips
Width Tolerance
≤±0.05 mm
The Direction of Whole Line
From right to left, the operate table faces the machines
Power
380V/3Ph/50Hz( Customized)
Operation People
1 Technician, 1 General Worker
Color
Customized
Company Profile
WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. It has gained a global sales network.

Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications, slitting machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are widely used in Photovoltaic field.

SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In accordance with High Quality Assurance and Valued Credibility, we provide customers high qualified and reliable products with complete after-sales service. Our company is looking forward to establishing successful and long-term business relationships with all clients around the world in the near future.
FAQ
Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness just for exporting various types of roll forming machine.

Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.

Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.

Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.

Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.

Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
