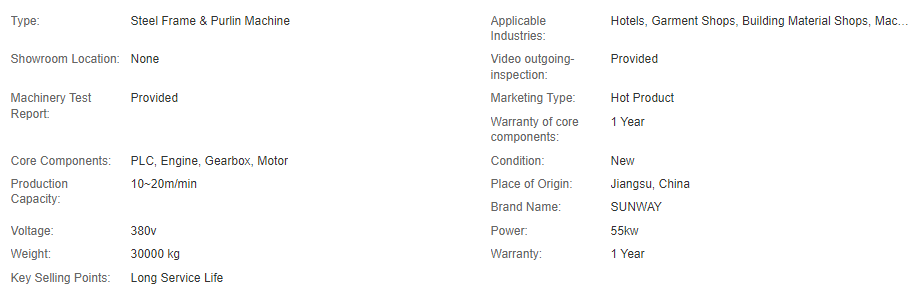

Essential details

Supply Ability

Packaging & delivery

Product Description

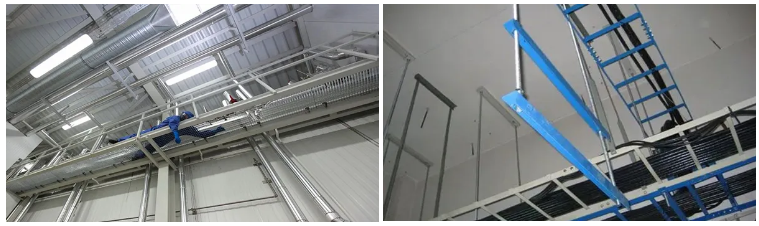

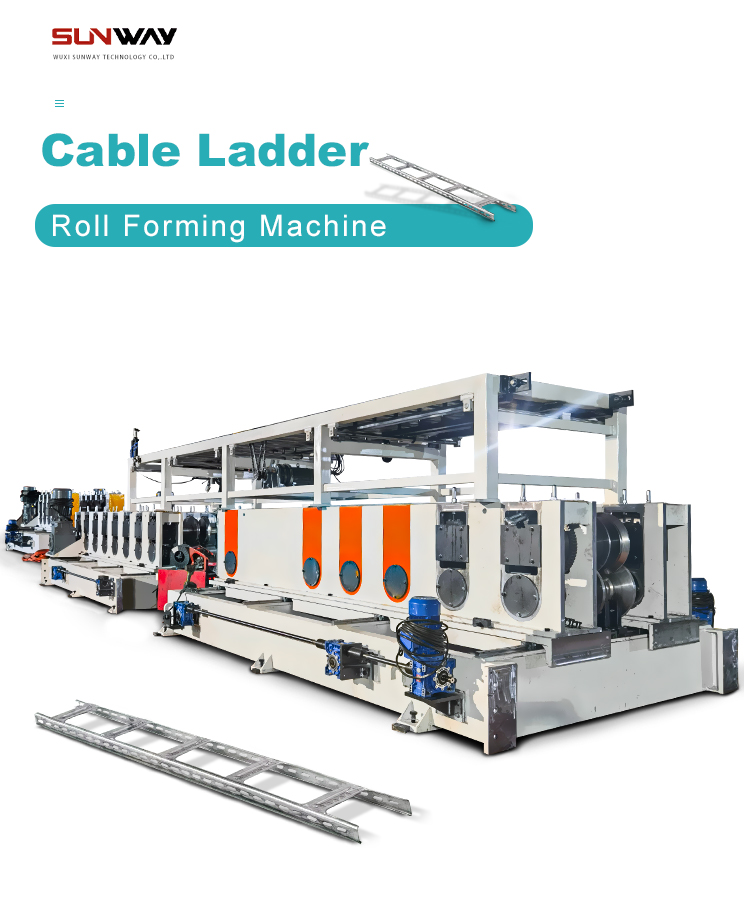

Cable Ladder roll forming machine also sometimes is called Ladder type Cable Tray roll forming machine. This line is commonly used to make different kinds of cable trays, which is widely used in electrical fields, decorations, industrial constructions etc. This cable ladder roll forming line can produce 100mm to 300mm or more width cable trays and cable ladders with automatic width adjustment. Users only need to key in the width of the cable ladders, the roller stands can move in and out to adjust the gap between the rollers for various cable ladders widths. Main material can be used are cold / hot rolled steel coils with 1.0mm to 2.5mm thickness. In Electrical & energy Industries, we are able to manufacture more related machines like Solar strut channel roll forming machine, DIN rail roll forming machine and Electrical Enclosure Box roll forming machine etc. We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

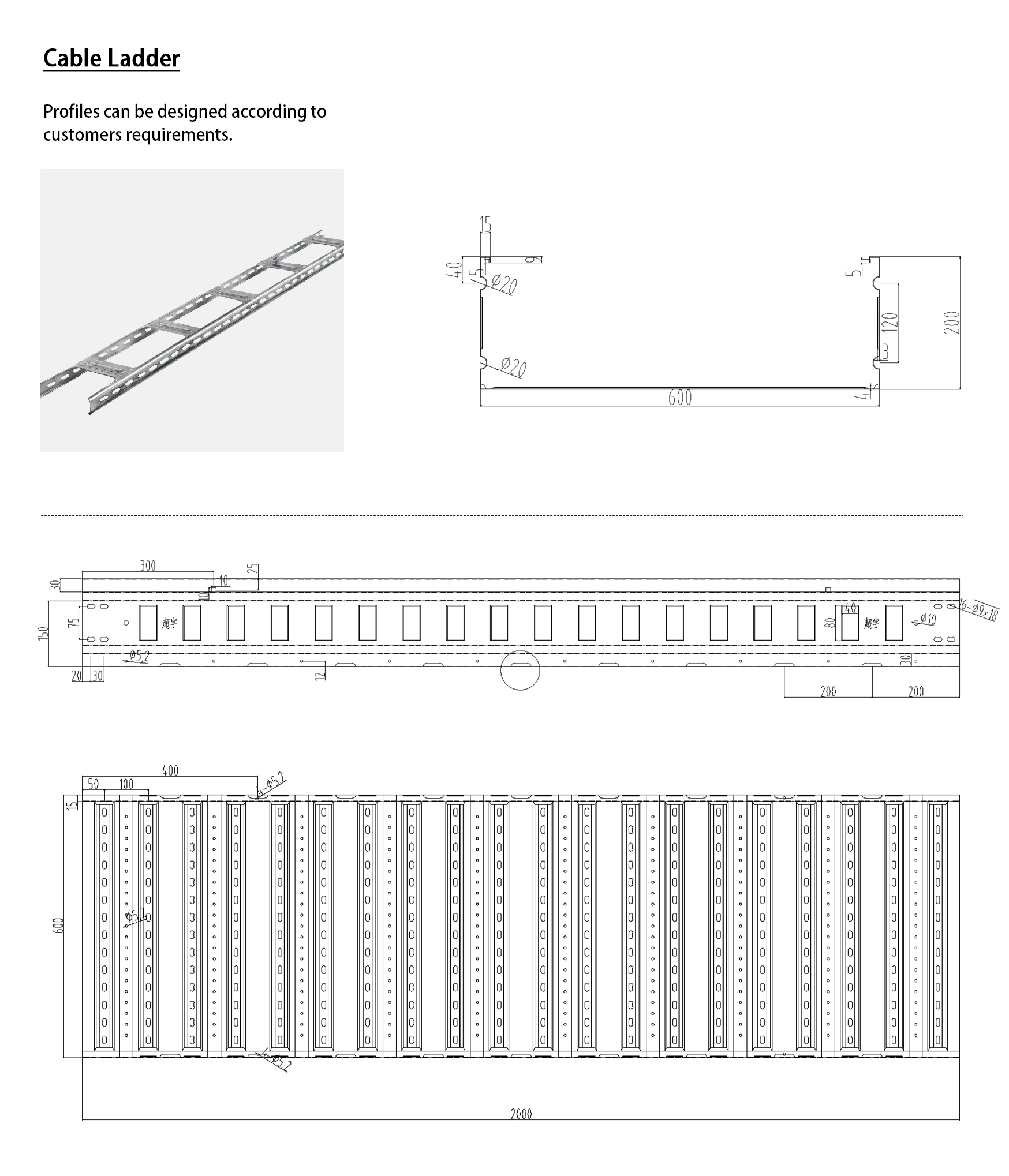

Profile Drawings

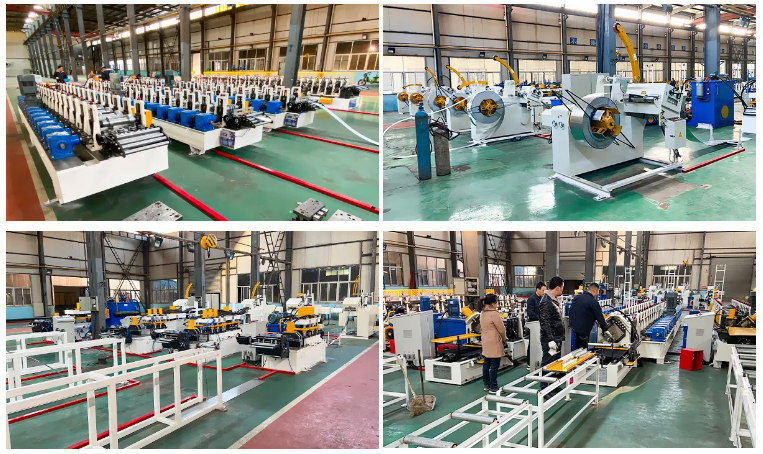

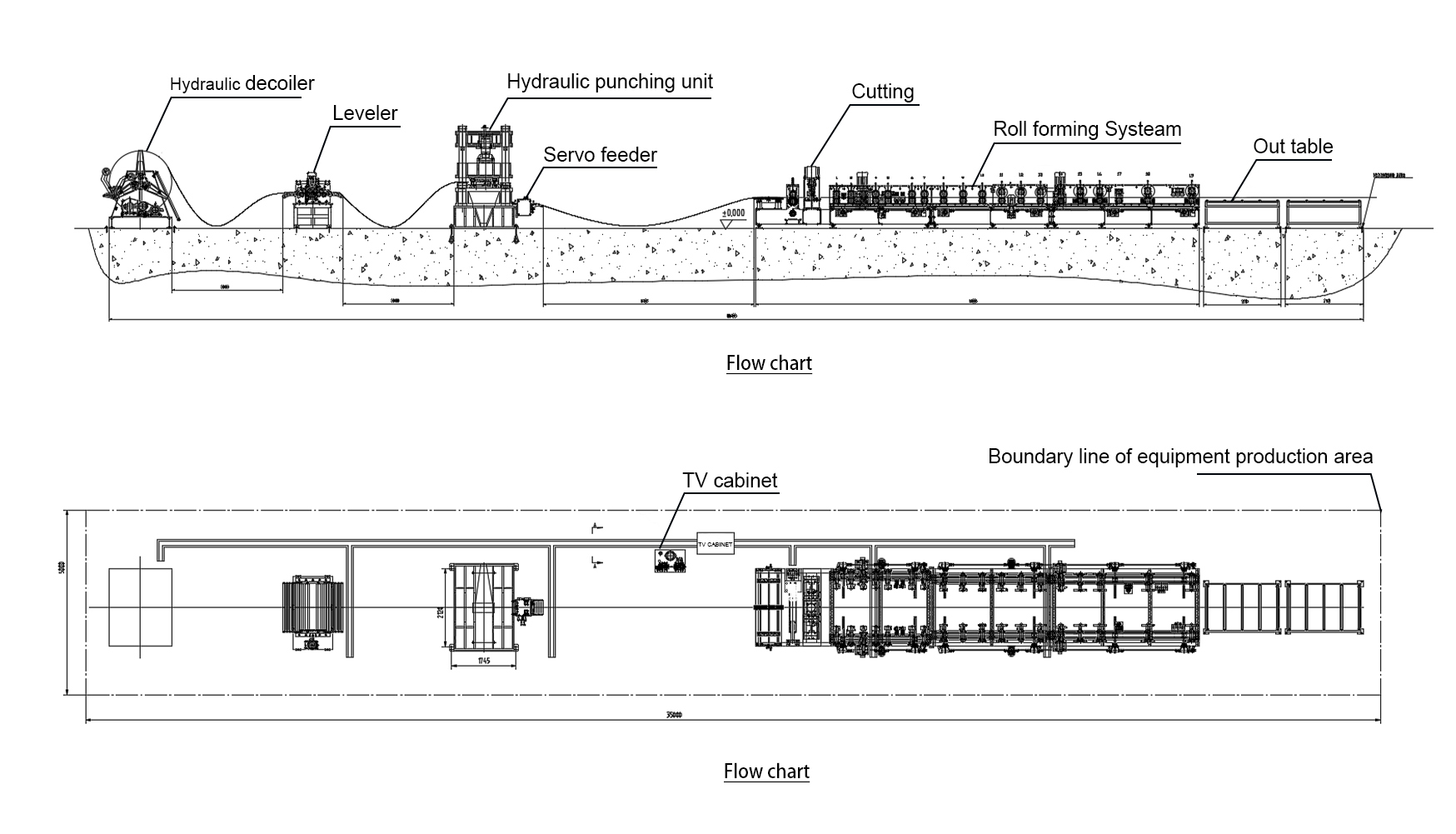

Production Line

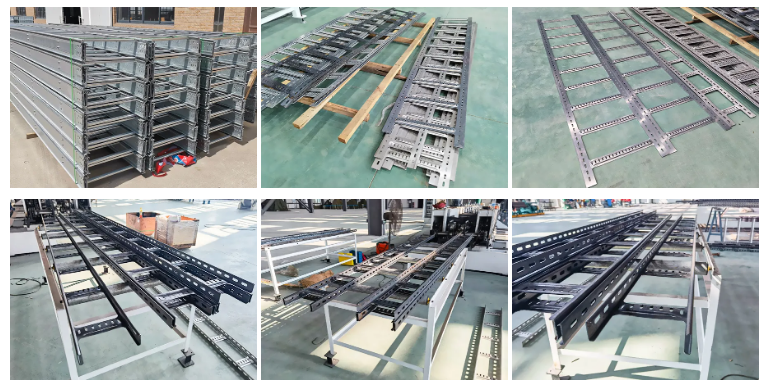

Product Details

Product Paramenters

Cable Ladder Roll Forming Machine
Machinable Material	A) Galvanized Steel	Thickness(MM): 0.6-1.2 or 1-2 even more
	B) PPGI
	C) Carbon Steel
Yield Strength	250 - 550 Mpa
Tensil Stress	G250 Mpa-G550 Mpa
Cable Tray Size	50/100-600mm Or According To Profile Drawings

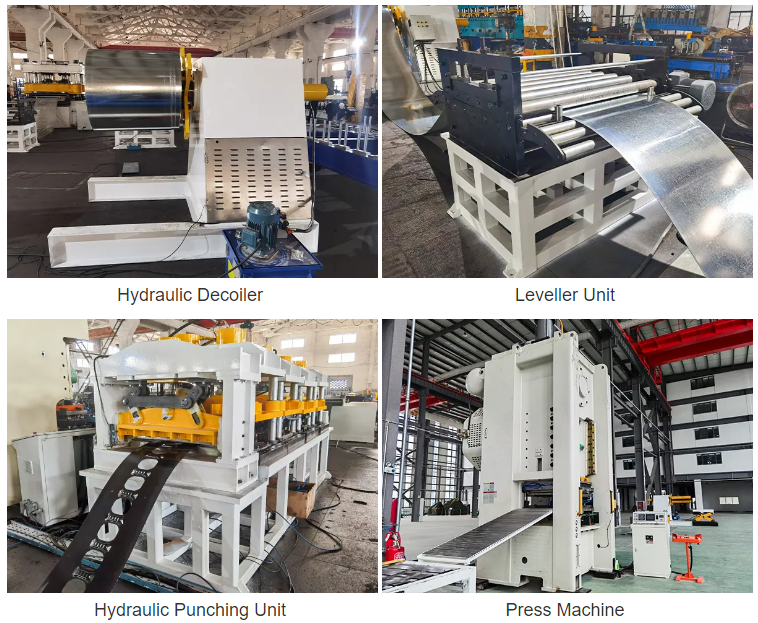

Decoiler	Manual Decoiler	* Hydraulic Decoiler (Optional)
Punching System	Hydraulic Punching Station	* Punching Press (Optional)
Forming Station	20	* According To Your Profile Drawings
Driving System	Chain Drive	* Gearbox Drive (Optional)
Machine Structure	Cantilever Type Adjust The Width And Height Freely	* Forged Iron station (Optional)
Forming Speed	10-20 (M/MIN)	* Or According To Your Profile Drawings
Rollers’ Material	GCr 15	* Cr12Mov(Optional)
Cutting System	Post-cutting	* Pre-cutting (Optional)
Frequency Changer Brand	Yaskawa	* Siemens (Optional)
PLC Brand	Panasonic	* Siemens (Optional)
Power Supply	380V 50Hz 3ph	* Or According To Your Requirment
Machine Color	Industrial Blue	* Or According To Your Requirment

Application

With the features of green, solid, economical, durable, fast easy to install and good looking, double in roll C-shaped steelphotovoltaic bracket and other steel building materials are used more and more widely. It is suitable for various light steelstructure construction, shelves, ceiling frames, and so on.

HOW DOES SUNWAY MACHINERY MAKE INSTALLATION DURING COVID-19?

The installation of roll forming machine online during COVID-19 is for free!

Hereby SUNWAY will explain how we do the installation of our roll forming machine. First, we adjust the machine in our plant, we will ask which size you are going to produce first, we put the machine in the size it is going to produce and adjust all the correct parameters before the shipment, so you do not need to change anything when you got this machine.
Second, when we disassemble the machine for debug, we take videos so that you know how to connect them. It will show how to connect the cables and tubes, put the oils, put together the physical structures etc.
Third, when you receive the equipment, we will build a whatsapp or wechat group, our boss, engineer who design the machine, technician who assembly and calibrate machine and sales all will be in the group to support you in any doubt.
Fourth, we send you a manual in English so that you understand all the meanings of the buttons and how to start the machine.
Finally, SUNWAY has professional oversea engineer who can go to your place to install the machine and train your workers
especially in Middle East and Africa. The engineer can speak English, Arabic.
We have had many successes installing more complex machines in the years since COVID-19. For example
1) CZ automatic exchangeable roll forming machine installed successfully in UAE, Senegal, Cango
2) Roofing sheet roll forming machine installed successfully in Qatar, Bangladesh, Philippines, Turkey, UAE, etc.
3) PU sandwich panel production line installed successfully in Qatar
4) Slitting line installed successfully in Paraguay
5) Cut to length line installed successfully in Turkey.
SUNWAY offers the best quality and the best service for our clients, especially in this situation. You don’t have to wait until
the COVID pass. You can produce the profiles right away with our machines.

Company Profile

WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. It has gained a global sales network.

Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications, slitting machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are widely used in Photovoltaic field.

SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In accordance with High Quality Assurance and Valued Credibility, we provide customers high qualified and reliable products with complete after-sales service. Our company is looking forward to establishing successful and long-term business relationships with all clients around the world in the near future.

FAQ

Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness just for exporting various types of laser machine.

Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.

Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.

Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.

Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Sunway is ALIBABA’s Gold supplier with BV assessment and CE certificate.

Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.

Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
