Highway Guard Rail Cold Roll Forming Machine 3 Waves Guard Rail Sheet Making Machine Building Material Machine

Email: E-mail:sales@wuxisunway.com

Tel: +86-510-83209229

Whatsapp: +86-13616182007

Specification

Product Description

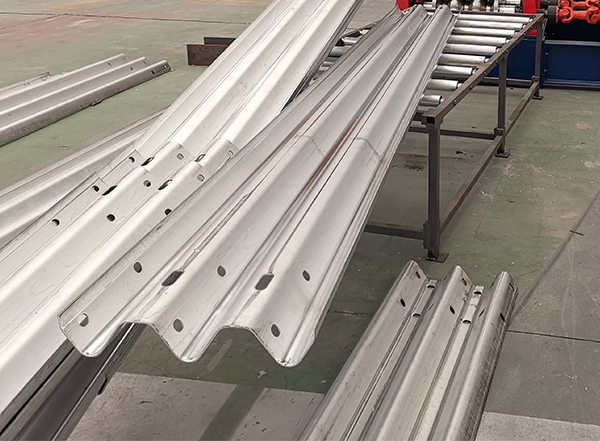

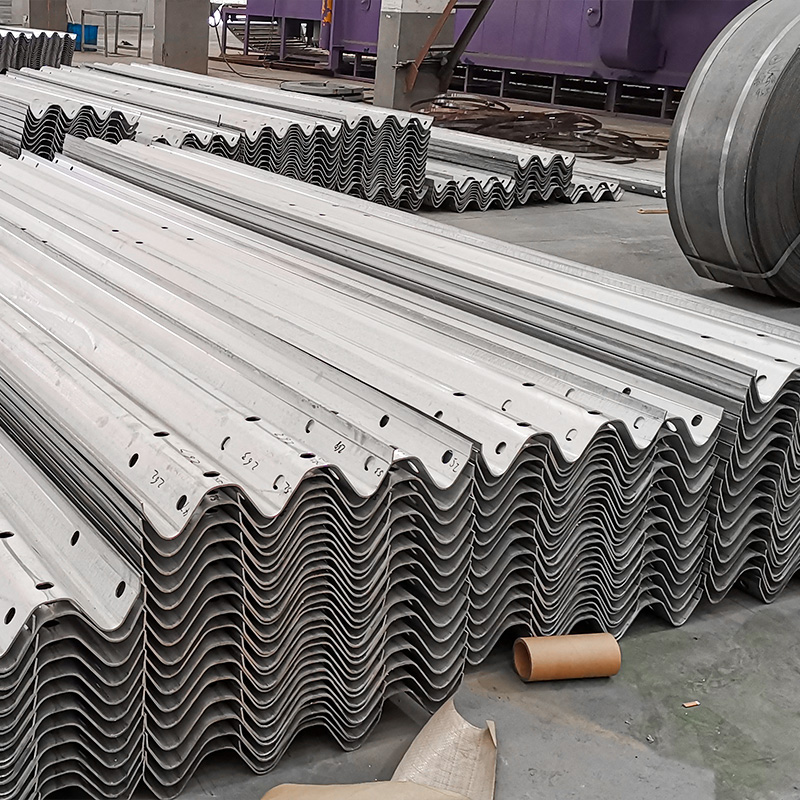

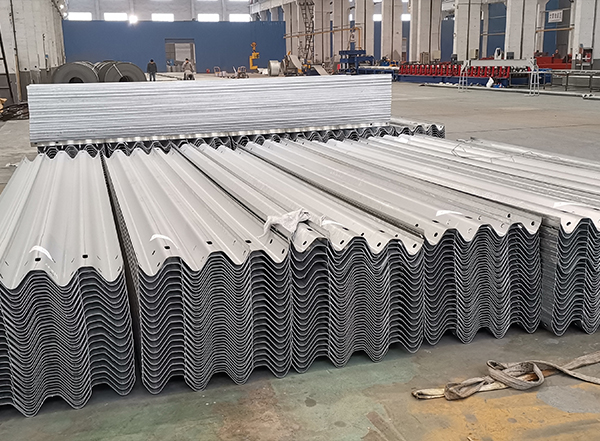

       Highway Guardrail Roll Forming Machine can make W beam guardrail, thrie beam guardrail, also can be designed as two waves or three waves profiles in one machine without change roller stations.         One this page, we will introduce the most popular highway guardrail making machine which is designed as two waves and three waves profiles in one machine, and the guardrail’s thickness is usually 2.7mm-4mm.        Highway guardrails provide a visual and physical barrier between traffic and work areas. It is used for protection against accidents due to lift trucks or other mobile equipment in dock areas, aisles, around special equipment. Reduce costly damage to equipment and inventory. Normally in Highway guardrails project, there would be such machines: two/three wave guardrail roll forming machine, U or C post roll forming machine, Connection punching line, End terminal punching line.        We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

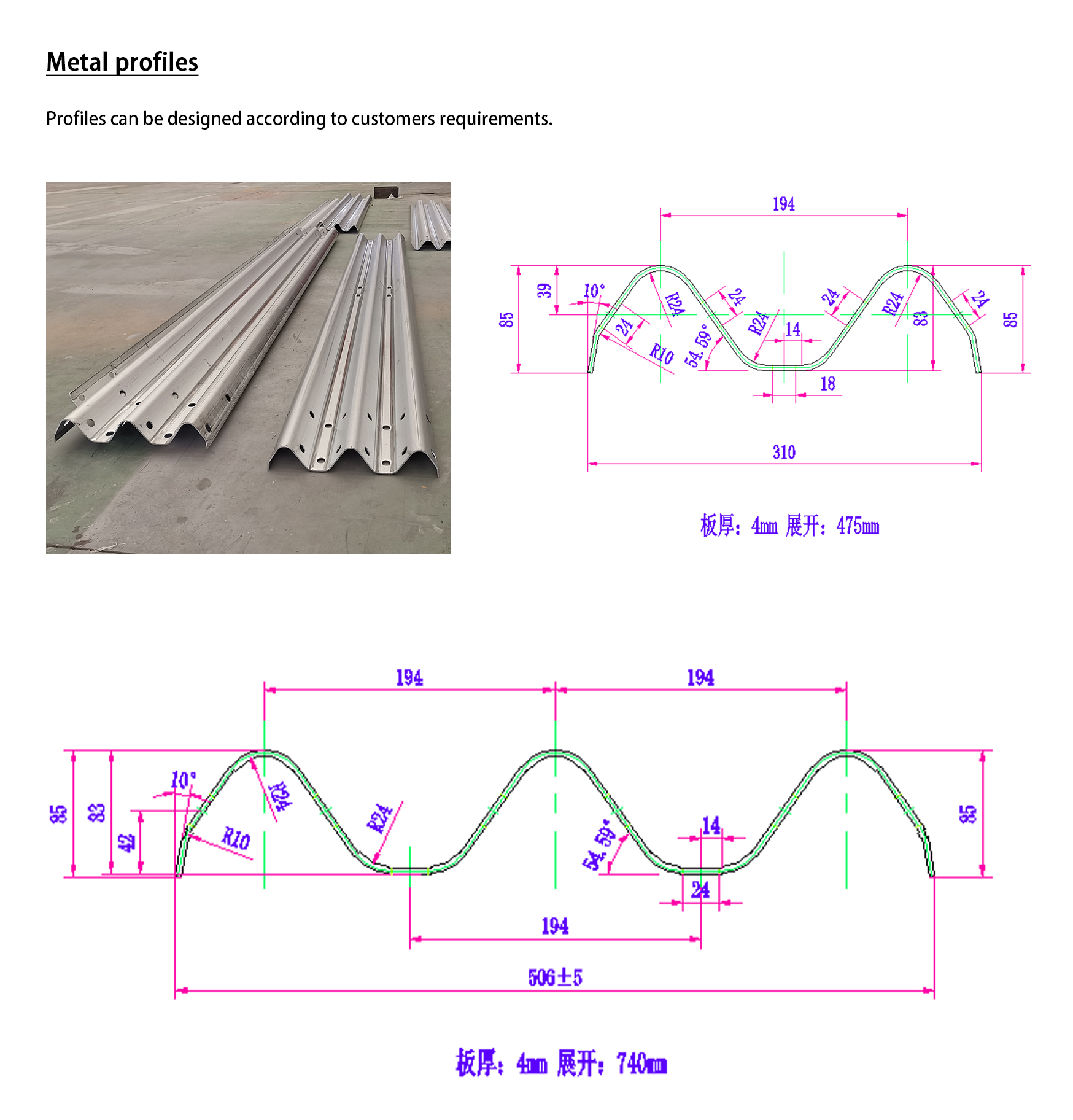

Profile Drawings

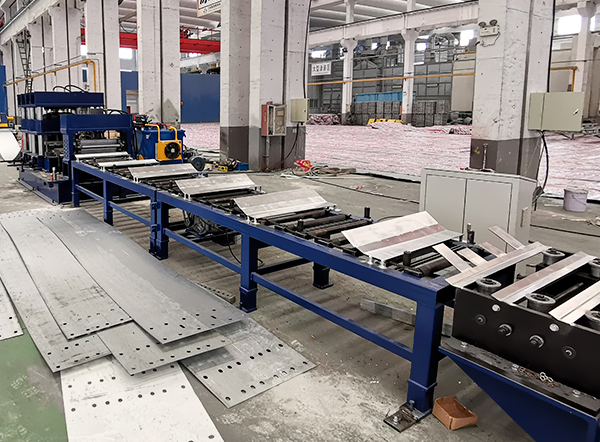

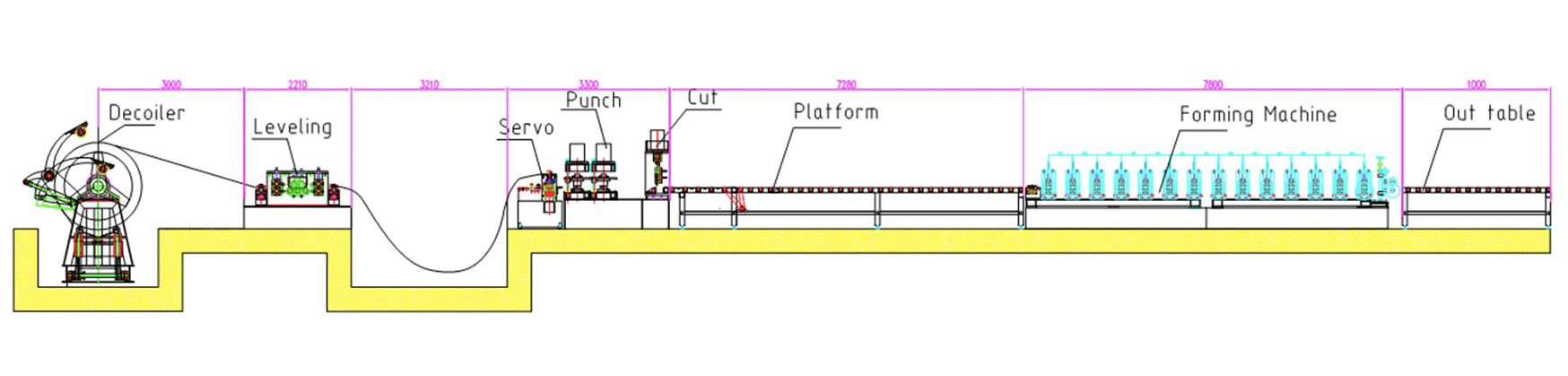

Production Line
Product Details
Hydraulic Decoiler

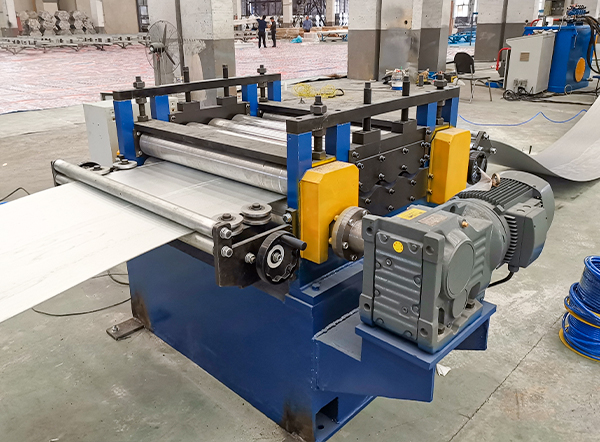

Pinch Roller and Straightener

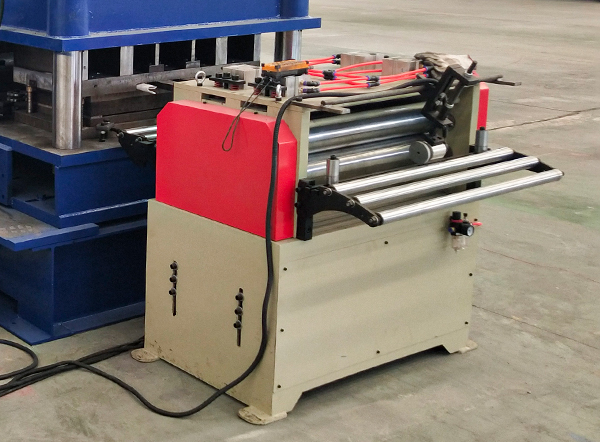

Servo Feeder

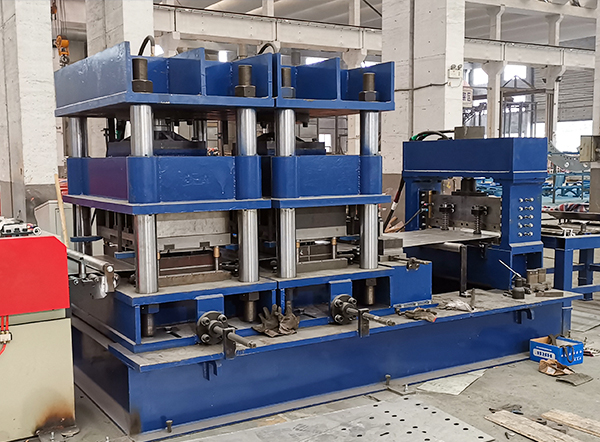

Punching and Cutting Unit
Roller Conveyor

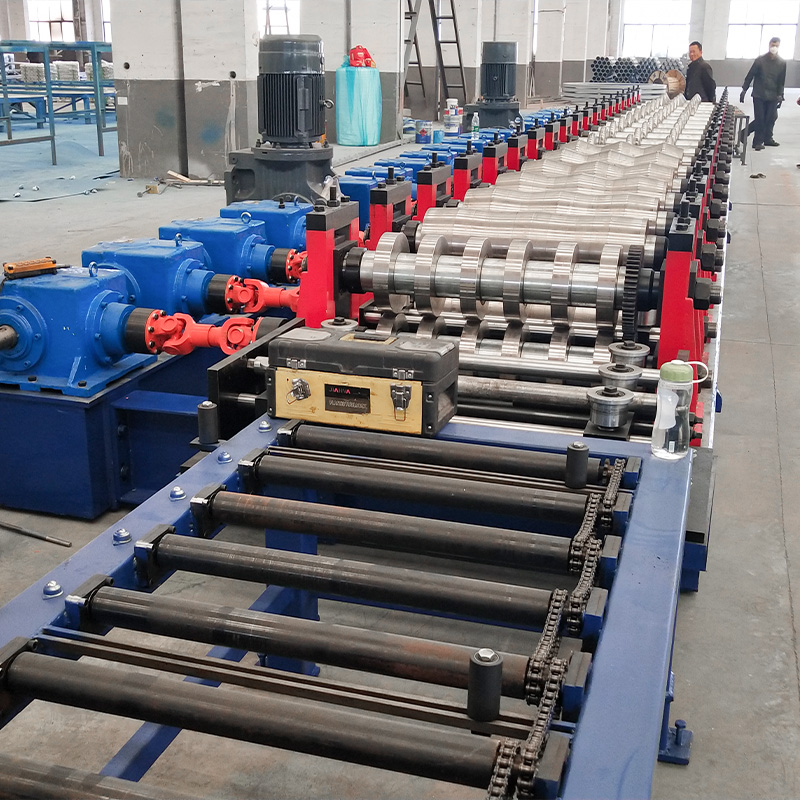

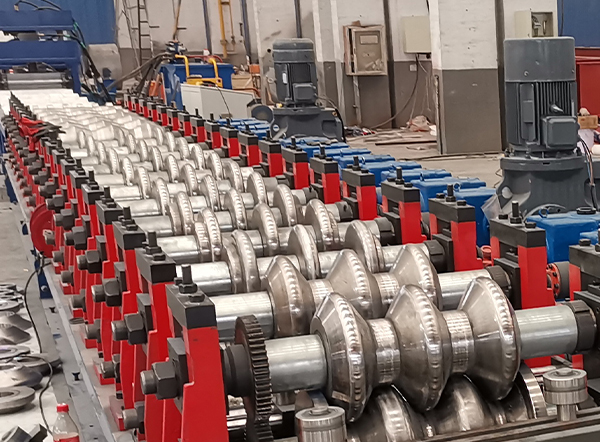

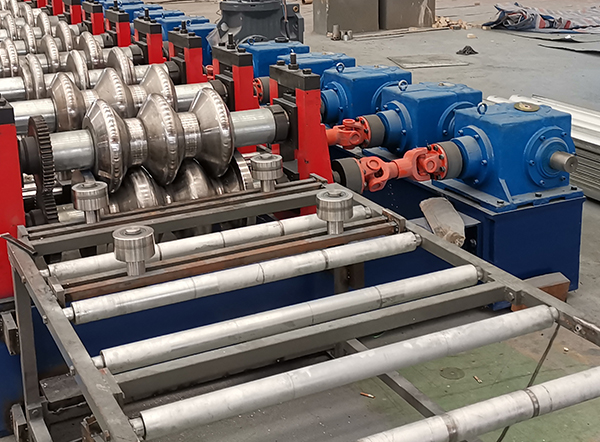

Roll Forming Machine
Output Table

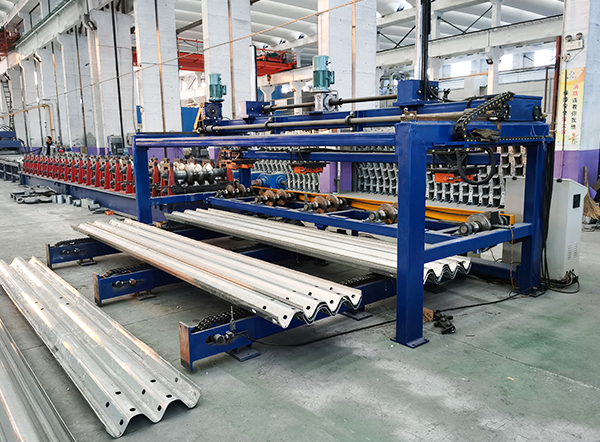

Auto Stacker
Product Paramenters
Highway Guardrail Roll Forming Machine

Machinable Material
A) Galvanized Steel

Thickness(MM): 2.5-4.0 mm

Or According To Customer

B) PPGI
C) Carbon Steel
Yield Strength
250 - 550 Mpa
Tensil Stress
G250 Mpa-G550 Mpa
Guard Rail Type
2 Waves And 3 Waves
Decoiler
Hydraulilc Decoiler

Punching System
Hydraulic Punching Station
* Punching Press (Optional)
Forming Station
About 19+8 Stations
* According To Your Profile Drawings
Driving System
Gearbox Drive
Machine Structure
Forged Iron Station
Forming Speed
0-20 (M/MIN)
Not Including Cutting And Punching
Rollers’ Material
GCr 15
* Cr12Mov (Optional)
Cutting System
Post-cutting
* Pre-cutting (Optional)
Frequency Changer Brand
Yaskawa
* Siemens (Optional)
PLC Brand
Panasonic
* Siemens (Optional)
Power Supply
380V 50Hz 3ph
* Or According To Your Requirment
Machine Color
Industrial Blue
* Or According To Your Requirment

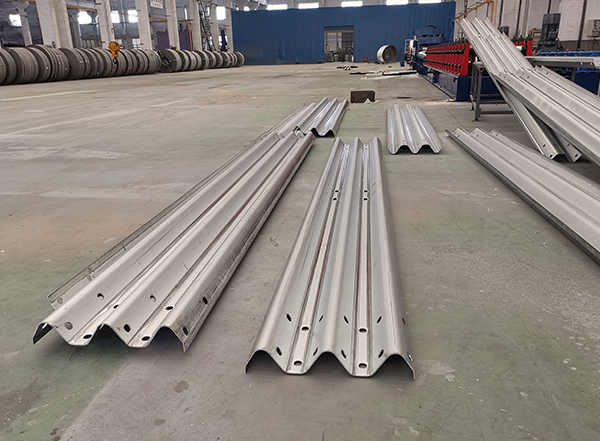

Application
Company Profile
WUXI SUNWAY MACHINERY CO.,LTD is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. It has gained a global sales network.

Our machines feature beautiful appearance, long service life, good performance, simple operation, reasonable price, good quality and so on. Strong technical resources are the most stable guarantee for our products' quality. Our company is specialized in manufacturing different kinds of cold roll forming machines, such as color steel sheet forming machines for roof & wall, C and Z purling machines for steel structure, steel profiles forming machines for professional applications, slitting machines for processing raw material, especially in manufacturing Solar Mounting Bracket Machines which are widely used in Photovoltaic field.

SUNWAY always adhere to Dedication, Unity, Innovation, Win-win situation, as spirit of enterprise. In accordance with High Quality Assurance and Valued Credibility, we provide customers high qualified and reliable products with complete after-sales service. Our company is looking forward to establishing successful and long-term business relationships with all clients around the world in the near future.

FAQ
Q: Are you a manufacturer or trading company?
A:We are factory with professional production team and service consciousness just for exporting various types of roll forming machine.

Q: Do you have after sales support?
A: Yes, we are available online to give guidance and also have skilled technicians to dispatch to customers’ factories.

Q: What's your payment terms?
A: 30% deposit is paid before production, the balance paid after inspection confirmation before shipment.

Q: What can you do if the machine broken?
A: The quality of our machines is very reliable. The warranty is one year after delivery, if some parts are broken, we will send you new ones for free and customer affords the express cost. If some parts are broken out of warranty period, we will sell them at cost.

Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers’ specifications, using famous brand components.

Q: How to visit our company?
A: Fly to Shanghai airport: By high speed train from Shanghai to Wuxi (30 min),then we can pick up you.
